USED 2020 HAAS UMC-1000SS
Overview

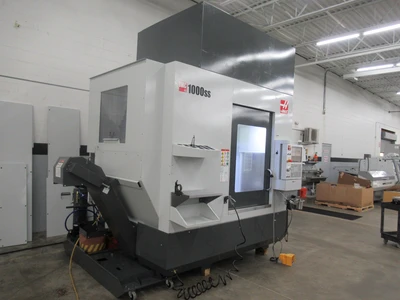

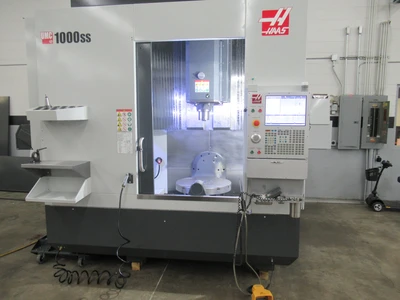

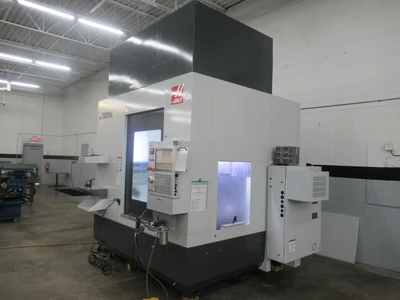

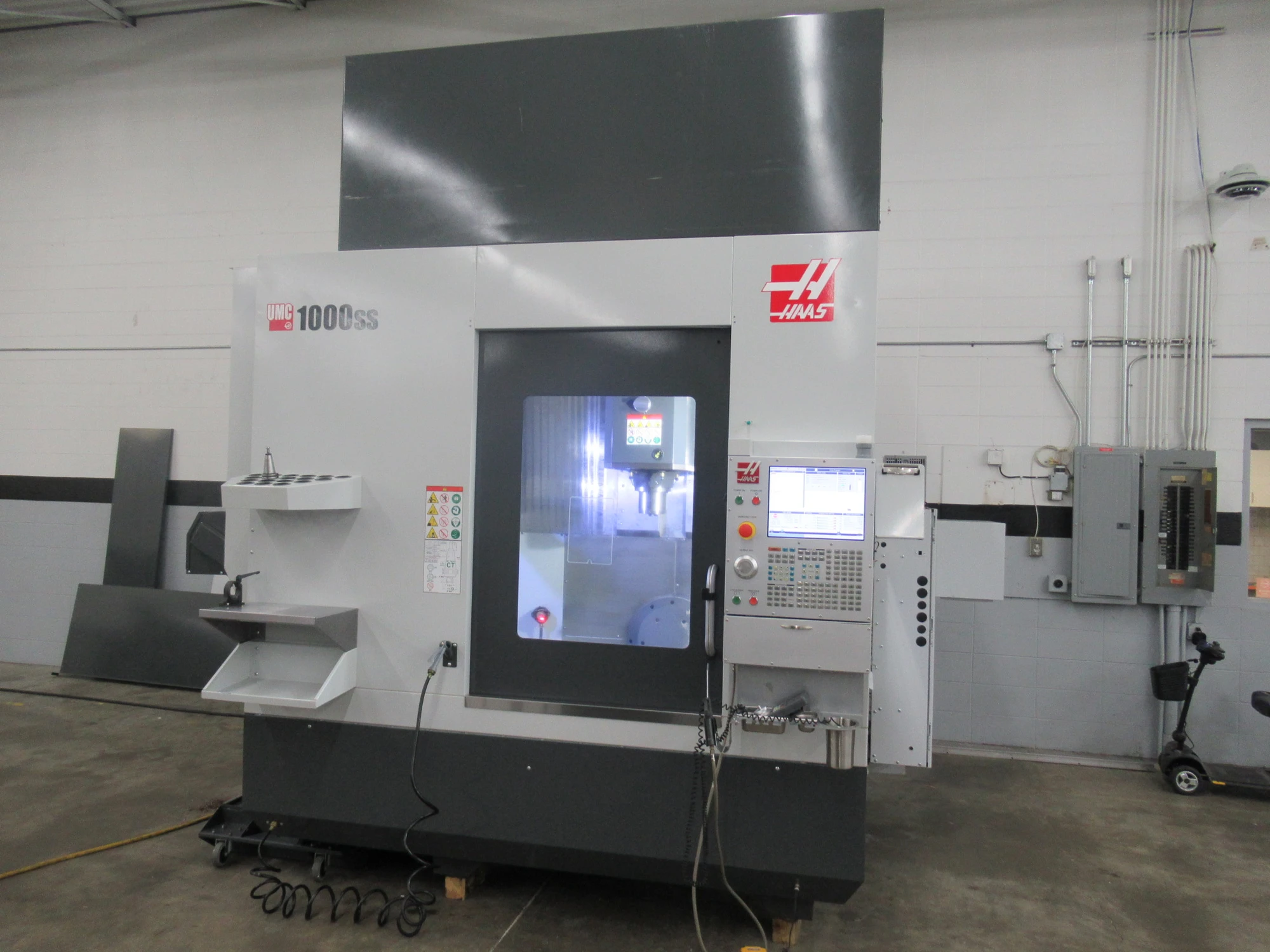

Used Haas UMC-1000SS Super Speed 5-axis CNC universal machining center featuring 40" x 25" x 25" travels. With 25" Diametrer work table. Designed for simultaneous 5-axis machining and 3+2, the UMC-1000SS combines a large work envelope with a high-speed spindle, fast trunnion and side-mount automatic tool changer for efficient machining of complex parts.
Specs

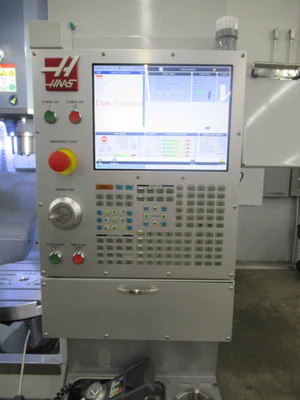

Control:: Haas Next Generation CNC Control
Machine Travels X/Y/Z:: 40" x 25" x 25"
Distance Spindle Nose to Platter:: 4"-29"

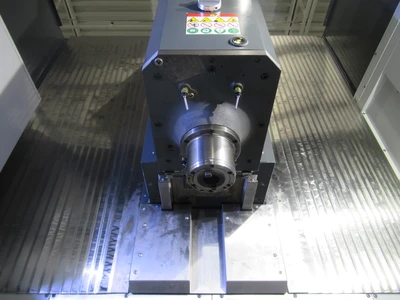

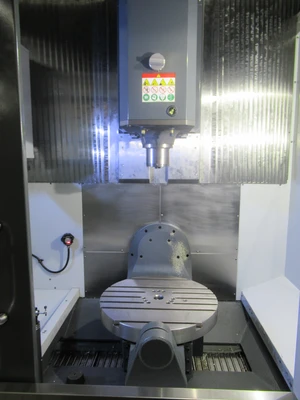

5-Axis Table Style:: Built-in Trunnion Table
5th Axis Swivel (Tilt) Range:: 120 Degrees to -35 Degrees
C-Axis Rotation Travel:: 360 Degrees
C-Axis Max Speed:: 179 Degrees / Second

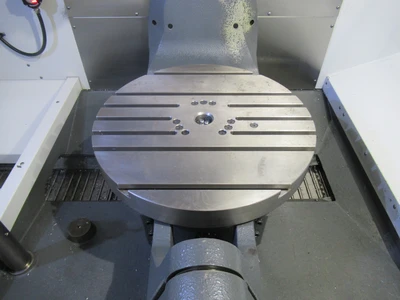

Table Size:: 25" Diameter
Max Part Swing:: 34"
Max Weight on Platter:: 1,000 Lbs.
Rapid Traverse X/Y/Z:: 1,200 IPM
Max Cutting Feedrate:: 833 IPM
Spindle Speeds:: 12,000 RPM Max Spindle Speed
Spindle Taper:: CT40 Spindle Taper

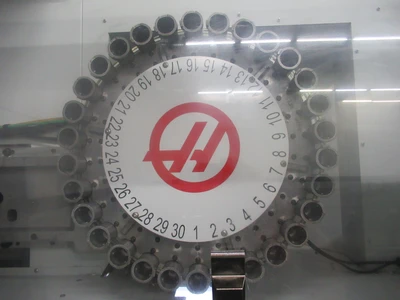

Tool Changer Capacity:: 30+1 Stations
Tool Change Time:: 1.8 S Tool-to-Tool / 2.4 S Chip-to-Chip
Max Tool Length:: 12" (from Gage Line)
Max Tool Diameter Full / Adjacent Empty:: 2.5" / 5.0"
Max Tool Weight:: 12 Lbs.
Spindle Drive System:: Inline Direct-Drive
Spindle Drive:: 30 HP Vector Spindle Drive
Coolant Capacity:: 55 Gallons
Equipped With

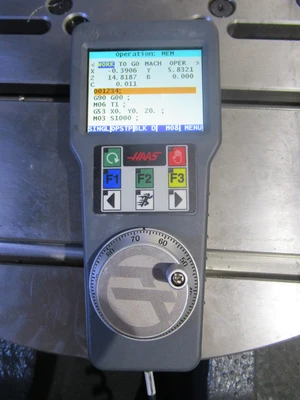

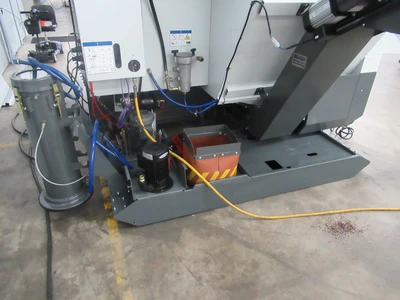

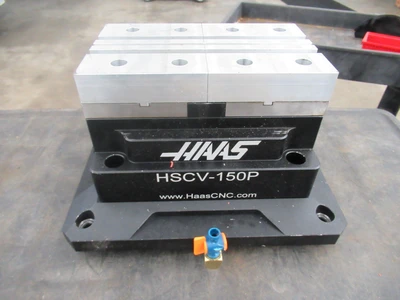

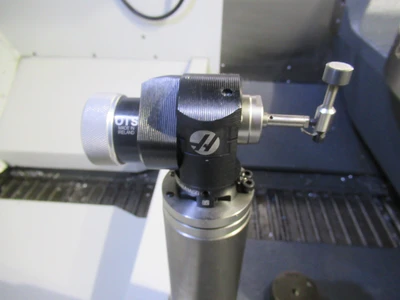

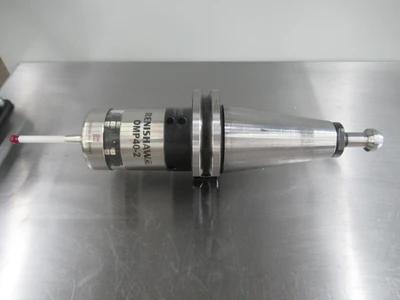

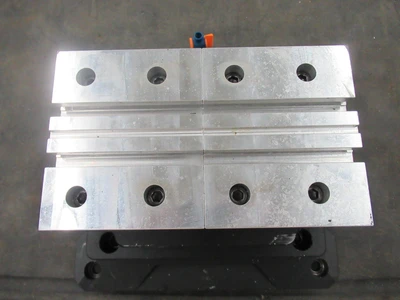

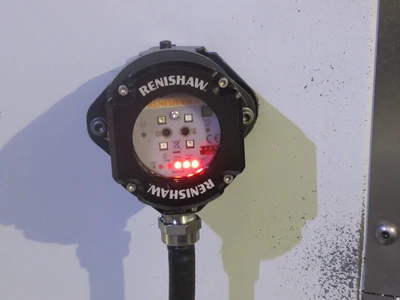

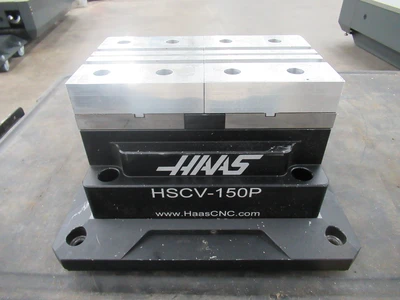

Haas Next Generation CNC Control, CT 40 Spindle Taper, 12,000 RPM Max Spindle Speed, 30 Station Twin-Arm Automatic Tool Changer, Dynamic Work Offset and Tool Point Center Software, High Speed Machining, Haas Probing System with Renishaw Tool and Parts Probes, 300 PSI Thru-Spindle Coolant, Chip Conveyor, Remote Jog Handwheel, Coolant Pump and Tank, Pneumatic Work Clamping System with Haas HSCV-150P Air Vise
