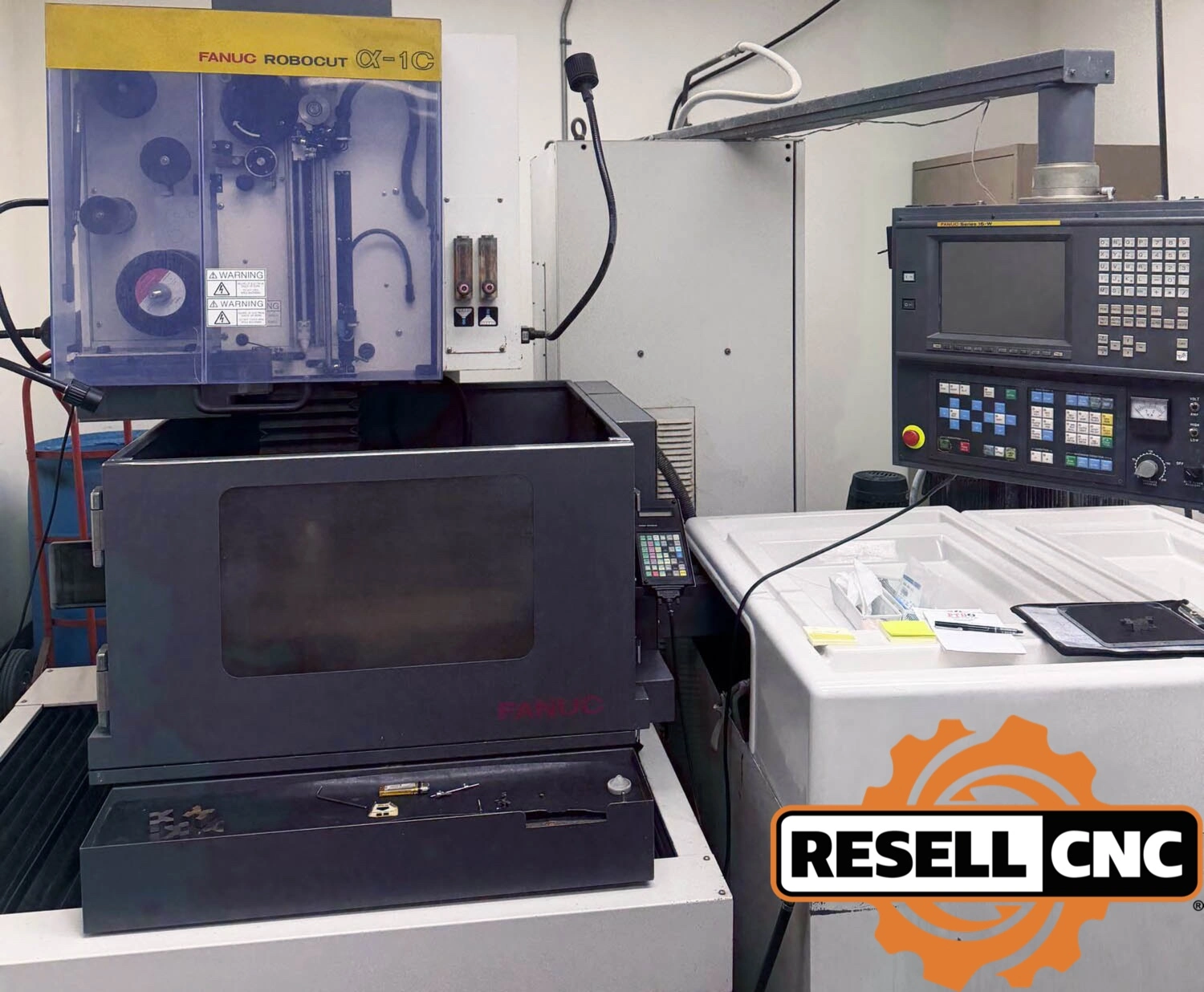

USED 1997 Fanuc Robocut Alpha-1C-S

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Type: 5-Axis Submersible CNC Wire EDM

Auto Wire Threading (AWT)

Controlled Axes: X, Y, U, V, Z (5-Axis)

Max Workpiece Dimensions (X/Y/Z): 31.10" x 28.74" x 10.83"

Max Workpiece Weight: 1,430 lbs (650 kg) / 990 lbs (450 kg) Submerged

X-Axis Travel: 20.47"

Y-Axis Travel: 14.56"

Z-Axis Travel: 11.81"

U/V Axis Travel: +/- 2.364"

Taper Angle: +/- 15 deg @ 7.98" / +/- 30 deg @ 3.26" / +/- 45 deg @ 1.93"

Wire Diameter Range: 0.004" to 0.012"

Wire Feed Rate: 0 to 590 IPM

Wire Tension: 200 to 2,500 grams

Max Wire Spool Weight: 13.5 lbs

Wire Guides (Upper & Lower): Round Diamond Die Guide

Rapid Traverse: 35.4 IPM

Cutting Feed Rate: 0.0004 to 1 IPM

Wire Dia. Compensation: 0 to +/- 9.99999"

Least Input/Command Increment: 0.000004"

Max Programmable Dimension: 999.99999"

Position Command: Relative, Absolute & Machine

Interpolation: Linear & Circular

Display Unit: 9.5" Color LCD, 5-Axis Position Display

Required Floor Space: 120" x 122" x 87.5"

Approximate Machine Weight: 9,500 lbs

Wire Reclamation Bin

Full Set of Manuals

"Ebbco" Filtration System

"Remcor" Chiller Unit



*Made in Japan*
B Axis: false
C Axis: false
Control Make Model: Fanuc 16W-C CNC
Cutting Feed Rate: 0.0004 - 1 IPM
Edm Tank Capacity: 530 L
Edm Type: Wire
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 1430.0
Max Workpiece Weight: 1430.0
Programmable Tailstock: false
Rapid Traverse: 35.4 IPM
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 39.1" x 28.7
X Travel: 20.47
Y Axis: false
Y Travel: 14.56
Z Travel: 11.81
