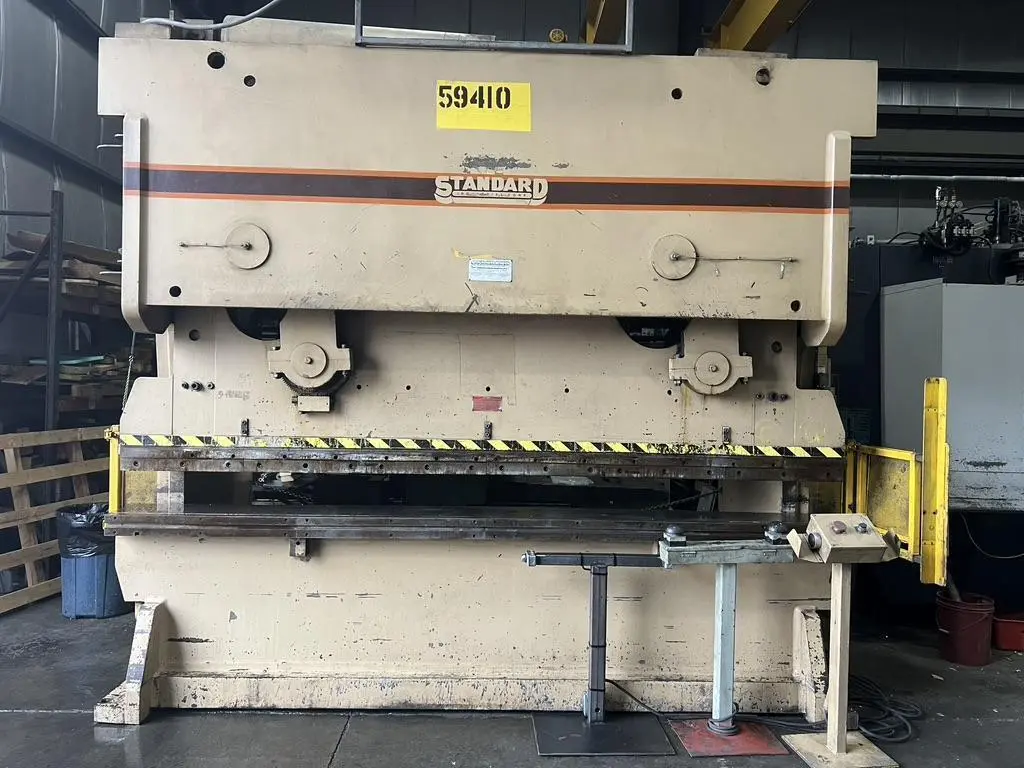

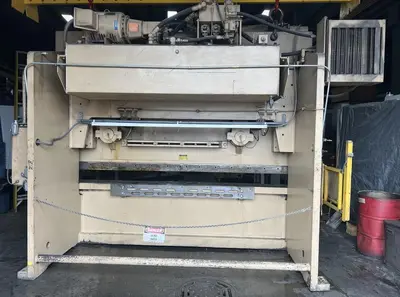

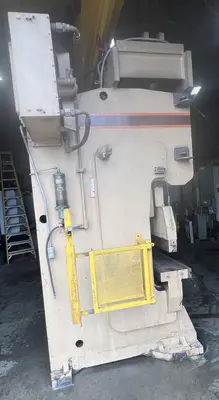

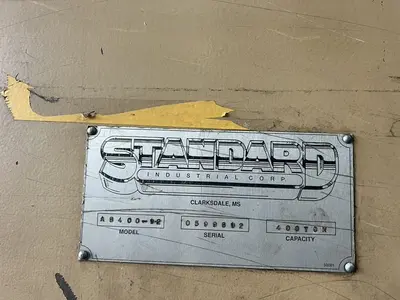

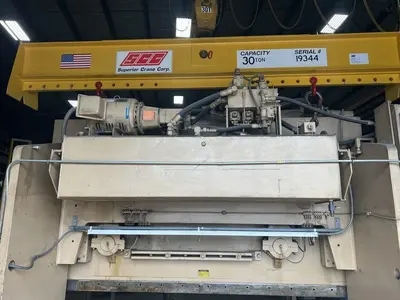

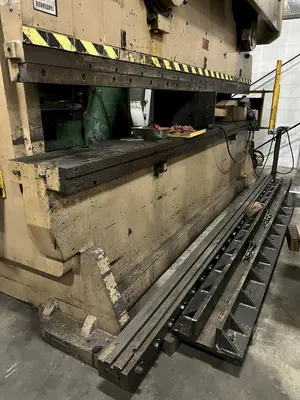

USED 1998 STANDARD INDUSTRIAL AB400-12

Specifications:

Capacity:

Forming: 400 Tons

Punching: 265 Tons

Bed/Ram Length: 12′

Between Frames: 10′ 5″

Open Height: 20″

Stroke: 10″

Closed Height: 10″

Throat Depth: 10″

Standard Features:

Full-tonnage throughout stroke

Solid, non-moveable lower beam substantially more rigid than “bed level” press brakes

Off-center loading capability

The most heavy duty press brake built in the USA

Extremely heavy duty lower beams allowing the least amount of deflection. Less deflection = longer tool life = more profitability

All parts will be readily available for a lifetime from anywhere in the USA

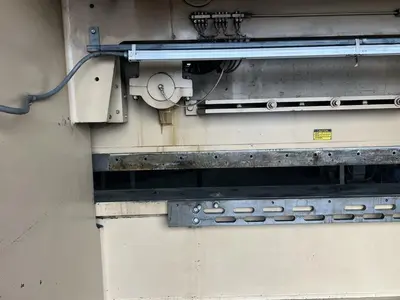

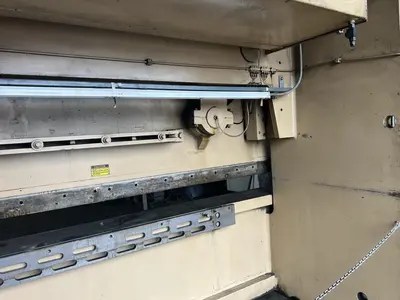

The in-line depth stop ensures no down-time due to computer failure

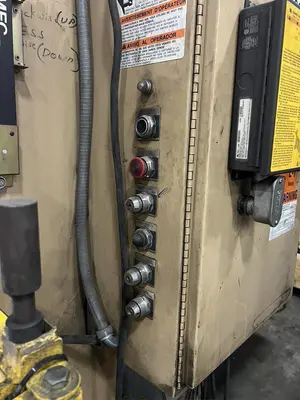

Dual palm buttons

Flush Floor Mount (No pit required)

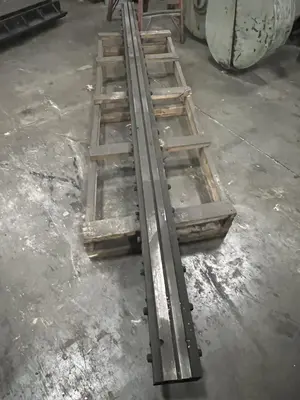

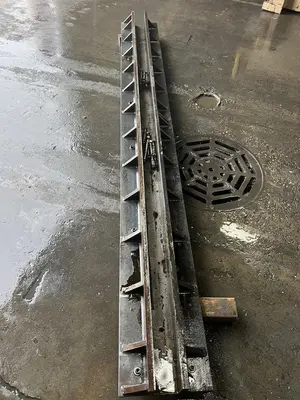

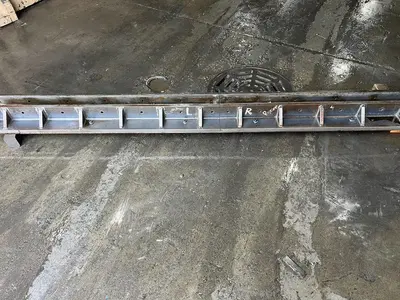

Includes 10' x 13.5" Face Angle brackets for the Ram

Mechanical Specifications:
