USED HWACHEON MEGA-95

Specifications:

Swing 49"
Machining Length 128"
# Axis 2
Chuck Size 24"
Bar Capacity 6"
Power 30 hp
Max RPM 100 RPM

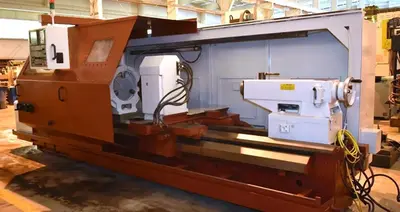

Hwacheon Mega-95 48" x 10' CNC Lathe

Capacity & Swing Dimensions

• Maximum Swing Over Bed: 38.5" (978 mm)
• Swing Through Gap: 48.4" (1,229 mm)
• Swing Over Cross Slide: 26.2" (665 mm)
• Distance Between Centers: 118" (3,000 mm / 10 ft)
• X-Axis Travel: 19.09" (485 mm)
• Z-Axis Travel: 118" (3,000 mm)

Spindle & Drive Specifications

• Spindle Bore (Hole Through Spindle): 6" (152 mm)
• Spindle Nose: A2-15
• Spindle Speed Range: 40 to 1,000 RPM
• Main Spindle Motor: 30 HP (22.4 kW)
• Standard Chuck Size: 24" 3-jaw hydraulic chuck (optional/alternate configurations like 18" 4-jaw or 800 mm SMW Autoblock exist)

Turret & Tooling

• Turret Stations: 12-position hydraulic tool holding turret (some variants feature 8 or 12 stations)
• Live Tooling / Sub-spindle: Not equipped (standard 2-axis configuration)

Tailstock & Feed Rates

• Tailstock Quill Travel: 10.2" (259 mm)
• Rapid Traverse Rate: 236 IPM
