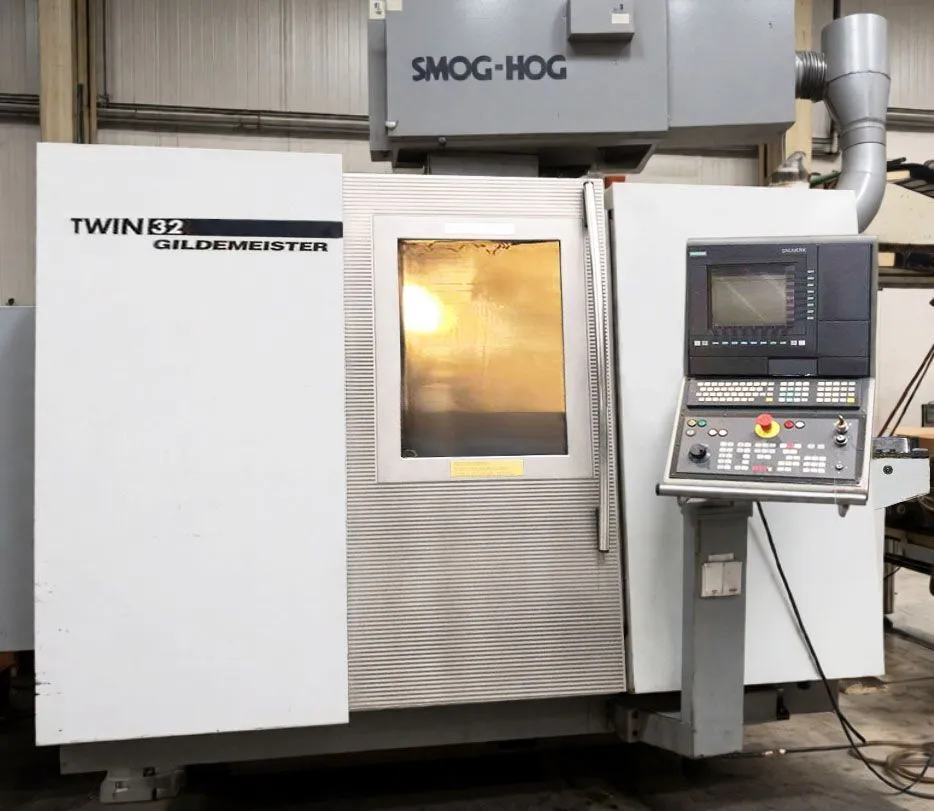

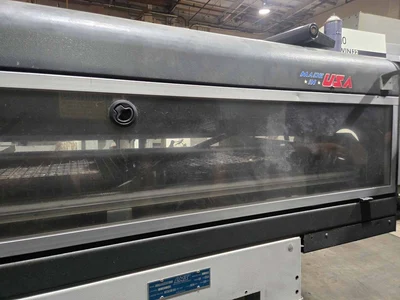

USED 2002 GILDEMEISTER Twin 32
Overview
FEATURES

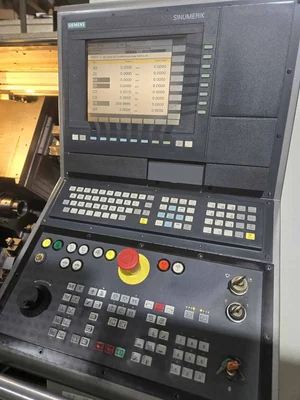

SIEMENS CNC control

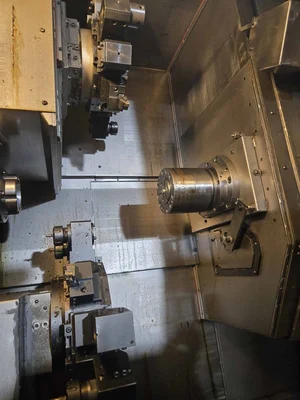

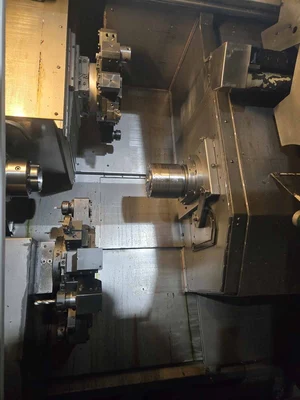

Dual spindle
Collet chuck on main and sub-spindle
Number of controlled axes: 9
C-axis
Y-axis in upper turret

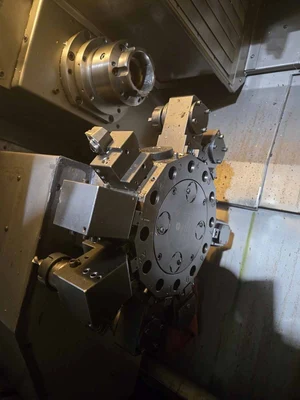

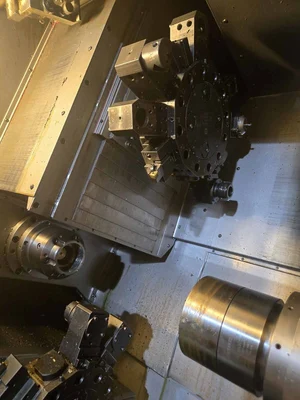

2 SAUTER turrets with 12 tool positions (driven), VDI 25
Tool drive with a speed range of 30 to 6000 rpm

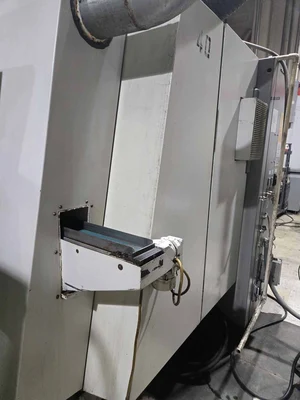

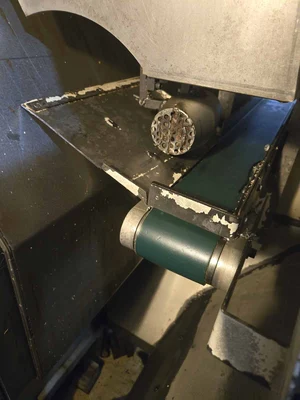

Parts Conveyor
Coolant system
Chip conveyor
Smog Hog
LNS Quick Load Servo S3 Bar loading machine
SPECIFICATIONS
CAPACITY
Distance between spindle nose 580mm
Swing over cross slide 100mm
Swing over bed 145mm
Spindle hole 50mm
Turning diameter 100mm
Bar diameter with collet 36mm
Spindle speeds 40 - 8000 rpm
Spindle motor 26 / 21 kW
CARRIAGE 1
Longitudinal travel, X-axis 320mm
Traverse travel, Z-axis 220mm
CARRIAGE 2
Longitudinal travel, X-axis 345mm
Cross travel, Z-axis 120mm
TURRET 1
Number of tool positions 12
Driven tool positions 12
Spindle speeds 30 - 6000 rpm
Power of driven tools 2.1 kW
Collet bore 36mm
MISC
Machine weight 5300 kg
Machine dimensions 3910 x 2340 mm
Machine height 1985mm

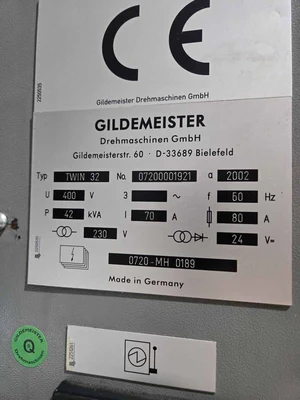

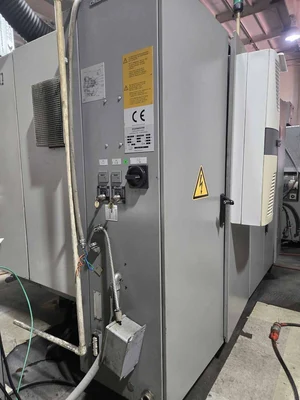

Electrical power requirement 40 kVA
Specs
Equipped With
SIEMENS CNC control
Dual spindle
Collet chuck on main and sub-spindle
Number of controlled axes: 9
C-axis
Y-axis in upper turret
2 SAUTER turrets with 12 tool positions (driven), VDI 25
Tool drive with a speed range of 30 to 6000 rpm
Parts Conveyor
Coolant system
Chip conveyor
Smog Hog
LNS Quick Load Servo S3 Bar loading machine
