USED 2006 DOOSAN PUMA 2500 LY
Overview

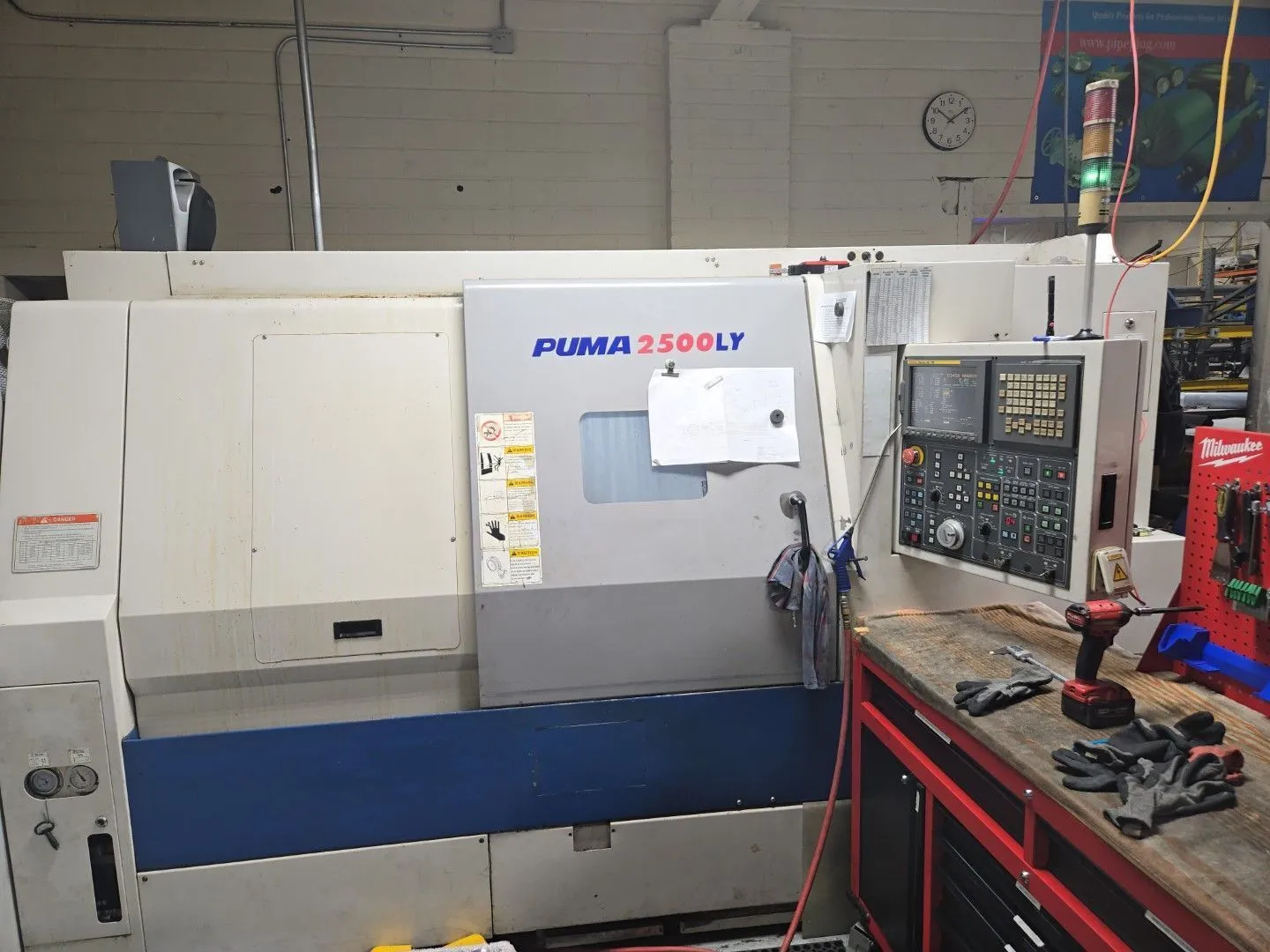

2006 DOOSAN PUMA 2500 LY CNC Turning Center W/ "Y" Axis Live Tooling and Tailstock. Machine is in very good condition and can be inspected under power as needed. Machine includes: 10" chuck, Fanuc CNC control, tool presetter, and chip conveyor.
Specs
Specification Capacity
CNC control Fanuc 18i-TB
Swing over bed 23.62"
Swing over saddle 21.65"
Maximum turning diameter 13.0"
Maximum turning length Approximately 29.5"
Chuck size 10" hydraulic
Bar capacity 3.0"
Spindle bore Approximately 3.38"
Spindle nose A2-8
Maximum spindle speed 3,500 RPM
Main spindle motor 30 HP peak / 20 HP continuous
X-axis travel 9.84"
Y-axis travel 3.94" total, ±1.97"
Z-axis travel 32.67"
C-axis indexing 0.001°
Turret 12 stations
Live-tool speed 5,000 RPM
X / Z rapid traverse 787 / 945 IPM
OD tool shank 1"
Boring-bar capacity Approximately 1.57"
Equipped With
10" Chuck
Tool Presetter
"Y" Axis Live Tooling
Programmable Tailstock
Fanuc CNC Control
4) X Axis Live Toolholders
3) Z Axis Live Tooloolders
