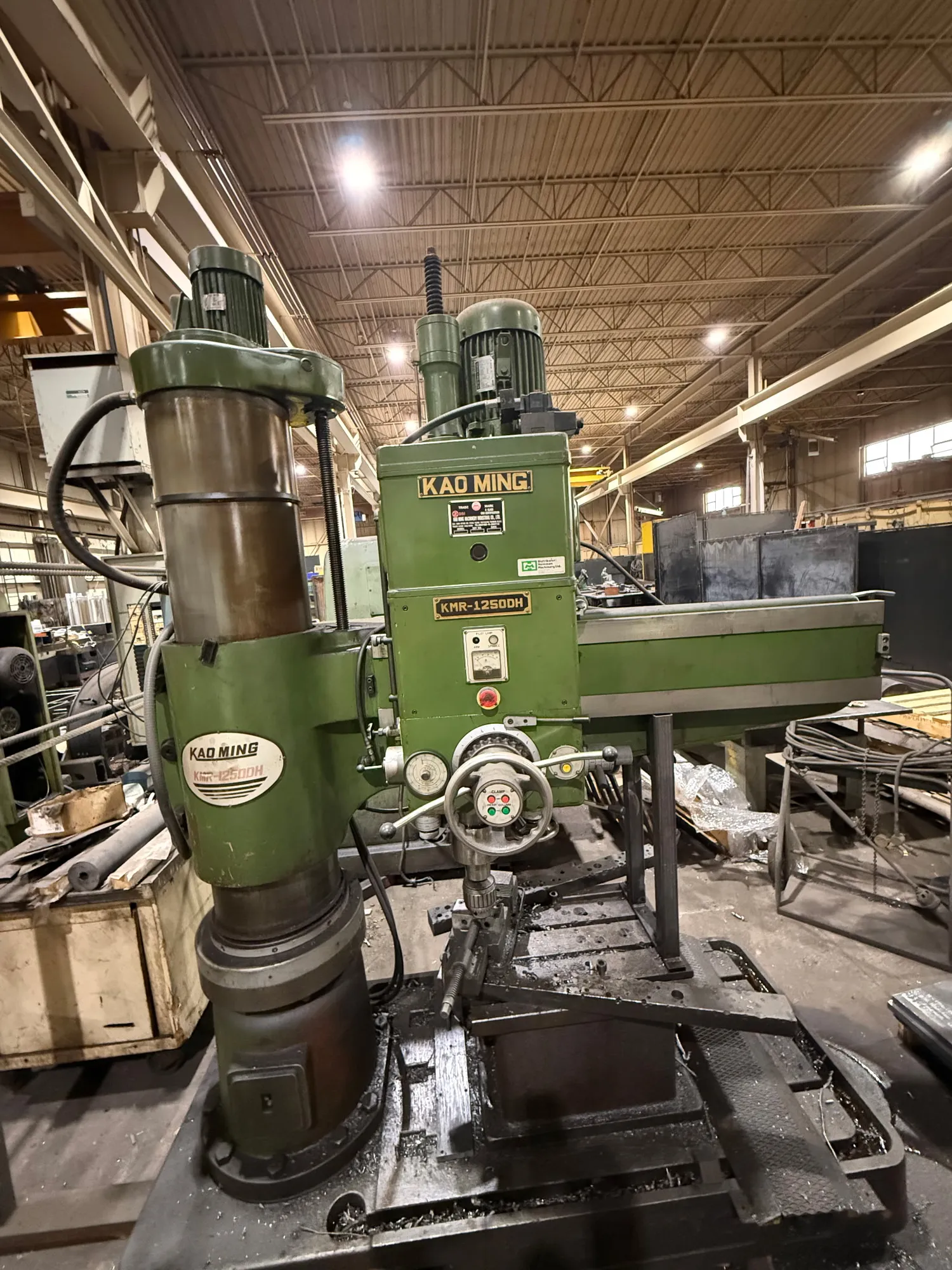

USED 1987 KAO MING KMR-1250DH

Specification Capacity / Size
Drilling capacity — steel 2" (50 mm)
Drilling capacity — cast iron 2.36" (60 mm)
Spindle taper No. 5 Morse taper
Main spindle motor 5 HP
Spindle speeds 12 speeds, 25–1,310 RPM
Power feeds 12 feeds, 0.06–1.12 mm/revolution
Spindle travel 11.81" (300 mm)
Maximum spindle center to column face 49.21" (1,250 mm)
Minimum spindle center to column face 14.17" (360 mm)
Head travel along arm 35.04" (890 mm)
Vertical arm travel 27.56" (700 mm)
Spindle nose to base 13.78"–53.15" (350–1,350 mm)
Column diameter 13.78" (350 mm)
Base working surface 54.84" × 32.28" (1,393 × 820 mm)
Approximate floor space 91.93" × 44.88" (2,335 × 1,140 mm)
Approximate height 105.71" (2,685 mm)
Approximate net weight 7,628 lb (3,460 kg)
