USED Omron CJ2H-CPU64-EIP

Omron CJ2H-CPU64-EIP SYSMAC PLC CPU EtherNet/IP USB Tested Working

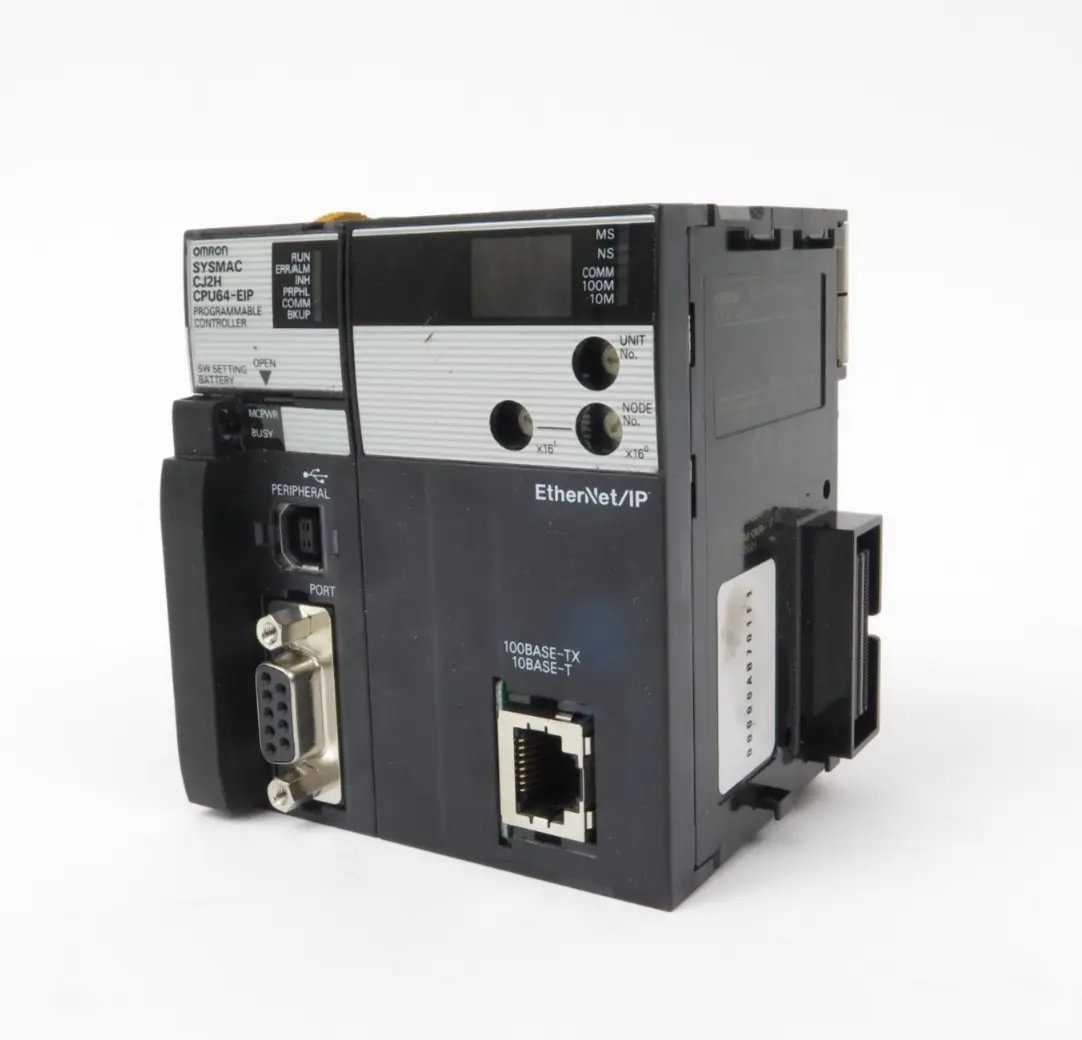

Omron CJ2H-CPU64-EIP high-performance SYSMAC CJ2H PLC CPU with built-in EtherNet/IP.
This CPU was used as the primary controller for our in-house testing of multiple Omron CJ-series I/O modules.
The processor was connected to a PC through its USB programming port using CX-Programmer. Communication was established successfully, the rack I/O table was created, PROGRAM and MONITOR operating modes were accessed, and installed CJ-series modules were recognized.
The CPU was then used to test individual digital inputs and outputs on compatible CJ1W modules, including forcing output points through CX-Programmer.
A CJ1W-TER01 End Cover was installed during testing as required for normal CJ-series rack operation.
Specifications
Brand: Omron
Model: CJ2H-CPU64-EIP
Series: SYSMAC CJ2H
Type: PLC CPU Unit
Program Capacity: 50K steps
Maximum I/O: 2,560 points / 40 units
Network: Built-in EtherNet/IP
Ethernet: 10Base-T / 100Base-TX
USB: USB 2.0 Type-B peripheral port
Serial: RS-232C
Power Requirement: Supplied from compatible CJ-series rack power supply
Testing Performed
CPU powered successfully
USB communication with PC verified
Connected successfully using Omron CX-Programmer
PROGRAM mode verified
MONITOR mode verified
I/O table created successfully
Connected CJ-series modules recognized
Used to test digital input modules
Used to force and test digital output modules
Rack operated without CPU fatal error once properly assembled
Dimensions
4.0" x 4.0" x 4.0" (1 lbs)

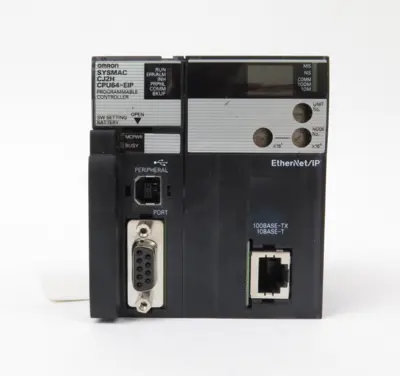

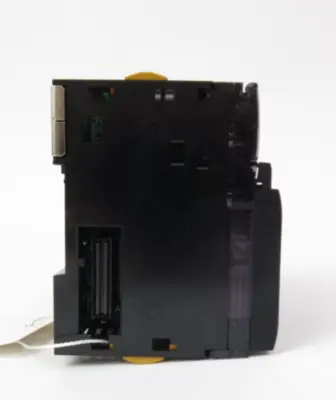

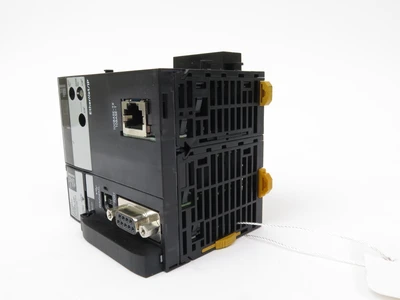

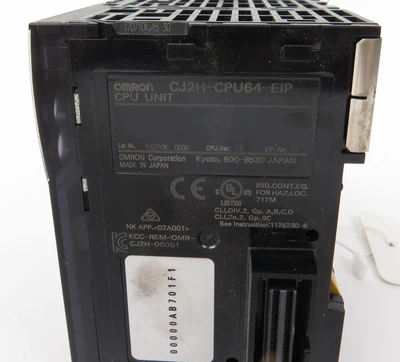

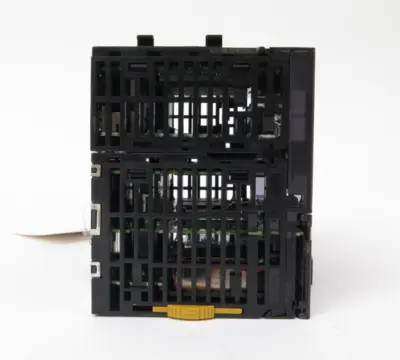

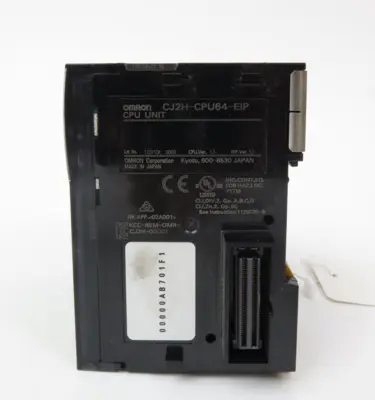

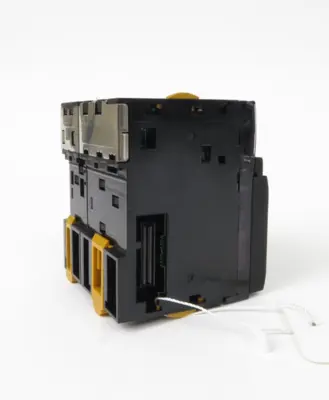

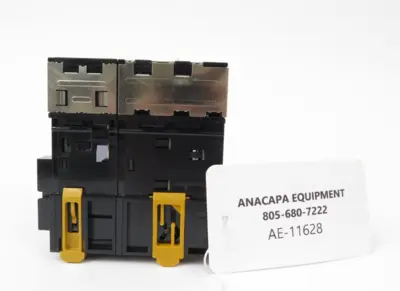

Comes from a professional working environment. Pulled from a working system. In great cosmetic condition (see pictures). The CPU was installed in a CJ-series rack with an Omron CJ1W-PD025 24VDC power supply and CJ1W-TER01 End Cover. It powered normally and communicated with a PC using Omron CX-Programmer through the USB port. The CPU was placed into PROGRAM and MONITOR modes during testing. The I/O table was created and multiple CJ-series input and output modules were recognized and functionally tested through this CPU. Testing confirms the CPU powers, communicates with CX-Programmer, recognizes rack modules, and supports normal PLC operating-mode changes. See pictures. See description for full specs.
