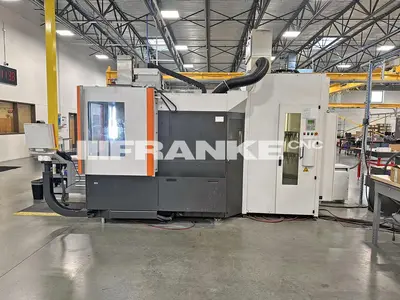

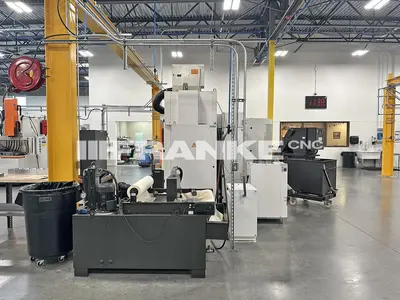

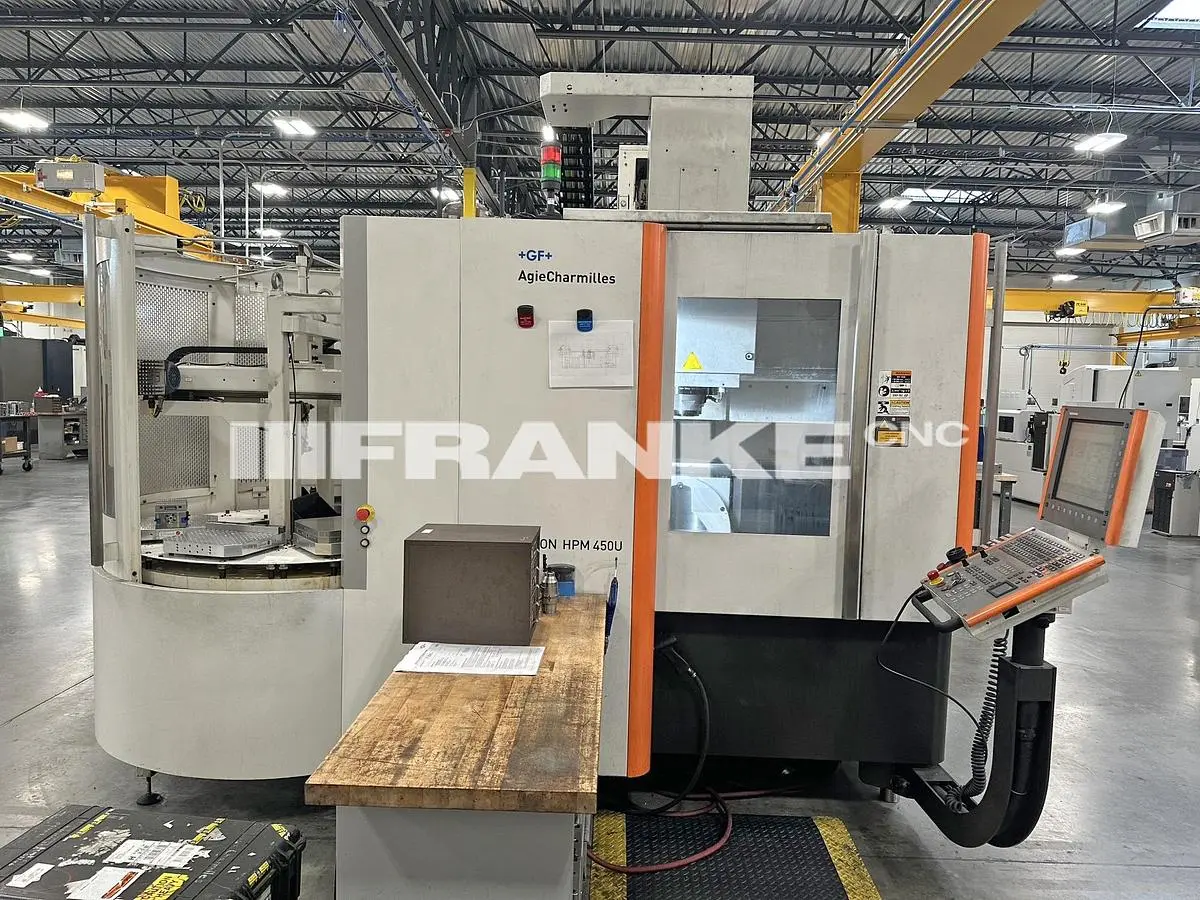

USED 2012 MIKRON MILL HPM450U
Overview
Machine was manufactured at +GF+ AgieCharmilles AG in Nidau, Switzerland 1/2012
Equipped With:
HEIDENHAIN iTNC 530 control with Ethernet and electronic handwheel for part setup
HEIDENHAIN direct measuring system glass scales X/Y/Z 0.00004" (1 um) resolution
HEIDENHAIN direct measuring system rotary encoders B/C 0.00004" (1 um) resolution

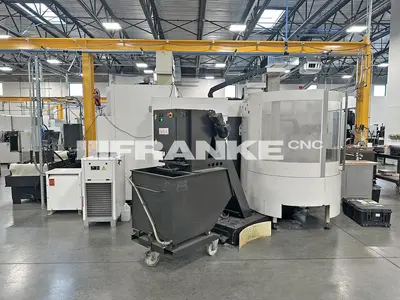

System 3R Dynafix 7 station automatic pallet changer
120 position tool tower automatic tool changer
Hydraulic clamping in turning and swiveling axis
Liquid cooled feed motors
BLUM Laser tool measurement system with blow off unit
M&H infrared measuring touch probe
Complete machine enclosure
Oil mist extraction system
172 gallon (650 l) high performance coolant tank with micro paper filtration
260-1,000 psi(18-70 bar)adjustable high pressure coolant thru the spindle (CTS)
Chip conveyor for higher demands for aluminum machining
Rinsing gun
Beacon signal lamp
External spindle chiller
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Specs
Working Range Longitudinal X: 23.62" (600 mm)
Working Range Transverse Y: 17.72" (450 mm)
Working Range Vertical Z: 17.72" (450 mm)
Maximum Workpiece Diameter: 17.72" (450 mm)
Maximum Workpiece Height: 17.72" (450 mm)
Maximum Workpiece Weight: 330 lb (150 kg) manual loading
Max. Workpiece Weight: Automatic: 198 lb (90 kg) using the pallet changer

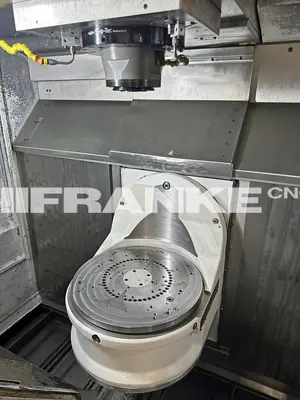

Rotary Tilting Table Tilt, B-Axis: -120/+45 degrees
Rotary Tilting Table Rotary, C-Axis: n x 360 degrees
Number Of Simultaneous Axes: 5/5 Simultaneous
X/Y/Z Axes Drive: Ballscrews
B/C Axes Drive: Direct Drive Torque Motors
Rapid Traverse X/Y/Z: 866 ipm (22 m/min)
Table Rapid Speed B-Axis (Tilt): 50 rpm
Table Rapid Speed C-Axis (Rotary): 140 rpm
Maximum Acceleration X/Y/Z: Up to 5m/s^2
Rotary Tilting Table (RTT) Pallet: System 3R Dynafix
RTT Standard Pallet Size: 11.02" x 11.02" (280 mm x 280 mm)
RTT Maximum Pallet Size: 13.78" x 13.78" (350mm x 350 mm)
STEP TEC Swiss made Spindle: 100-20,000 rpm HSK-A63 taper
Spindle Power: 40 hp (30 kW)
Spindle Torque: 67 lb-ft (91 Nm)
Spindle Max. Tool Length: 13.75" (350 mm) from the spindle nose
Tool Tower Magazine: 120 positions
Standard max. Tool Diameter: 3.15" (80 mm)
Tool Tower max. Tool Diameter: 4.92" (125 mm) with free adjacent positions
Tool Tower Maximum Tool Length: 10.6" (270 mm)
Tool Tower max. Tool Weight: 13.2 lb (6 kg)
Machine Weight: Approx. 16,976 lb (7,700 kg) with the pallet changer
Machine Base: Polymer concrete (man made granite)
