USED 2016 CMS/BALESTRINI PICO MD3

Lot Closes:: 10/29/2026 11:00:00 AM PT

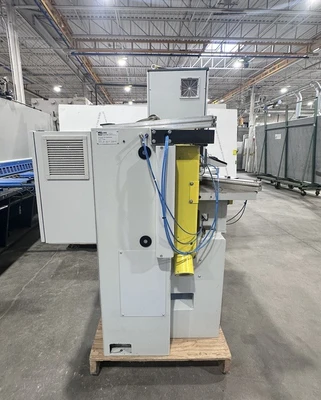

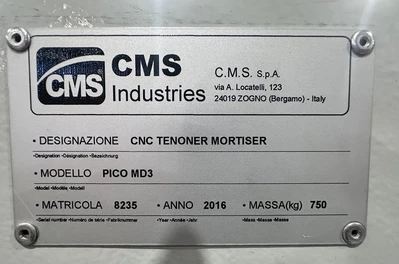

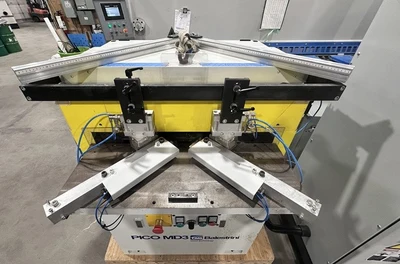

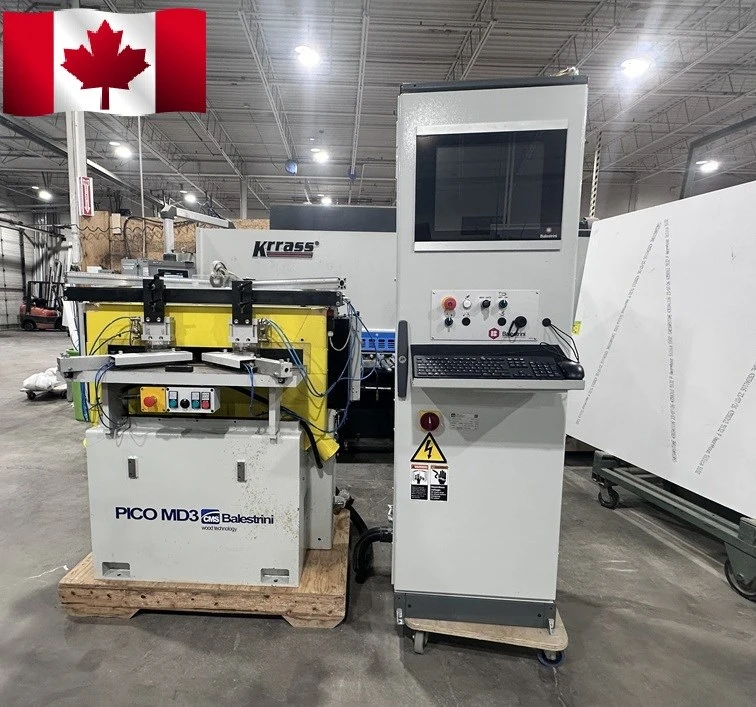

CMS/Balestrini "Pico MD3" Door Machine
The Pico MD3 is a Compact CNC Tenoning, Mortising, and Milling Machine designed for Processing Solid Wood and Melamine-coated MDF Frame. Cornice, and Cabinet Door Miter Joints.
Application: Specializes in 45° miter tenons and mortises for furniture fronts, kitchen doors, frames, and picture/window frames
Workable Piece Dimensions
Width X Thickness with cut at 45 Degrees.....110 x 70mm
Width X Thickness with Cut at 0 Degrees.....144 x 70mm
Min Workpiece Length....100mm
Tenon Dimensions
Maximum Tenon Length - 150 mm (5.9")
Max Tenon Thickness - 20 mm (0.8")
Tenon Depth - 5 mm (0.2") - 15 mm (0.6")
Mortise Dimensions
Maximum Mortise Width - 150 mm (5.9")
Maximum Mortise Thickness - 16 mm (0.6")
Maximum Mortise Depth - 30 mm (1.2")
5.5 HP tenon motor @ 9,000 and 12,000 RPM
2.5 HP mortise motor@ 9,000/12,000/18,000 RPM
Fence

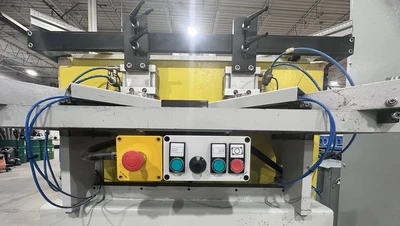

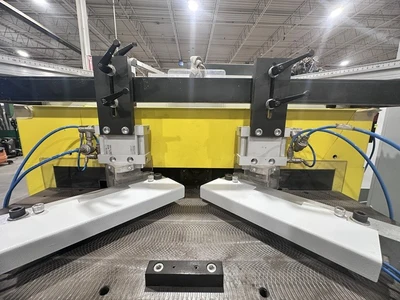

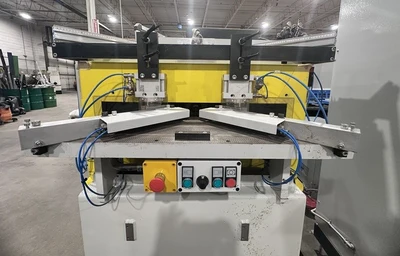

(2) pneumatic clamps

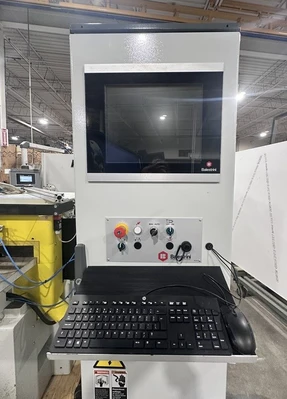

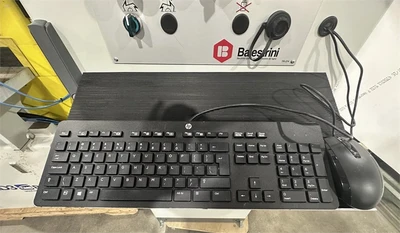

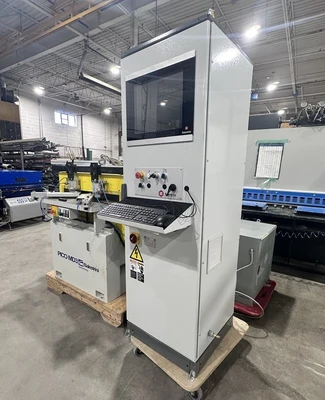

Control cabinet with PC

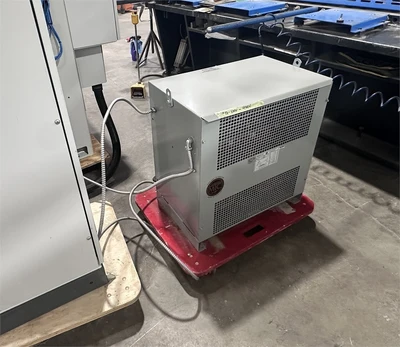

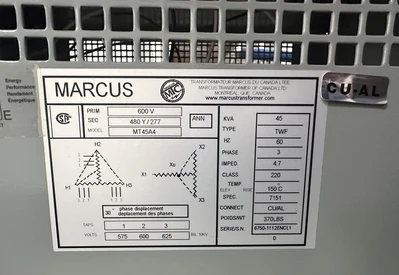

Marcus 45 kva transformer
