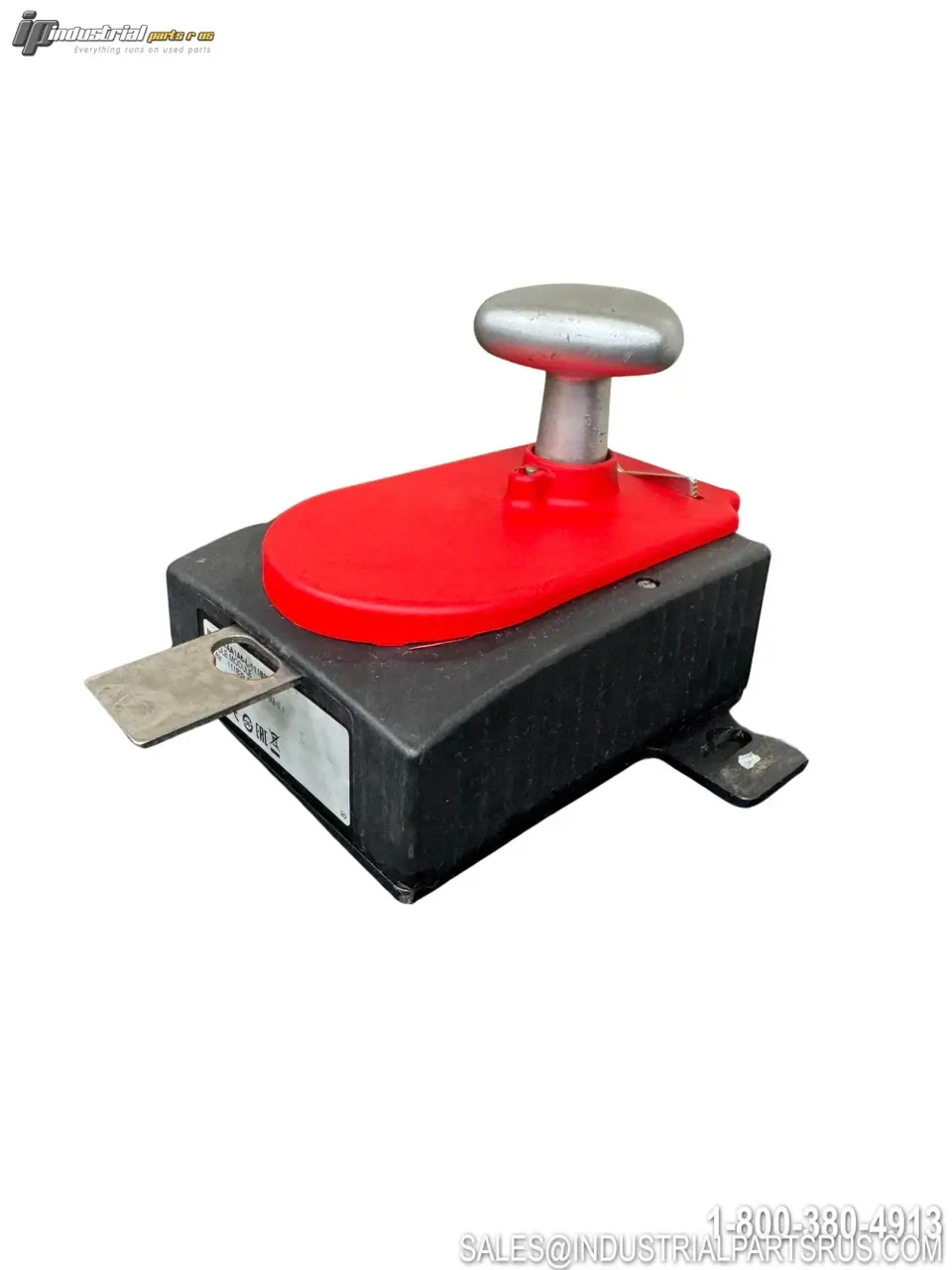

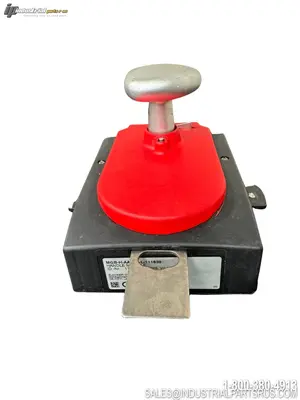

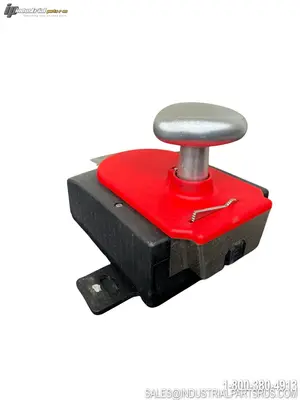

USED EUCHNER MGB-H-AA1A6-L-111839

The Euchner MGB-H-AA1A6-L-111839 is a handle module for the Multifunctional Gate Box (MGB) safety system, designed for machine guarding applications on safety doors hinged on the left (DIN left). It includes an intelligent bolt tongue detected by RFID transponder, a fold-out lockout mechanism, a second automatically extending lockout mechanism, a robust door handle, and a mounting plate. The handle can be rotated in 90° steps and supports up to 3 padlocks for LOTO (Lockout/Tagout) compliance. This module is compatible with Euchner MGB locking modules and achieves the highest safety level of Category 4 / PLe per EN ISO 13849-1 and SIL 3 per EN 62061 when used in a complete MGB system.
Specification
Value
Brand
Euchner
Model / Part Number
MGB-H-AA1A6-L-111839
Order Number
111839
Product Type
Handle Module – Multifunctional Gate Box (MGB)
Product Series
MGB (Multifunctional Gate Box)
Installation Orientation
Door Hinge DIN Left
Degree of Protection
IP65
Ambient Temperature
-20 ... +55 °C
Storage Temperature
-25 ... +70 °C
Housing Material
Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel
Safety Category
Category 4 / PLe per EN ISO 13849-1
SIL Rating
SIL 3 per EN 62061
Transponder Type
RFID / Unicode
Lockout Mechanism
Fold-out + Automatically Extending (second mechanism)
Max. Padlocks Supported
3
Door Handle Adjustment
Rotatable in 90° steps
Product Version
V3.0.0
Additional Feature
With mounting plate and automatic lockout mechanism
Gross Weight
1.722 kg (approx. 3.79 lbs)
GTIN
4047048006775
ECLASS 11.0
27-27-24-04 (Actuator for safety-related proximity switch)
Customs Tariff Number
85389099990
Compatible With
Euchner MGB Locking/Evaluation Modules (e.g., MGB-L1B-PNA-L series)
Approvals
DGUV, ET 25017, ET 25018
We warranty all items for 30 days from date of purchase.
