USED EUCHNER MGB-E-A2-106051

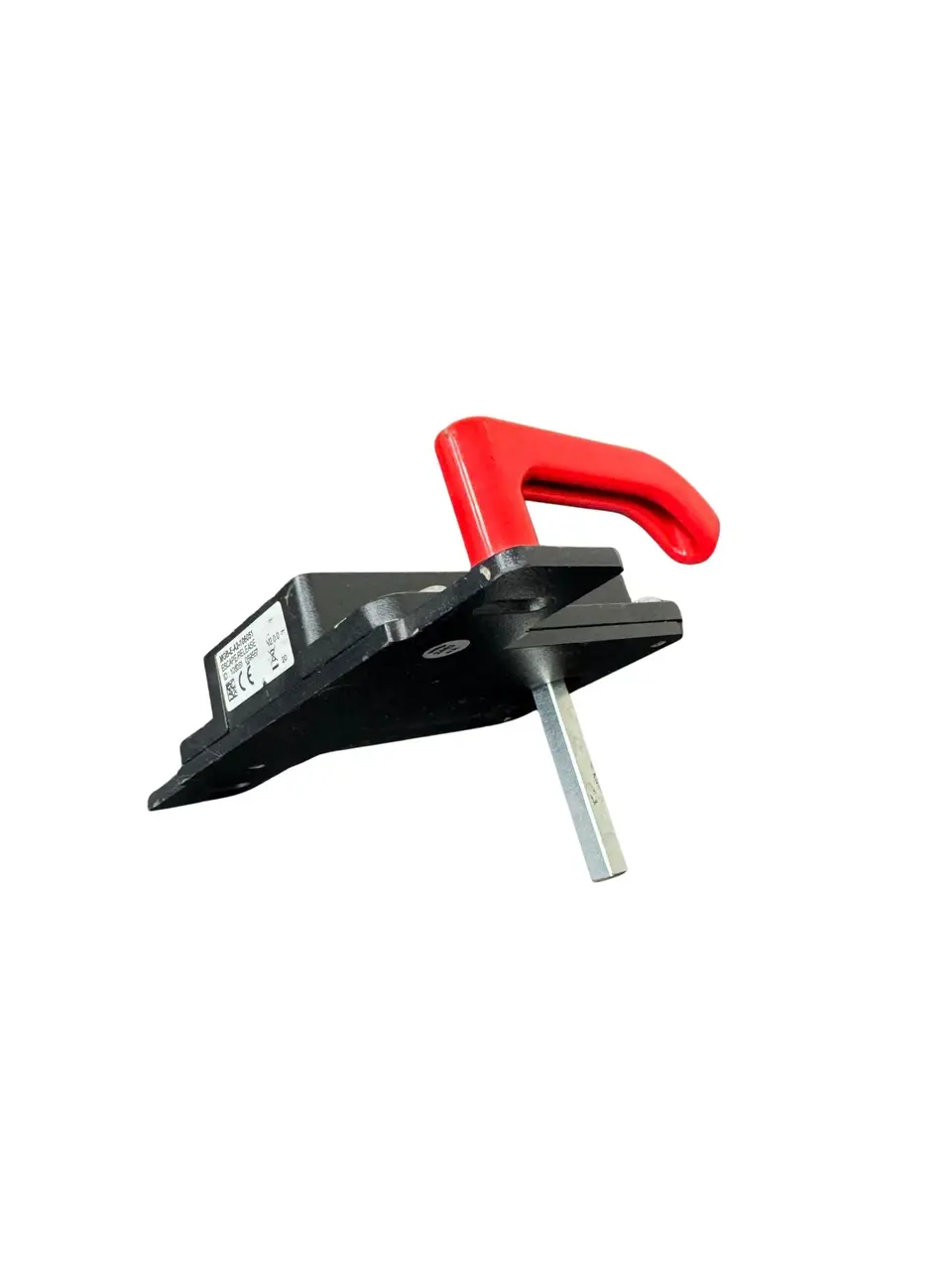

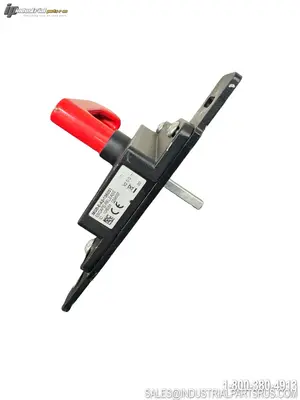

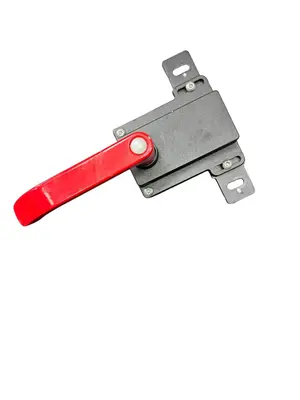

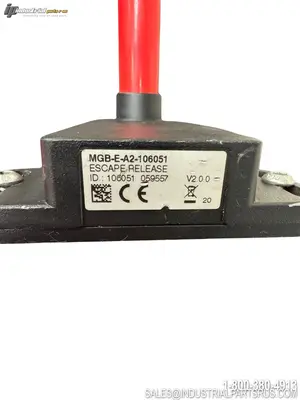

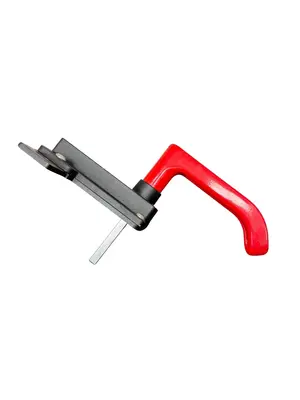

The Euchner MGB-E-A2-106051 is an escape release module for the Multifunctional Gate Box (MGB) safety system, pre-assembled on a mounting plate. It enables personnel accidentally shut inside a guarded danger zone to open a guard-locked safety door from the interior simply by actuating the signal red door handle. The actuation axis (8 x 8 mm square, 115 mm long) is designed for door profiles up to 40 mm thick, and an optional 250 mm extended actuation axis is available for thicker doors or profiles.
Specification
Value
Brand
Euchner
Model / Part Number
MGB-E-A2-106051
Order Number
106051
Product Type
Escape Release Module – pre-assembled on mounting plate
Compatible System
Euchner MGB / MGB2 Multifunctional Gate Box Safety System
Handle Color
Signal Red
Actuation Axis Size
8 x 8 mm (square)
Actuation Axis Length
115 mm
Max. Door Profile Thickness
Up to 40 mm
Extended Actuation Axis (optional)
250 mm (instead of 115 mm), can be shortened to required dimension
Installation Orientation
Any
Ambient Temperature
-30 … +55 °C
Storage Temperature
-30 … +70 °C
Mechanical Life
1 × 10⁶ cycles
Housing Material
Die-cast zinc / stainless steel, powder-coated
Mounting
Pre-assembled on mounting plate
Gross Weight
1.05 kg (2.31 lbs)
GTIN
4047048006683
Customs Tariff Number
85389099990
Safety Category (MGB System)
Category B per EN ISO 13849-1 (escape release function)
Actuating Direction
Automatically adapts to handle module actuating direction
We warranty all items for 30 days from date of purchase.
