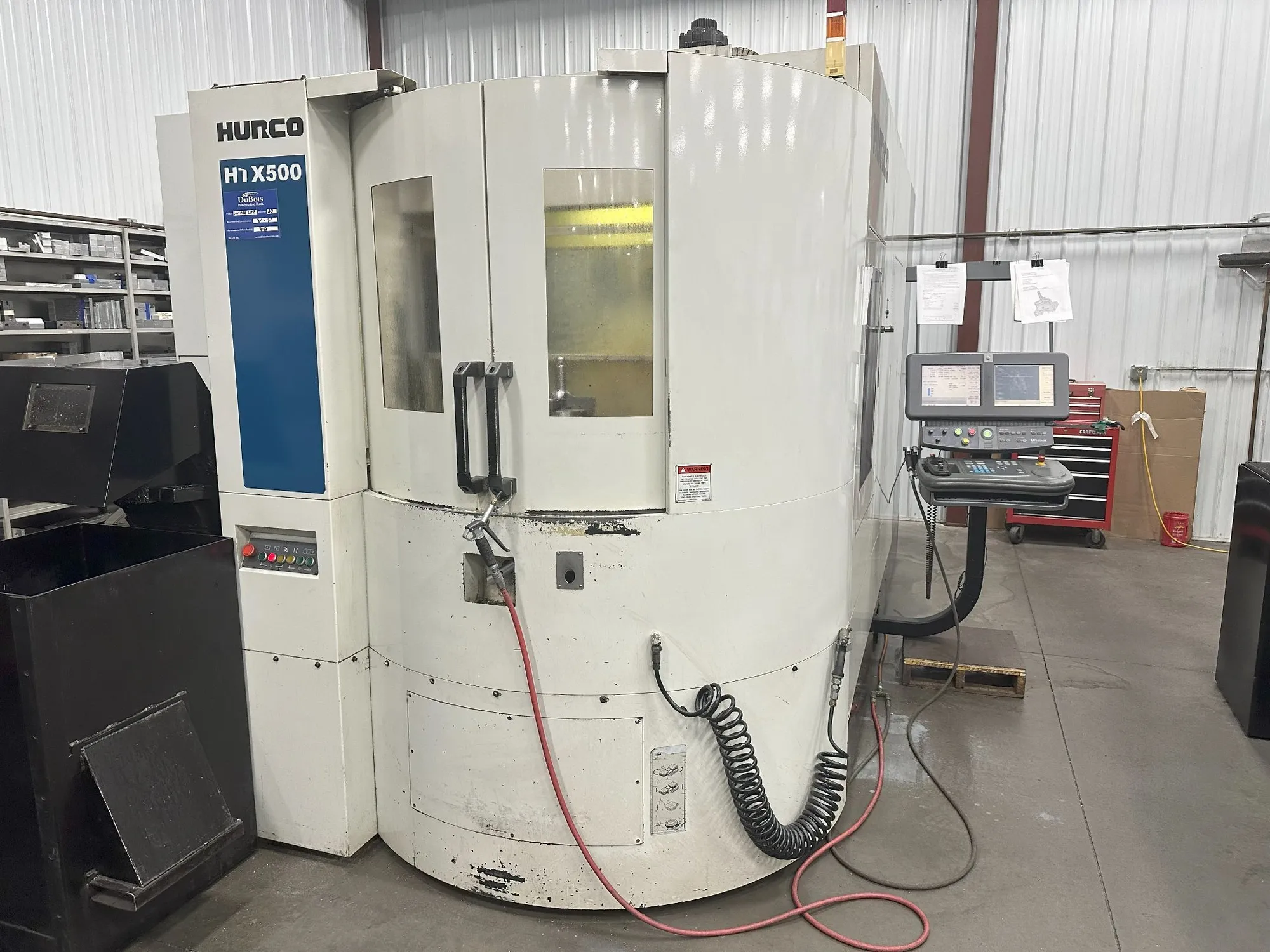

USED 2006 HURCO HTX500

2006 Hurco HTX-500 Horizontal Machining Center with Ultimax Control, 10,000 RPM, CAT-40 Spindle, Through Spindle Coolant, Full 4th Axis, 60 ATC, 4 tombstones and 8 Hurco Vices Included. Machine has under 1,100 Spindle Hours.

Pallet Size............................19.7" x 19.7"
Number of Pallets......................2
Pallet Indexing........................0.001 Degree
Pallet Top.............................24 — M16 Hole Matrix On 3.94" Centers
Maximum Load...........................1100 lbs
Front Enclosure Door Opening...........30.9"
Spinde Nose To Column Rail.............11.8"
Spindle Nose To Pallet Center..........6.10" / 30.12"
X-Axis Travel..........................28"
Y-Axis Travel..........................24"
Z-Axis Travel..........................24"
Spindle Motor..........................24 HP
Spindle Taper..........................CAT-40
Max. Spindle Speed.....................10,000 RPM
Rapid Traverse Rate....................1,259 IPM
Max. Contouring Rate...................600 IPM
Cutting Feedrate.......................300 IPM
Number of Tools........................60 ATC
Maximum Tool Diameter..................3.2"
Max. Tool Weight w/Adjacent Empty......5.9"
Maximum Tool Length....................13.8"
Maximum Tool Weight....................22 lbs
Tool to Tool Next Station (VDI)........2.5 seconds
Chip-to—Chip...........................7 seconds
Machine Dimensions.....................96.5" x 169.3" x 110.3"
Machine Weight.........................29,500 Lbs

Ultimax Dual Screen Control (Upgraded in 2019)
2-Station Pallet Changer
Full 4th Axis
10,000 RPM CAT-40 Spindle
60 Station ATC
Through Spindle Coolant
(4) Tombstones
(8) Hurco Vices
Chip Conveyor
Advanced Verification Graphic
DXF
NC Productivity Package
Tool Probing
Part Probing
Ultipockets
Insert Pockets
Rigid Tapping
Helical Interpolation
3D Mold
NC Conversational Merge
Swept Surface
Selectsurface Finish Quality
Tool & Material Library
Ultimotion
Tool Change Optimization
Ultimonitor
Remote Data Advanced
Job List

HOURS:
Machine Operation Time........2,559
Spindle Time..................1,099

**MACHINE UNDER POWER FOR INSPECTION**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
