USED 2010 NIIGATA HN63D
Overview
Specs
Equipped With
CAT 50
6k spindle
Full 4th
90 tool ATC
Machine is 220v
Chip Blaster is 480v

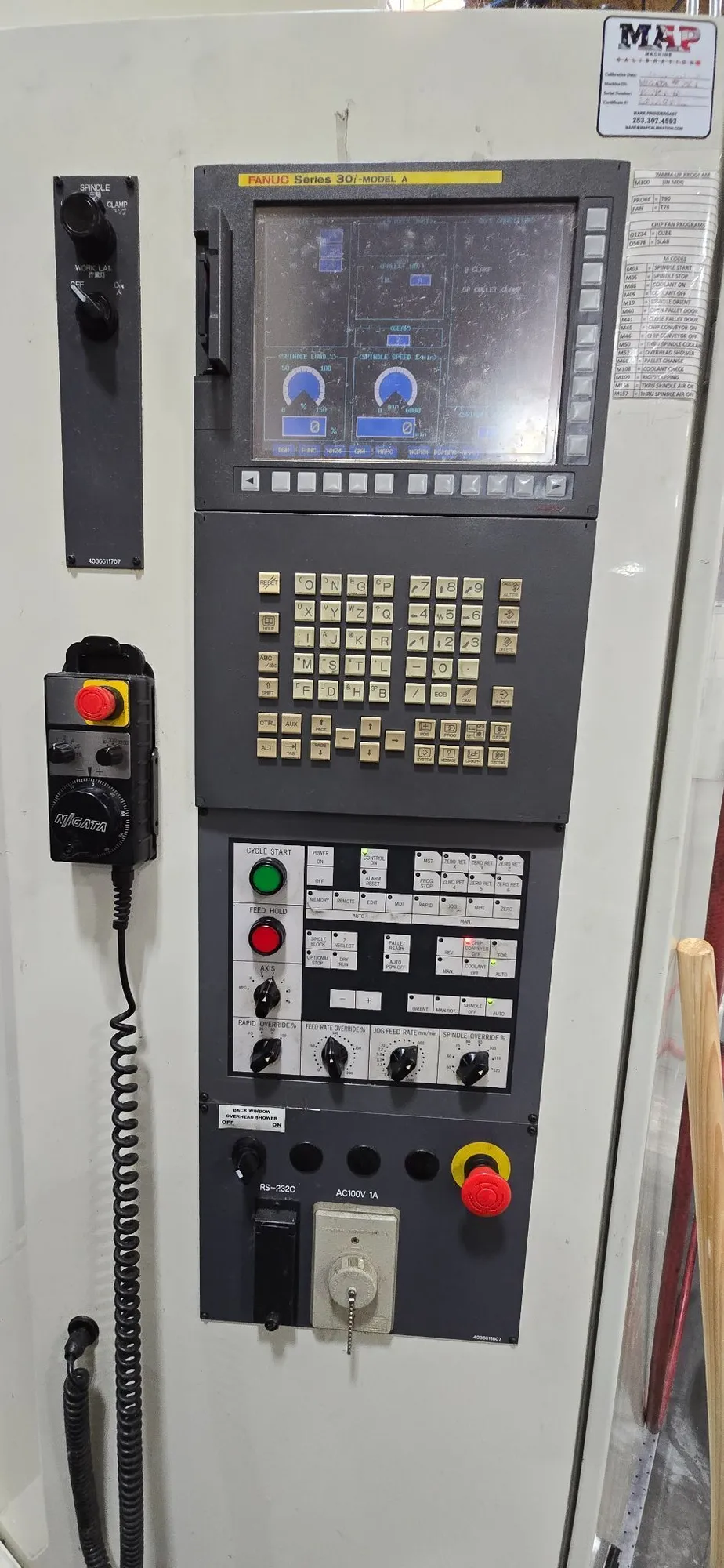

Fanuc 30i Model A control.
Renishaw probe and laser tool setter included. Tool setter was just replaced last year.
Rotary axis was rebuilt 2019
Chiller serviced 2024
Maximum Diameter
1050mm (41.3”)
Max Height
1000mm (39.4”)
Machine work envelope
Specification
Dimension
X-axis travel
39.4" (1,000 mm)
Y-axis travel
34.25" (870 mm)
Z-axis travel
30.7" (780 mm)
Pallet size
24.8" × 24.8" (630 × 630 mm)
Maximum pallet load
3,306 lbs (1,500 kg)
B-axis rotation
360°, programmable
B-axis resolution
0.001°
Item
Approximate
Shipping length
17–19 ft
Shipping width
9–10 ft
Shipping height
10–11 ft
Machine weight
41,000 lb
Rigging/shipping weight allowance
42,000–45,000 lb
Chip Conveyor 5’ x 12’ x 7’ Tall
Chip Blaster 3’ x 6’ x 6’ Tall
Machine 10-1/2’ x 18’ x 11’
Tool Magazine 4’ x 12’ x 9’ Tall
