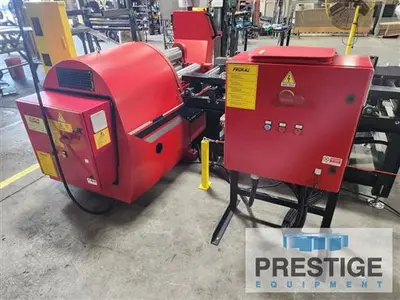

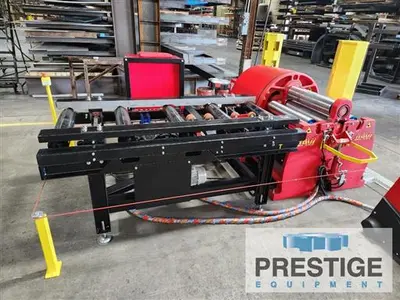

USED 2023 DAVI MCA 0615

CAPACITY:
Bending Capacity: 5/16" Ga.
Pre-Bending Capacity: 1/4"
Rolls Length/Free Access: 26"
Top Roll Diameter: 6"
Bottom Roll Diameter: 5.5"
Side Rolls Diameter: 5"
Smallest Possible Diameter: 6.6"
Rolling Speed: 20 Ft/Min
Power: 6.6 HP

Equipped With:

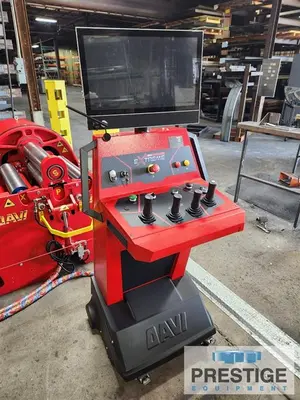

Davi CNC Control
Top & Lower Rolls are Standard Crowned to Compensate Rolls Deflection
Friction Free, Mill-Scale-Proof, Lubrication-Less Planetary Guides
Linear Transducer with Accuracy of 0.004"
Self-Aligning Heavy Duty Double Crown Spherical Roller Bearings
Two Independent but Integrated Parallel Systems
Both Clamping Rolls are Driven in Rotation as Standard Feature
Stress-Less Transmission Drive System
Roll-by-Wire Digital Technology
High Quality Surface Finishing
Servo-Tronic Roll Parallelism
Permanent Lubrication Technology

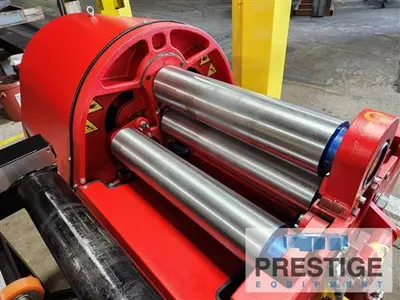

Hardened Rolls
Cone Rolling Package
DG Gauge Small iD 6.7"<>78.9"

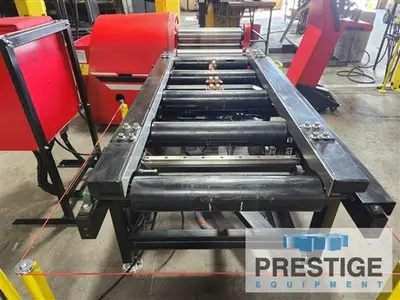

Powered Infeed Conveyor 6' Long
Powered Centering Device on Full Width Conveyor
Body Protection Large Resolution Light Curtain Set

NOTE:
Like New, Inspect In Plant Under Power

Features:
Davi CNC Control
Top & Lower Rolls are Standard Crowned to Compensate Rolls Deflection
Friction Free, Mill-Scale-Proof, Lubrication-Less Planetary Guides
Linear Transducer with Accuracy of 0.004"
Self-Aligning Heavy Duty Double Crown Spherical Roller Bearings
Hardened Rolls
Cone Rolling Package
DG Gauge Small iD 6.7"<>78.9"
Powered Infeed Conveyor 6' Long
Powered Centering Device on Full Width Conveyor
Body Protection Large Resolution Light Curtain Set
