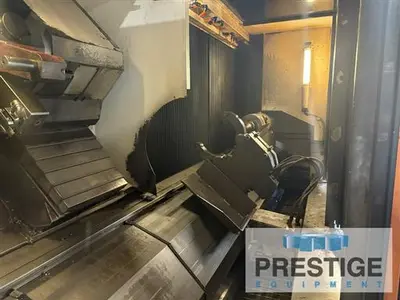

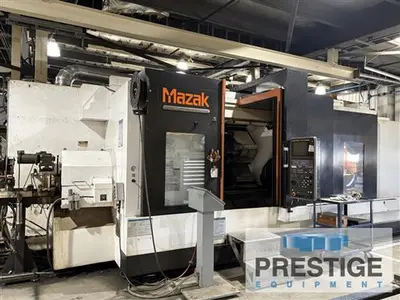

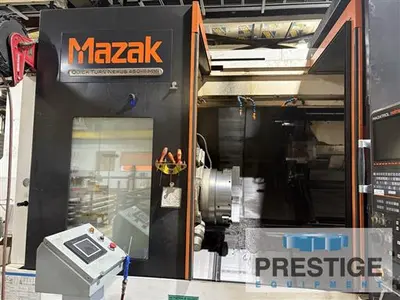

USED 2010 MAZAK QTN-450-II-MY
Overview
Specifications
| Swing | 33.07" | 839.98 mm |
|---|---|---|
| Machining Length | 118.11" | 3,000 mm |
| # Axis | 2 | 2 |
| Chuck Size | 19.25" | 488.95 mm |
| Bar Capacity | 7.24" | 183.9 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 22.84" | 580.14 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'No' | 'No' |
SPECIFICATION:
Maximum Swing: 33.07"
Maximum Machining Diameter: 22.84"
Maximum Turning Length: 118.11"
X-Axis Travel: 13.38"
Z-Axis Travel: 123.81"
Spindle Bore: 7.24"
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
Milling Spindle Speed: 4,000 RPM
Milling Spindle Motor: 10 HP
Approximate Dimensions: 245" x 110" x 104"
Approximate Weight: 47,000 Lbs.
Equipped With:

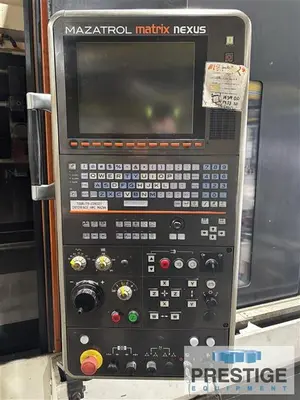

Mazak Matrix Nexus 2 CNC Control

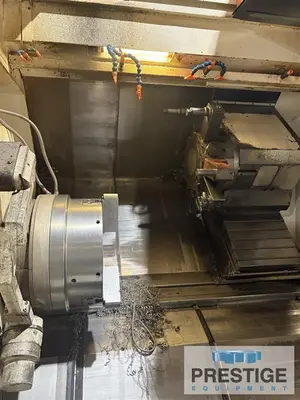

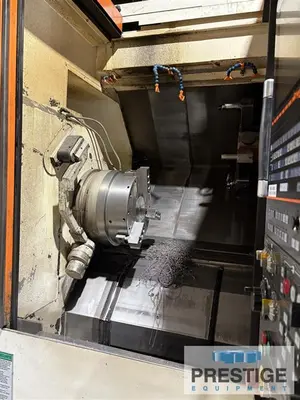

19.25" Chuck

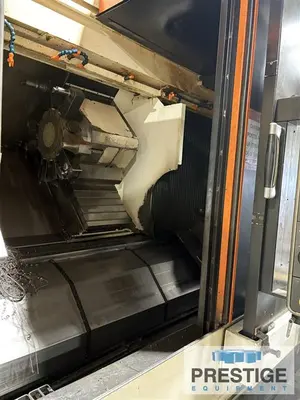

12-Station Auto Indexing Turret
Milling & C-Axis
Y-Axis
Machine Prepped for 1000 PSI
Auto Front Door Open/Close
SMW Steady Rest
Automatic Tool Eye
Tailstock
Chip Conveyor
HOURS:
5,800
NOTE:
Inspect in Plant Under Power
Features:
Mazak Matrix Nexus 2 CNC Control
12-Station Auto Indexing Turret
Milling & C-Axis
Y-Axis
Machine Prepped for 1000 PSI
SMW Steady Rest
