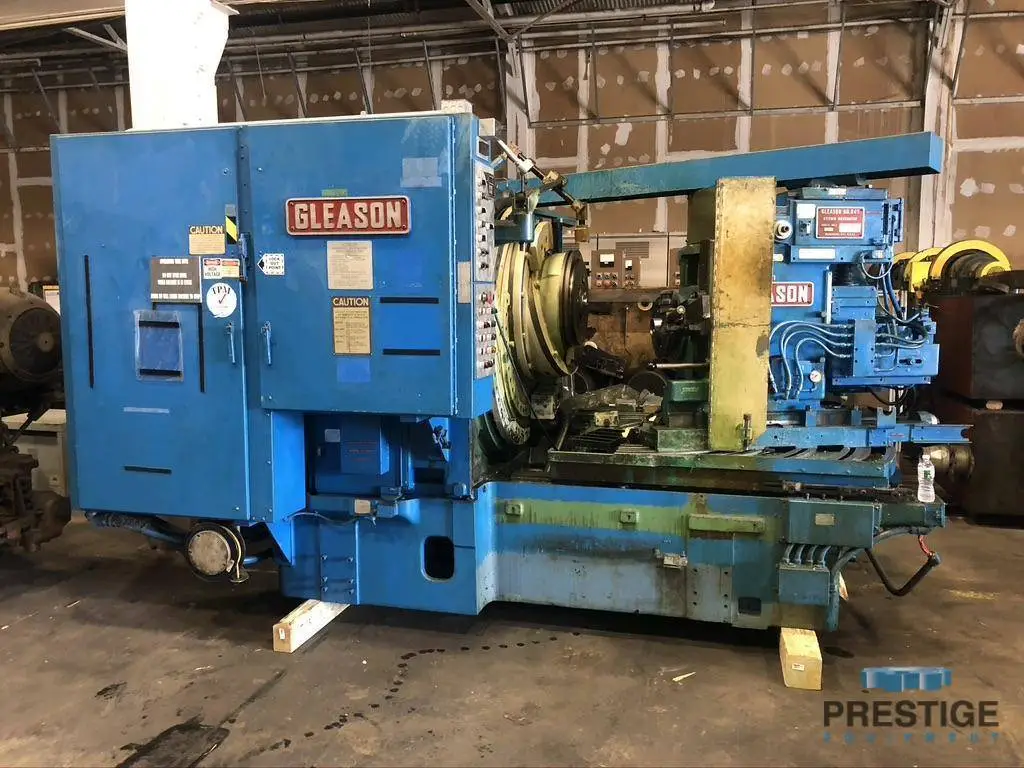

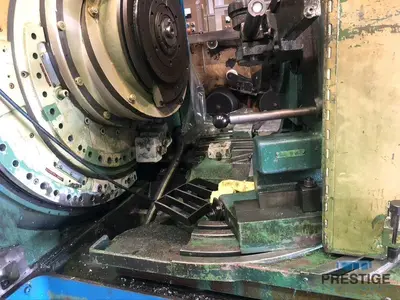

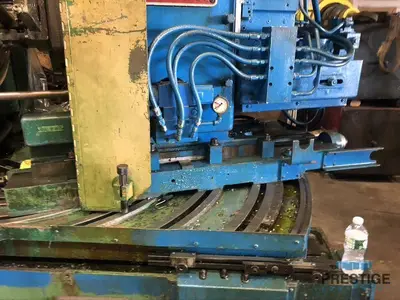

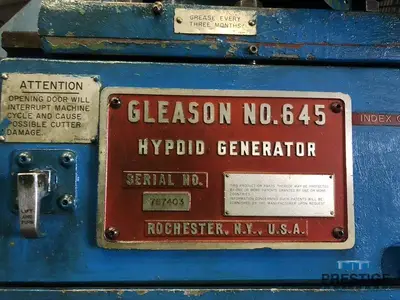

USED 1980 GLEASON 645

SPECIFICATIONS:
Outer Core: 14.22", 14.05", 14.88"
Spiral Angle: 29.75", 30 Deg, 35 Deg.
Cutter Diameter: 12", 16", 18"
Extreme Ratio: 10:1
Root Angle Range: -8/+90 Degree
Maximum Radial Setting: 10.50"
Coarsest Pitch: 1.5 DP
Full Depth: 1.25"
Face Width Max.: 4.60"
Index Range: 5-80 Inclusive
Work Spindle, Dia. Of Taper Hole: 6" At Large End
Taper/Ft: 3/4"
Taper/Depth: 6"
Hole Through Spindle: 5"
Cutter Diameter: 9", 12", 16", 18"
Work Head Offset Above Center: 4.5"
Work Head Offset Below Center: 4.5"
Machine Center To Spindle Nose: 23.5"
Cutter Speeds/Feeds: 19-167 RPM
Electrics: 460V
Weight: 55,000 Lbs.

Equipped With:
Stock Divider
Chip Auger
Hydraulic System
Coolant

LOCATION:
Bridgeport, CT
