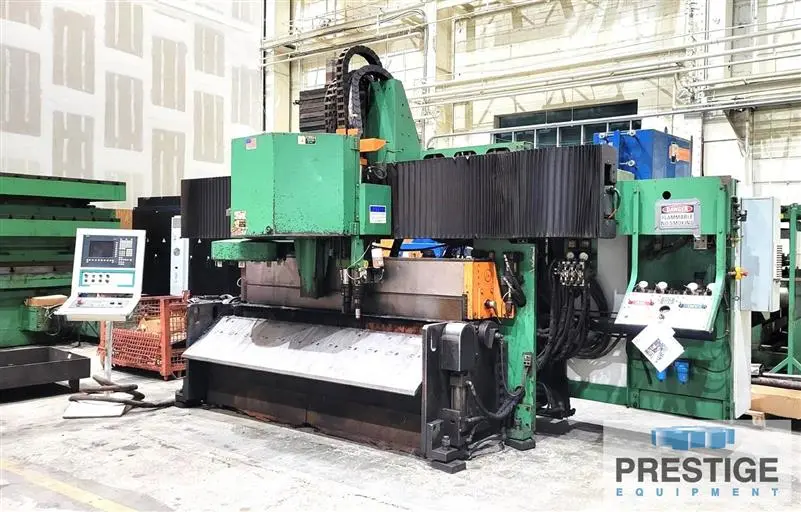

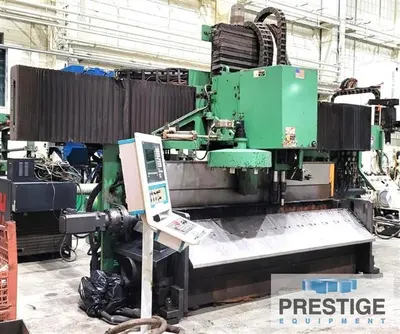

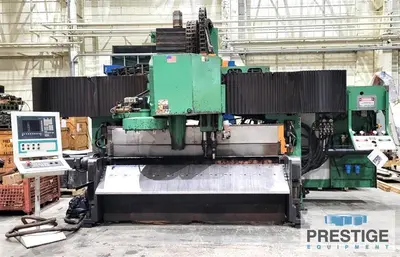

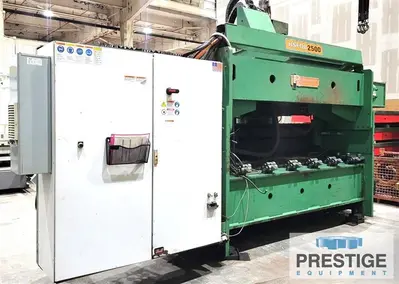

USED 2009 PEDDINGHAUS HSFDB 2500/B

CAPACITY:
Maximum Material Width: 96"
Minimum Material Length: 52"
Maximum Material Weight: 20,000 Lbs.
Spindle Power: 48 HP
Min-Max Plate Drilling Range: 1/4" to 3"
Min-Max Plasma Cutting Range: 1/4" to 2-1/2"
Spindle Speed: 0-2250 RPM
Available Tools in Tool Changer: 8
Spindle Taper: #50
Machine Weight: 35,488 Lbs.

Equipped With:
Siemens 840 CNC Control

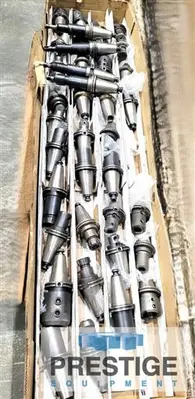

(1) Single Spindle Drill With 8-Station Automatic Tool Changer
(1) Signoscript Carbide Scribing Tool
Automatic Tool Length Measurement
Thru Tool Lubrication System
(1) Oxy Fuel Cutting Torch
(1) Plasma Cutting Torch
Jorgensen Slug Conveyor
Hypertherm HPR400-XD Plasma Power Supply
40' Infeed & 20' outfeed Conveyor

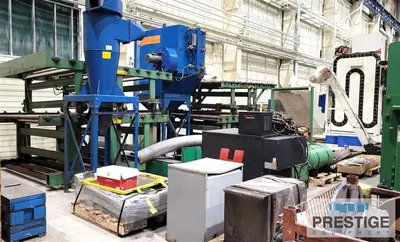

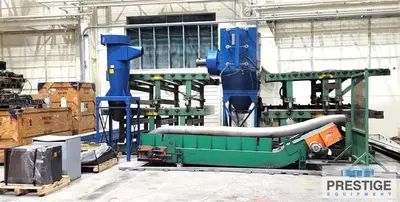

Donaldson Dust Collector

NOTE:
Inspect In Our Philadelphia PA Warehouse

Features:
Siemens 840 CNC Control
Single Spindle Drill With 8-Station ATC
Signoscript Carbide Scribing Tool
Oxy Fuel Cutting Torch
Plasma Cutting Torch
Jorgensen Slug Conveyor
Hypertherm HPR400-XD Plasma Power Supply
Infeed & outfeed Conveyor
Dust Collector
