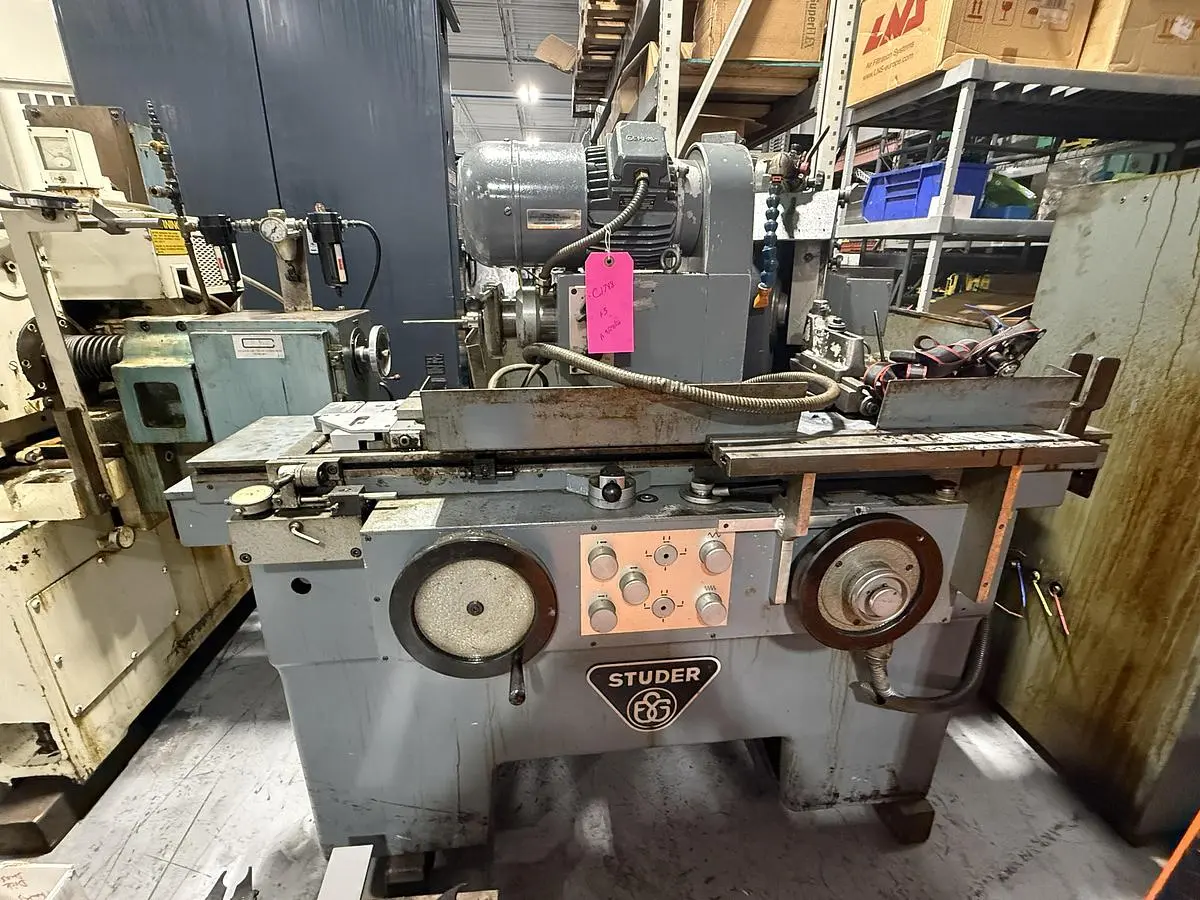

USED 1980 STUDER RHU 400

Manufacturer: Studer Universal Cylindrical Grinder
Model: RHU 400
Serial#: 708.45
Year: 1980's
Center Height: 400 mm
Distance between centers: 400 mm
Max. Longitudinal travel: 440 mm
Grinding wheel: 400x50x127 mm
Max. grinding diameter: 250 mm
Table load max.: 80 kg
Workpiece weight on centers max.: 80 kg
Grinding wheel speeds: number (steps) 3, 1500-1800 rpm
Angular displacement: +/- 45 °
Work piece spindle head: -speeds stepless 30-675 rpm
-rotatable 90 °
Spindle taper: 5 MT
Taper in tailstock: 3 MT
Table speed stepless: 0.05-5.50 m/min
External Grinding wheel motor: 3 kW
Approx Weight: 1500 kg

Price: $9,500
*All specifications are approximations and are subject to verification
Rigging and transportation are the responsibility of the purchaser.
