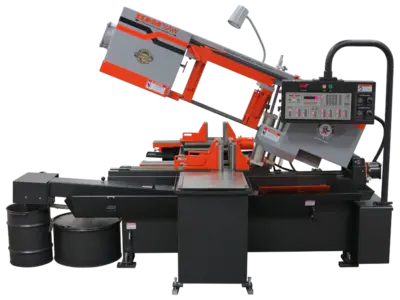

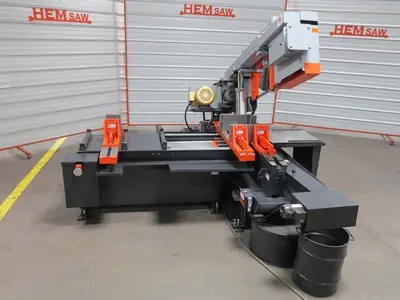

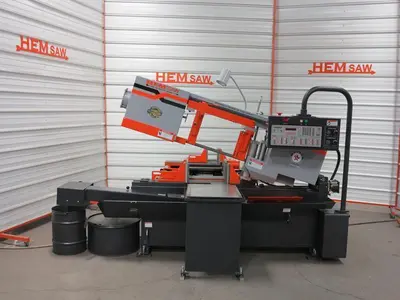

NEW 2026 HEM H105A-C

Saw: Pivot Style, Horizontal Band Saw
Saw Capacity: 16" W x 12.5" H or 15.75" W x 14" H
(14" Square • 14" Round)
Standard Features
Easy View Control Console – All Function
Air-Powered Blade Tension
Computer Controlled Feed system (CCF)
Adjustable Cutting Rate & Cutting Pressure
24″ Solid Discharge Table – Bolts to Saw
Chip Auger System
Adjustable Main & Feed Vise w/Variable Vise Pressure
Built-In Coolant System w/ Wash-Down Hose
Two Hold Down Fixtures for Vises
Mechanical Digital Readout & Alignment Bar on Bar-Feed
Manual Guide Arm Adjustment
Air Machine (85 PSI, 4-6 CFM Minimum Air Requirement)
Cut Watcher® System
220V(27 Amps)/3PH or 440V(14 Amps)/3PH Electrical Motor Requirement
Adjustable Blade Speed w/ LED Readout
*Amps Increase w/added options
Carbide Blade Guides
– This is Not a Dual Voltage Machine
Price
$74,495.00
Optional Features
3rd Holding Vise on Feed
$3,721.00
Interlocking Vise Jaws (Reduces Capacity 1.5")*Cannot order Top Clamps w/ option
$1,547.00
Reduced Capacity Top Clamp - Main Vise (Capacity 15” W x 10” H)
$2,272.00
Reduced Capacity Top Clamp - Feed Vise (Capacity 15” W x 10” H)
$2,272.00
Outboard Powered Vise on Discharge
$4,756.00
Light Cutting Pressure
$305.00
Spray Mist Lubrication - Flood/Mist Selector Switch *Requires Air Supply
$1,444.00
Single-Phase Voltage
$823.00
5' x 18" Idle Non-Panned Roller Stock Table
$2,686.00
10' x 18" Idle Non-Panned Roller Stock Table
$4,135.00
Arm Lift: Powered from control console.
Blade Size: 1-1/4” x 15’0” x .042” THK

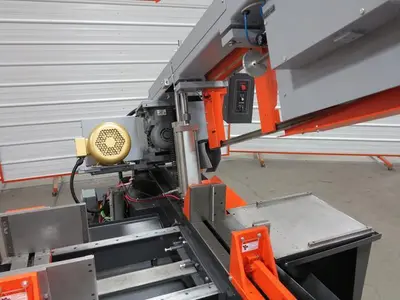

Blade Drive: 7.5 HP, 220V (27 amps)/3PH or 440V (14 amps)/3PH Electrical
Motor Requirement.
220V or 440V AC to be specified by the customer at the time of
order. 1800 rpm, ball bearing TFC
The customer must ground this saw at the machine with
an earth ground rod installed prior to installation for the
warranty to be in effect.
Blade Speed: Infinitely variable speed drive, 60-300 SFPM, controlled through a
variable frequency controller; and speed is changed from LED
readout on console.
Air Requirements: 85 PSI, 4 – 6 CFM, equipped with air filter/lubricator

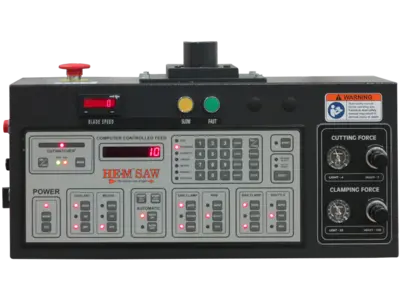

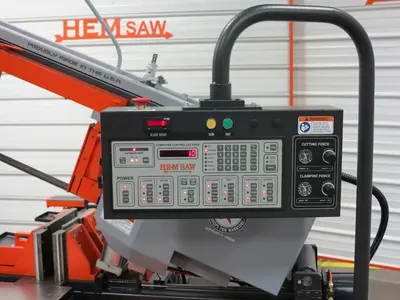

Operator Control: Control Console is located in an Easy View style control on a
gooseneck mount. The Control Console and gooseneck can each
be pivoted for operator convenience. Saw may be operated in
semi-automatic mode or fully automatic mode.
September 3, 2026 HE&M Saw H105A-C Page 3 of 9

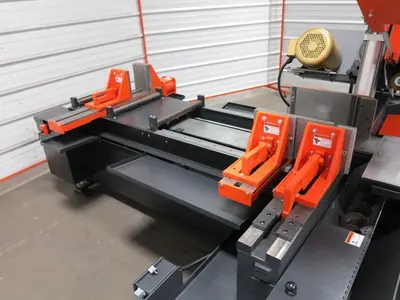

Automatic 0-24” Stroke Bar-Feed (Multiple Index):
Automatic floating (self-adjusting) shuttle vise feed system with
additional rollers to prevent binding of “crooked” and distorted
material. The table is 6’ long with a 0-24” feed stroke.
Discharge Table: 24” Solid Discharge Table for easier material handling after the
cut. The table is 24” in length and standard as solid. The table is
bolted onto the machine base and is fully coolant panned to return
coolant to the machine.

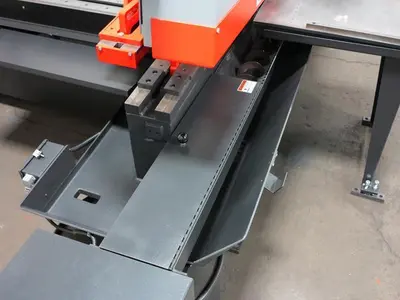

Adjustable Main Vise: Main-clamping vise is air powered and non-cocking.

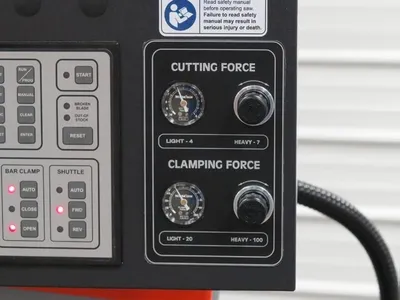

Vise Clamping Pressure: The operator controls the variable vise pressure, adjustable to
clamp various metals.
Cutting Pressure: Adjustable cutting pressure/force to control the weight to be
placed on the teeth of the blade.
September 3, 2026 HE&M Saw H105A-C Page 4 of 9
Cutting Rate: Adjustable to regulate the saw arm traverse rate. This is a
necessary feature to cut tubing at high rates without losing saw
teeth.
Carbide Blade Guides: Side and back carbides are flat for maximum blade support.
Powered Blade Tension: Assures and maintains proper blade tension at all times during the
cutting process.
Blade Chip Brush: Powered brush driven by an assembly mounted on the drive
wheel removes chips that may become lodged in the blade
gullets.
Hold-Down Fixtures: Two each hold down fixtures that mount one on the main vise and
one on the shuttle vise for use when cutting more than one piece
at a time.
Computer Controlled Feed System (CCF):
Programmable feed to automatically cut 99 different jobs of
various lengths from the same bar. Keyboard entry of job number;
number of parts to 999 pieces per job; parts length to 999.999
inches with automatic blade kerf compensation when “indexing”;
choice of display to indicate number pieces cut, time per part; offset
feature to correct length while blade is dulling; single source
responsibility. HE&M Saw designed computer using 8031
processor.
September 3, 2026 HE&M Saw H105A-C Page 5 of 9
Built-In Coolant System: Machine is set up for flood-style coolant system with coolant
dispensed through the guide arms. The saw is fully panned to
return coolant to the tank.
Wash-Down Hose: A cutting fluid clean-up hose is provided for machine wash down.

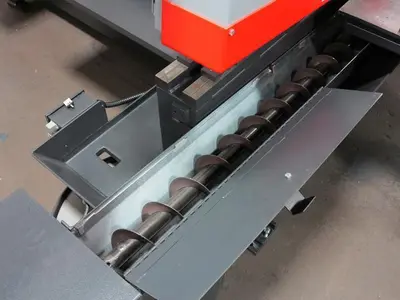

Chip Auger: Removes chips from the cutting area into an easy-to-empty
container. Chips and coolant are separated into two different
tanks.
Cut Watcher® System: A system that monitors the cut for squareness to a pre-set
deviation value. The system shuts down the saw when the pre-set
value is exceeded. This is a must option for production cutting.
(PATENT: 5,070,751)
Blade Break Switch: Saw will automatically shut off if the blade breaks.
Out-of-Stock Switch: The saw shuts off when the automatic feed system is out of stock,
or when the pre-determined number of pieces has been cut.
Safety Guards: Machine is equipped with blade guards and awareness barriers
for safety purposes.
Price: $74,495.00 – FOB Pryor, Oklahoma
Terms: 20% Deposit with order required – balance due Net 30 Days from
shipment with approved credit.
Installation: A factory-trained representative will assist on the installation of the
new machine at your facility, and will be available to train all
necessary personnel to assure immediate full use of the
equipment.
September 3, 2026 HE&M Saw H105A-C Page 6 of 9
Spare Parts Kit: A parts kit containing miscellaneous small items such as fittings,
fuses, and limit switches is provided for start-up.
Warranty: The seller will repair or replace to the purchaser, upon inspection,
any defective part for a period of one (1) year or 2,000 hours,
whichever comes first, from the date of shipment.
Note: This machine is manufactured in its entirety in Pryor, Oklahoma,
USA.
Parts availability is immediate
