USED 2012 CHEVALIER FBL-530
Overview

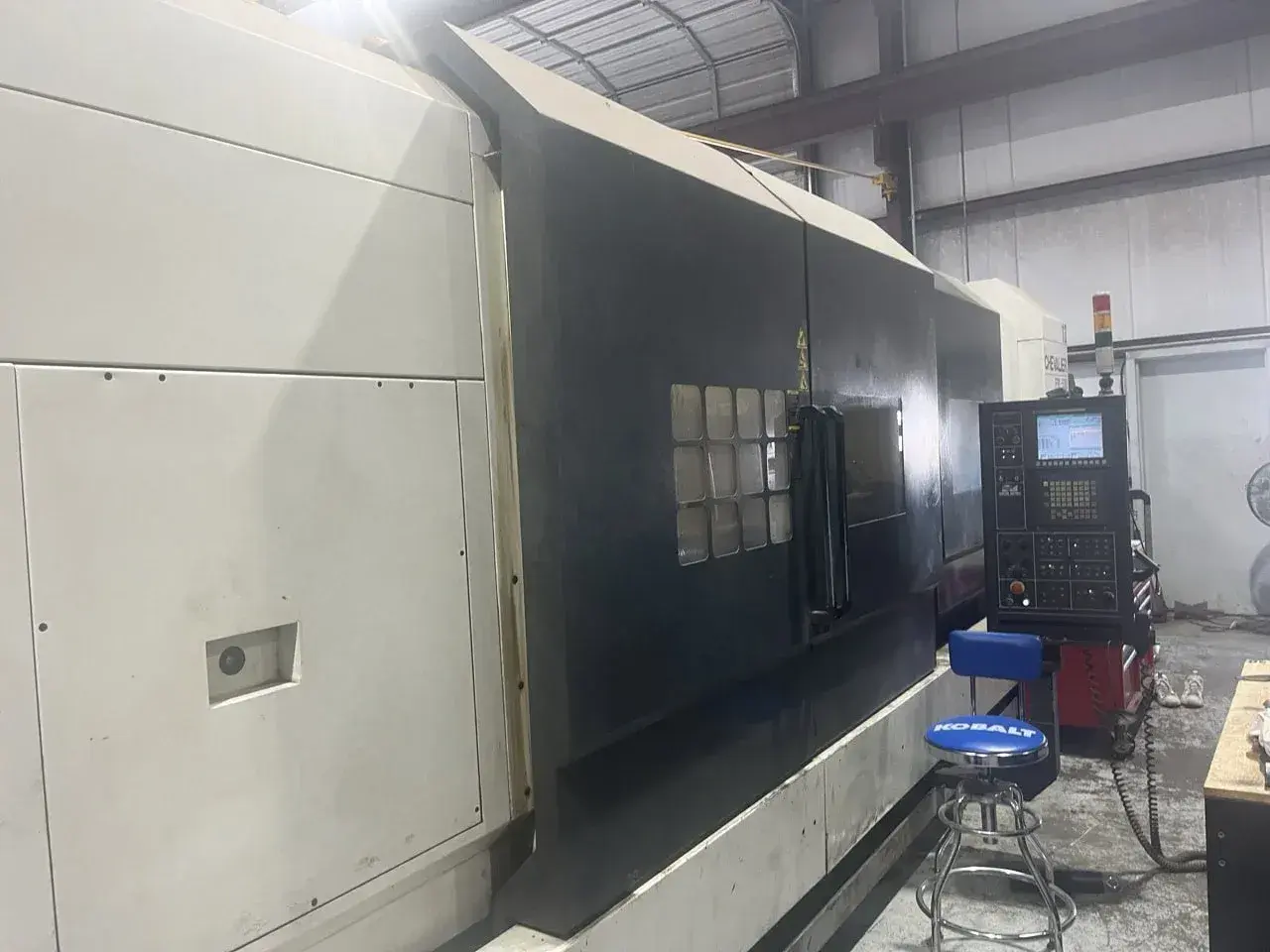

This 2012 Chevalier FBL-530C CNC lathe comes with a hydraulic steady rest, tailstock, Bison 4-jaw chuck, and 28" Schunk rear air chuck, with 40.55" of swing over a 118.11" machining length. Its 60 HP spindle has a 12.59" bore and 12.5" bar capacity, running up to 500 RPM with a 37" max turning diameter.
Specs
X-Axis Travel: 19.29"
Z-Axis Travel: 118.11"
Spindle Nose: A2-20
Spindle Bore: 12.59"
Turret: 12 Positions
Approximate Weight: 61,000 lbs
Equipped With
Fanuc 0i-TD Control
Bison 4-Jaw Chuck
28" Schunk Rear Air Chuck
Hydraulic Steady Rest
Chip Conveyor
Rigid Tapping
RS-232 Port Interface
