40 Taper, 12000 RPM, PC Fusion 640M, 30 ATC, ATLM, Synch Tap, Touch Probe, Manual Pulse Generator, Remote Jog Hand Wheel
| size | 41" x 20" x 20" | 41" x 20" x 20" |
| X Travel | 41.34" | 1,050 mm |
| Y Travel | 20.08" | 510.03 mm |
| Z Travel | 20.08" | 510.03 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT40 | CAT40 |
| Table-W | 21.65" | 549.91 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |
| Weight | 15,200 | 15,200 |

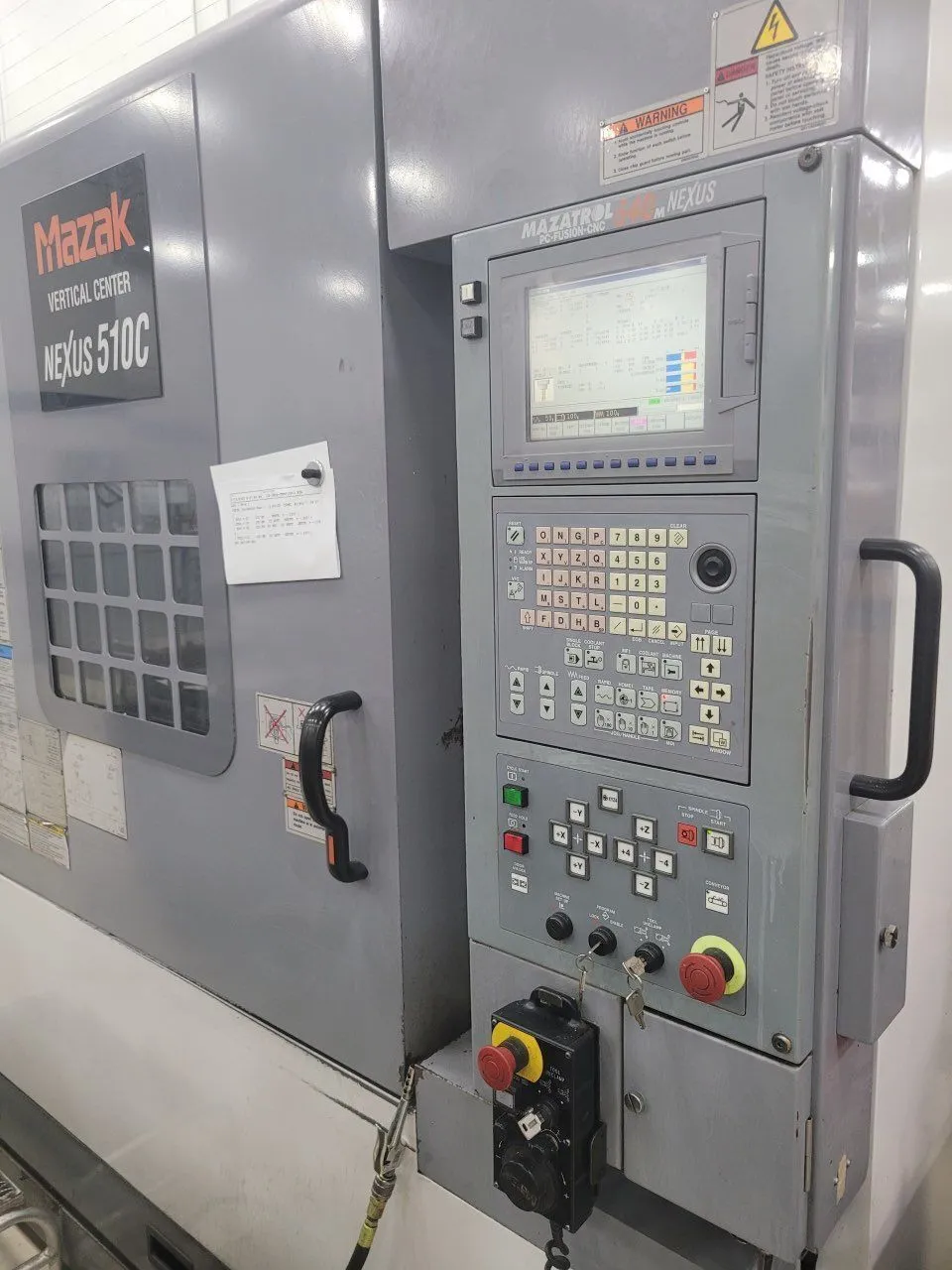

Mazak Model Nexus VCN510C Vertical Machining Center
Specifications:
Table Size: 51.1" X 21.6"
X-Axis Travel: 41.3"
Y-Axis Travel: 20.6"
Z-Axis Travel: 20"
Table Capacity: 2640 LBS
Spindle Taper: CAT 40
Spindle Speeds: 12000 MAX RPM
Rapid Traverse Rate (X/Y/Z): 1417 IPM
Tool Changer Style: SIDE-MOUNT TWIN-ARM 30 Position
Machine
L - 9'-8"
W- 9'-6"
H - 110"
Chip Pan
L - 9'-8"
W -5'-10"
H - 1'-6"
PC Fusion 640M, 30 ATC, ATLM, Synch Tap, Touch Probe, 40 Taper, 12000 RPM , Manuals, Manual Pulse Generator, Remote Jog Hand Wheel
