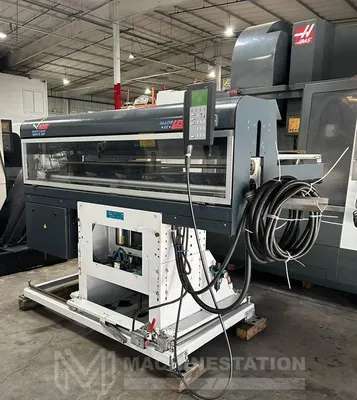

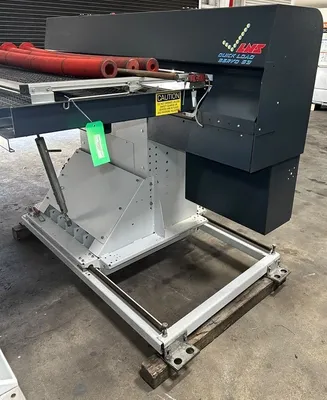

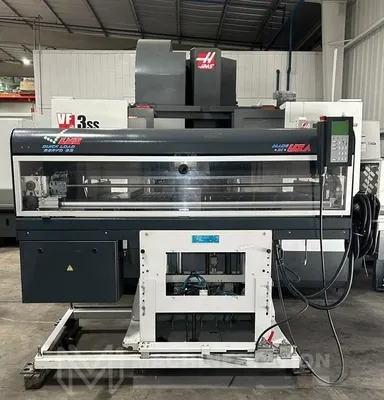

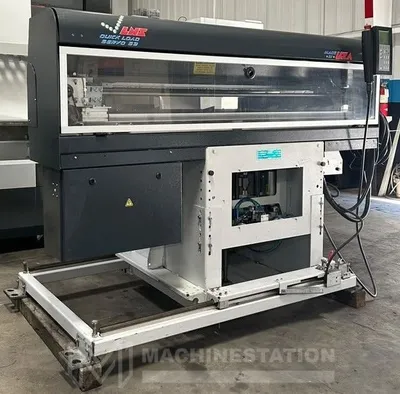

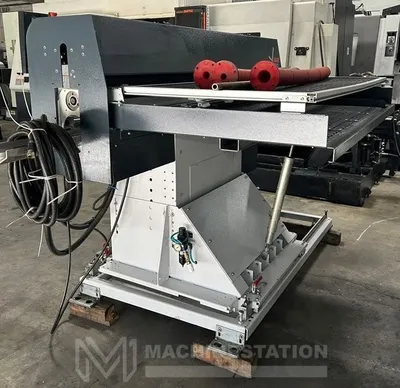

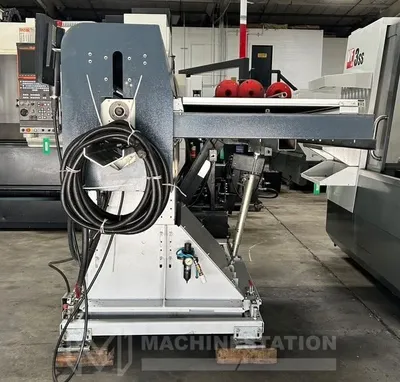

USED 2007 LNS QL SERVO S3

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

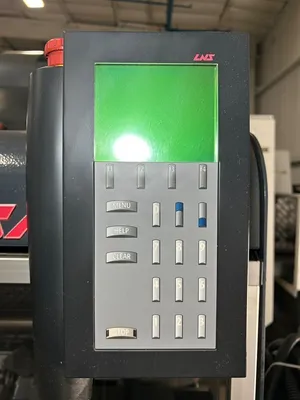

Remote Control
Servo-Driven Operation
Quick Changeover: Fast and Easy Changeovers Between Different Bar Diameters
Versatile Material Handling: Accommodates Round, Hexagonal, Square
Automatic Bar Diameter Adjustment For Bar Selection Fingers
Automatic Bar Centerline Alignment
Automatic Torque and Speed Adjustment
Parts Library
High Speed Feed Rate
Large Capacity Magazine Tray
Front Loading of the Magazine Tray
Linear Ways: Linear Ways For Smooth and Accurate Feeding
Safety Features

Capacity:
Bar Diameter Range (Min – Max): 0.23 inch – 4.7 inch
Bar Length Range (Min – Max): 5.1 inch – 63 inch
Max bar stock weight: 147.6 lbs

Applications:
Type of Headstock: Fixed / Travelling
X Axis Retraction Travel: 23.6 inch

Changeovers:
Partial Changeover
Complete Changeover

Driving Systems and Bar Support:
Motor: Servo
Drive: Notched Belt

General:

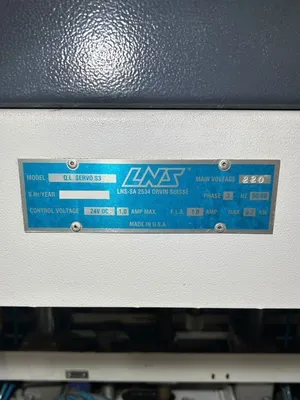

Power: 220v/ 3-Phase/ 50-60 Hz
Overall Dimensions: 81 inch x 71 inch x 50 inch High Approx.
Weight: 1750 lbs Approx.
