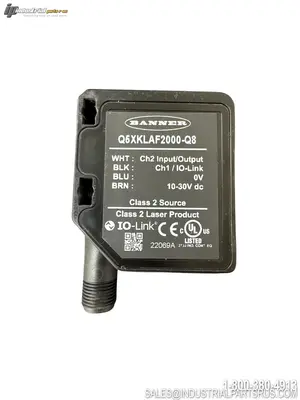

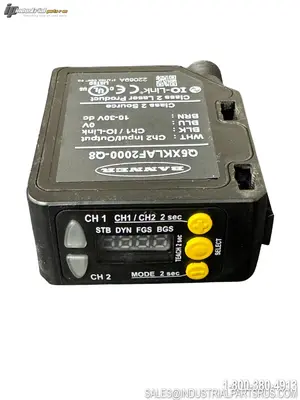

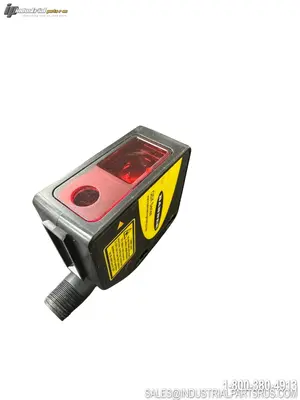

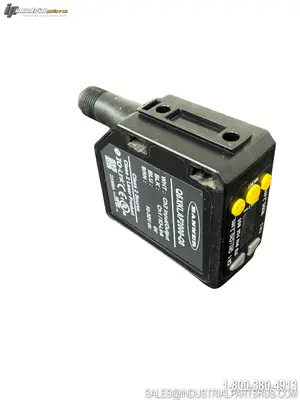

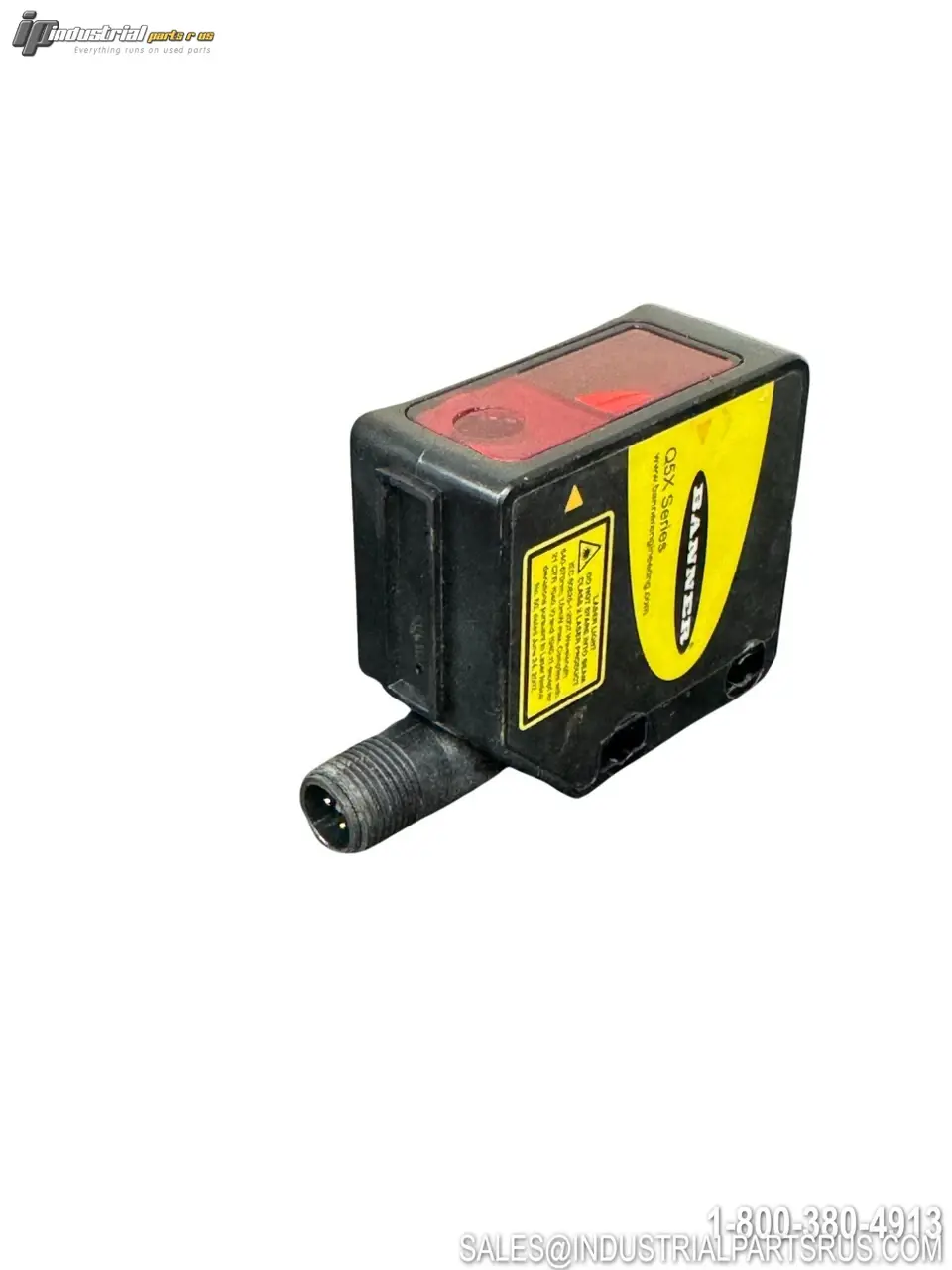

USED BANNER Q5XKLAF2000-Q8

The Banner Engineering Q5X Series is a high-power, multi-function laser measurement sensor featuring background and foreground suppression technology in a cost-effective, industry-standard rectangular housing. Using a visible red Class 2 laser (650 nm) and laser triangulation principles, the Q5X delivers reliable detection of the most challenging targets including dark, clear, reflective, and multicolor objects. The series is programmable via onboard push buttons, remote teach, IO-Link, or an optional Remote Sensor Display (RSD), and is available in multiple sensing range and output configurations.
Specification
Value
Brand
Banner Engineering
Series / Model
Q5X
Product Type
Laser Measurement / Photoelectric Sensor
Sensing Technology
Laser Triangulation / Background-Foreground Suppression
Sensing Beam
Visible Red Laser, 650 nm, Class 2
Sensing Range
50 mm to 10,000 mm (varies by model: 2000 / 3000 / 5000 / 10000 mm max)
Minimum Sensing Distance
50 mm (5000/10000 mm models); 95 mm (2000/3000 mm models)
Supply Voltage
10–30 V DC (Class 2 supply); 12–30 V DC (analog output models); 10% max ripple
Output Type
Discrete: 1–2 NPN/PNP configurable outputs with IO-Link; Analog: 4–20 mA or 0–10 V DC (select models)
Output Current Rating
50 mA maximum
IO-Link
Yes (IO-Link Device)
PFM Output
Yes (Pulse Frequency Modulation, on select models)
Connection Type
4-pin or 5-pin M12 Rotatable / Integral QD (270° rotatable)
IP Rating
IP67 per IEC 60529
NEMA Rating
NEMA 4X
Housing Style
Rectangular
Housing Material
ABS
Lens Cover Material
PMMA Acrylic
Lightpipe Material
Polycarbonate
Min Operating Temperature
-10°C (14°F)
Max Operating Temperature
50°C (122°F)
Relative Humidity
35% to 95%
Power Consumption
<1 W (2000/3000 mm models); <1.4 W (5000/10000 mm models)
Response Time
User selectable: 15, 25, or 50 ms (JAM model); 0.5–3 ms (standard models)
Delay at Power-Up
2500 ms
Supply Protection
Protected against reverse polarity and transient overvoltages
Output Protection
Protected against continuous overload and short circuit
Max Ambient Light
Up to 5000 lux at 1000 mm; up to 2000 lux at 2000 mm
Adjustments
Push Button; Remote Teach; IO-Link; Optional Remote Sensor Display (RSD)
Certification
cUL; MIL-STD-202G
Sensing Mode
Proximity / Background-Foreground Suppression
Jam Detection
Available (select -JAM models only)
Applications
Material Handling, Packaging, Lumber & Construction, Automotive
We warranty all items for 30 days from date of purchase.
