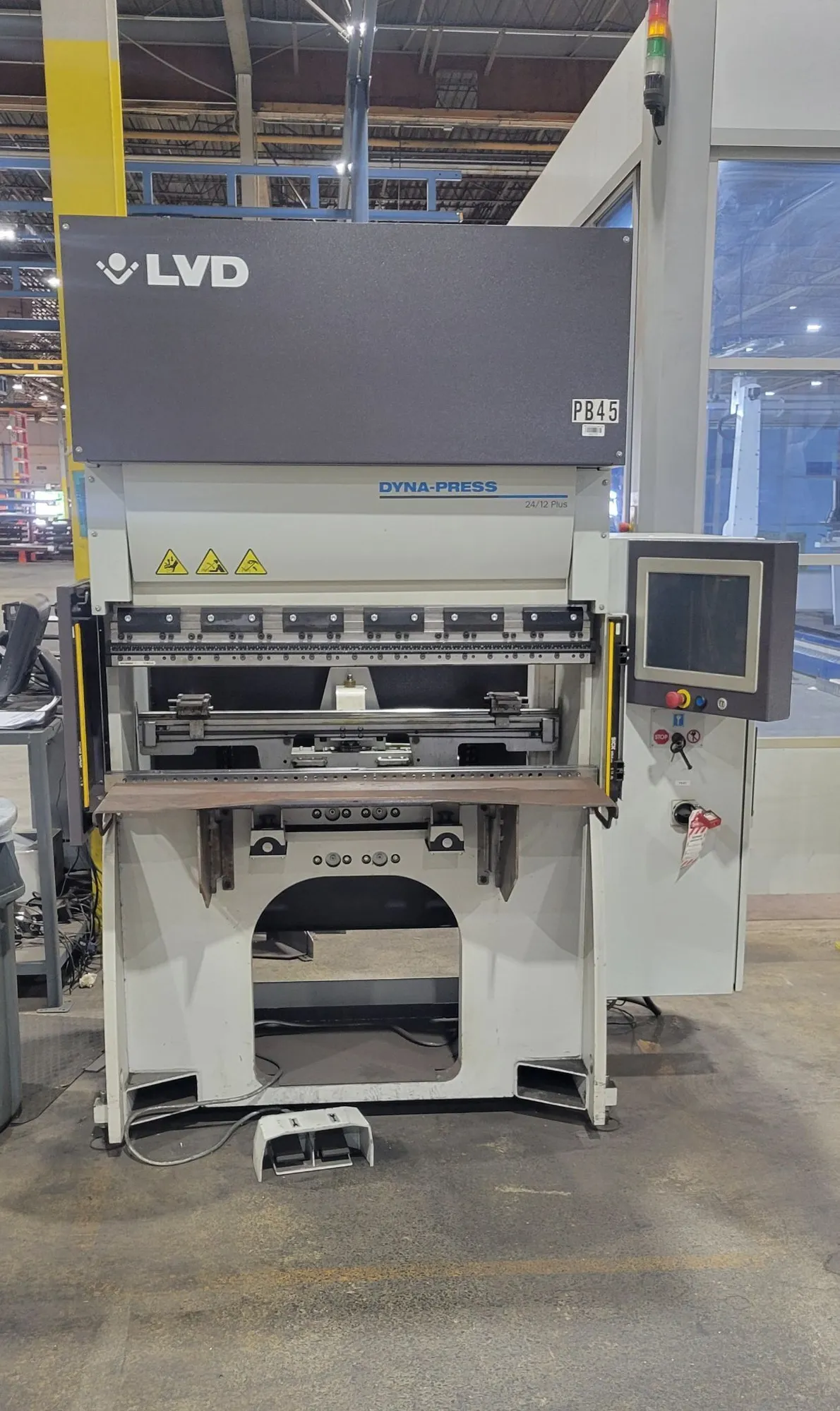

USED 2019 LVD STRIPPIT DYNA-PRESS 24/12

LVD STRIPPIT DYNA-PRESS 24/12 ELECTRIC SERVO PRESS BRAKE, NEW: 2019

PRESSING FORCE: 26 TONS
STROKE: 5.9”
DISTANCE TABLE/RAM: 13.7"
MAX. WORKING LENGTH: 49”
WORKING HEIGHT: 35”
DISTANCE BETWEEN UPRIGHTS: 47”
GAP (LEFT SIDE): 3.9”
SPEEDS:
- APPROACH: UP TO 236 IPM
- WORKING SPEED: UP TO 59 IPM
- RETURN SPEED: 236 IPM
ELECTRICITY CONSUMPTION: 6kW
TOOLING STYLE: WILA
APPROX. DIMENSIONS: ?(W) x 46”(W) x 86”(H)
APPROX. WEIGHT: 5,000 LBS

15” TOUCH-B CONTROL
4-AXIS BACK-GAUGE (X, R, Z1-Z2)
MANUAL CLAMPING
