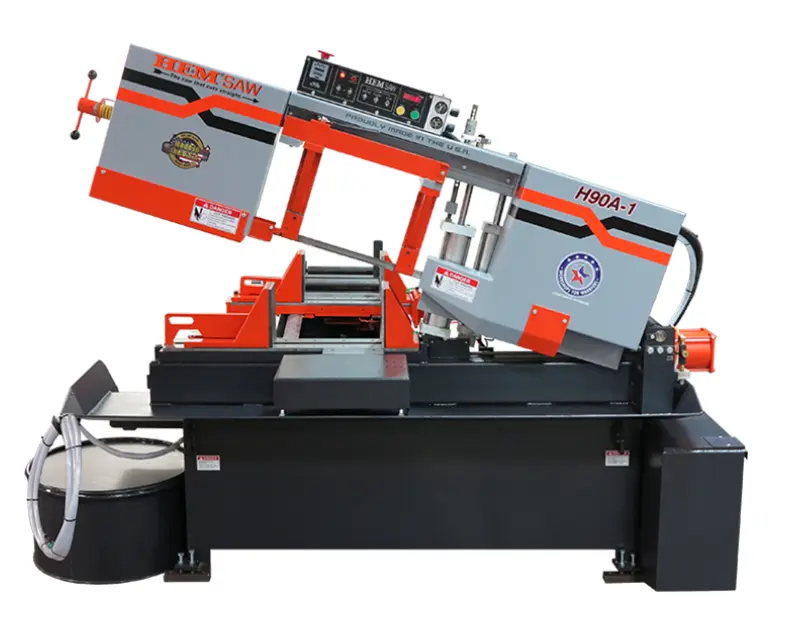

NEW 2025 HE&M SAW H90A-1
Overview
Description
The H90A-1 offers accurate cuts on small solids and shapes. It is perfect for cutting multiple parts of the same length up to 24” long automatically. This simple to use scissor-type band saw has a long track record for years of reliable service.
Specifications
| Rect-Cap (H) | 0" | 0 mm |
|---|---|---|
| Rect-Cap (W) | 0" | 0 mm |
| Rounds-Cap | 0" | 0 mm |
| Square-Cap | 0" | 0 mm |
| Power | 3 hp | 2.2 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 154" | 3,911.6 mm |
Rectangular Capacity 0-12.75" W x 0-12.75" H
Square Capacity 0-12" (Square)
Round Capacity 0-12.75" (Diameter)
Bar-feed 0-24" (Stroke Air - Single Index)
Motor 3 HP
Hydraulic Motor N/A
Operation Type Automatic
Power Source Air
Weight N/A
Blade Type Bandsaw
Blade Size 12' 10" L x 1" H x .035"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Equipped With
Standard Features:
Control Console on Top of Saw - Bi-Function Control
18" Discharge Support
Vise - Adjustable Main & Feed
Adjustable Clamping Force
2 Hold Down Fixtures
Guide Arm - Manual Adjustment
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Vertical Alignment Bar on Bar-Feed
Blade Brush
Broken Blade Function
Out-of-Stock Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
Optional Features to add:
Vise - 3rd on Feed
Interlocking Vise Jaws
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Light Clamping Pressure
24" Solid Discharge Table
Spray Mist Lubrication
5' Idle Roller Stock Table
10' Idle Roller Stock Table
Single-Phase Voltage
