USED VEMAG ROBOT 500

Manufacturer Information
Manufacturer: Reiser / Vemag
Reiser supplies food processing and packaging equipment for meat, poultry, plant-based foods, bakery, dairy, and prepared food manufacturing. Reiser offers Vemag vacuum filling and portioning systems designed for accurate product handling, extrusion, forming, and continuous food production.
Vemag is recognized for its double-screw feeding technology, which provides controlled product movement and portioning for a variety of pumpable food materials.
This 2021 Reiser Vemag Robot 500 combines vacuum extrusion, portion control, and a sanitary flattening conveyor in a compact food processing system.
Description

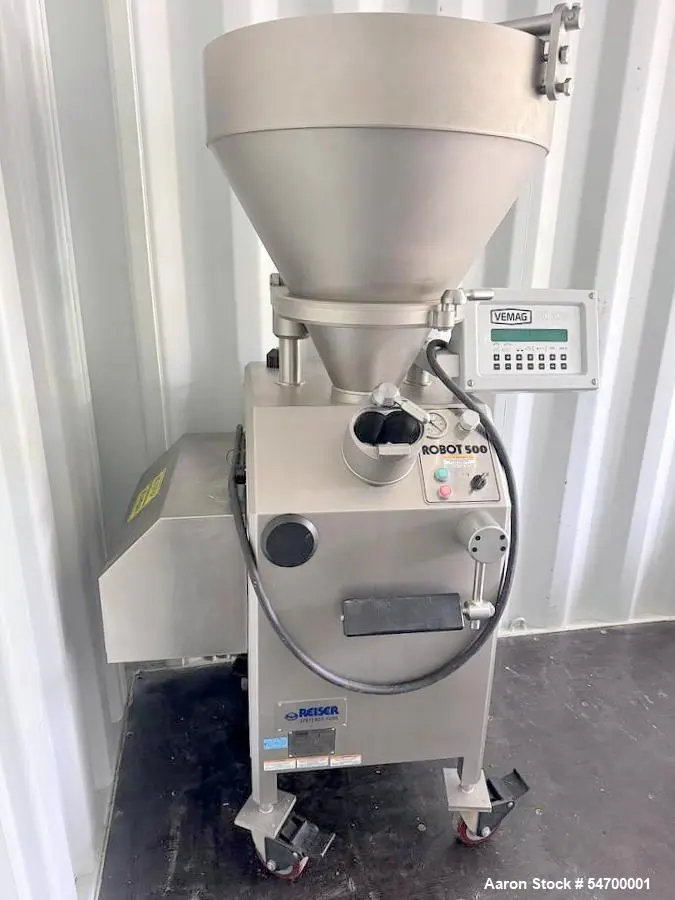

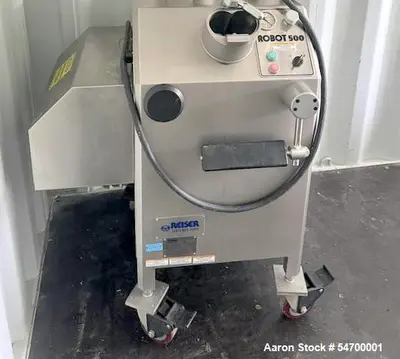

Available for sale is a used 2021 Reiser Vemag Robot 500 stainless steel vacuum extruder with sanitary flattening conveyor, previously used for manufacturing plant-based protein patties.
The machine features a double-screw product feeding system designed to provide consistent product movement for extrusion, filling, and portioning applications.
The Robot 500 has a stated production capability of up to 450 portions per minute, with adjustable portion weights ranging from 5 to 30,000 grams and filling rates of up to 2,500 kg per hour.

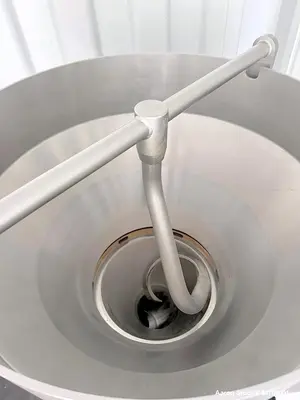

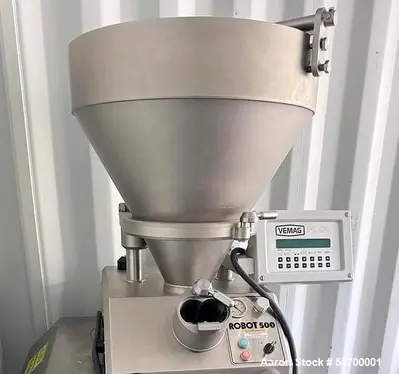

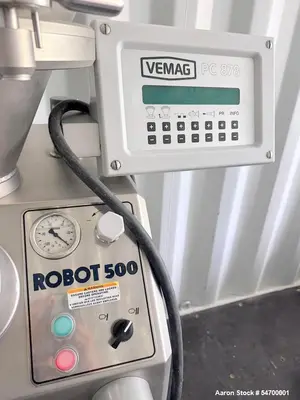

The system includes a 16 m³/hour vacuum system, 110-liter product hopper, and Vemag PC 878 digital controls for managing portion settings and processing parameters.

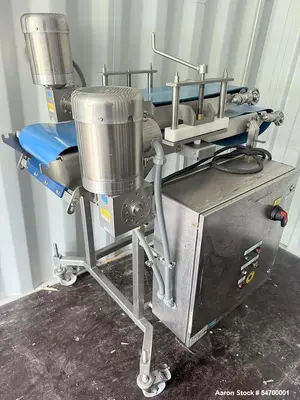

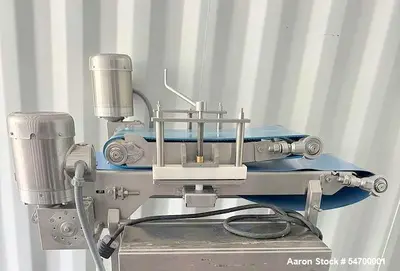

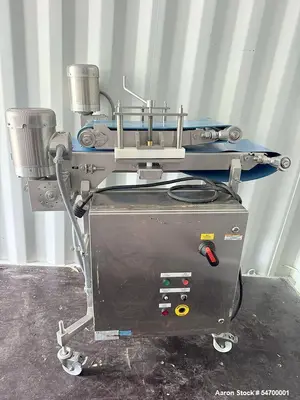

A sanitary blue-belt flattening conveyor is included, providing downstream product handling and flattening capabilities for compatible formed products, including plant-based patties and other food portions.
The stainless steel machine is mounted on casters for mobility and measures approximately 40"L x 54"W x 70.5"H, with a reported weight of 882 lbs.

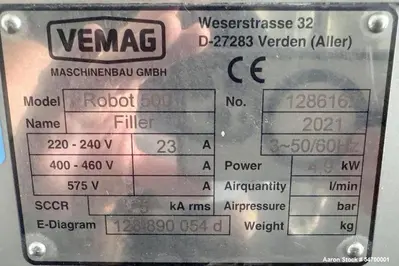

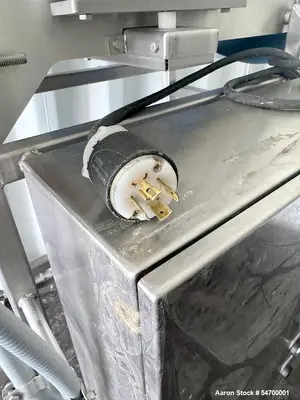

Electrical requirements are 220–240V, 3-phase, 50/60 Hz, 23 amps, 4.9 kW.
This Vemag Robot 500 offers a versatile solution for food manufacturers seeking equipment for plant-based protein processing, meat portioning, extrusion, forming, and filling applications.
Specifications

Specification

Details

Manufacturer

Reiser / Vemag

Model

Robot 500

Equipment Type

Vacuum Extruder / Portioning & Filling System

Condition

Used

Year Built

2021

Construction

Stainless Steel

Feeding System

Double-Screw

Maximum Portioning Speed

Up to 450 Portions/Minute

Portion Weight Range

5–30,000 Grams

Maximum Filling Rate

Up to 2,500 kg/Hour

Vacuum System

16 m³/Hour

Hopper Capacity

110 Liters

Control System

Vemag PC 878

Portion Weight Adjustment

Digital / Adjustable

Conveyor

Sanitary Blue-Belt Flattening Conveyor

Mobility

Mounted on Casters

Overall Length

Approx. 40"

Overall Width

Approx. 54"

Overall Height

Approx. 70.5"

Weight

Approx. 882 Lbs.

Voltage

220–240V

Phase

3 Phase

Frequency

50/60 Hz

Amperage

23 A

Power

4.9 kW

Serial Number

1286162

Previous Application

Plant-Based Protein Patties

Production rates and portioning accuracy depend on product viscosity, temperature, formulation, extrusion attachments, portion size, conveyor configuration, and operating conditions. Overall dimensions and weight should be confirmed for the complete system, including the conveyor.
Typical Applications

Plant-based protein processing

Plant-based patty production

Meat portioning

Food extrusion

Vacuum filling

Patty forming

Prepared food manufacturing

Sausage production

Ground meat processing

Dough portioning

Protein product forming

Automated food processing lines

Products This Vacuum Extruder Could Be Used For

Plant-based burger patties

Vegan protein patties

Vegetarian meat alternatives

Ground beef patties

Chicken patties

Turkey patties

Sausage products

Meatballs

Fish cakes

Plant-based nuggets

Dough portions

Other compatible pumpable food products

Product compatibility depends on formulation, particle size, viscosity, required forming attachments, and downstream equipment. Additional tooling may be required for certain products.
Frequently Asked Questions
- What is the maximum production capacity of the Vemag Robot 500? The machine is rated for filling rates of up to 2,500 kg/hour and portioning speeds of up to 450 portions per minute, depending on the product and operating configuration.
- What portion sizes can this machine produce? The stated portion weight range is 5 to 30,000 grams, with adjustable settings through the Vemag PC 878 digital control system.
- Does this Vemag Robot 500 include a conveyor? Yes. The system includes a sanitary blue-belt flattening conveyor for downstream product handling and flattening of compatible food portions.
- What was this machine previously used for? The equipment was previously used for plant-based protein patty production, making it particularly relevant to manufacturers developing or producing meat alternatives.
- What are the electrical requirements? The machine operates on 220–240V, 3-phase, 50/60 Hz, with a stated electrical load of 23 amps and 4.9 kW.
- Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with equipment preparation, loading, domestic and international freight, customs documentation, and logistics coordination for this Reiser Vemag Robot 500 and its sanitary flattening conveyor.
