Used 2023 Ingeteam INGECON H2 11.24 MW Hydrogen Electrolyzer Power System – Dual FSK E12000 Stations with IGBT Rectifiers

Manufacturer Information
Manufacturer: Ingeteam
Ingeteam is a manufacturer of industrial power electronics, electrical conversion systems, automation equipment, and renewable energy technologies. Its equipment is used in renewable energy generation, energy storage, hydrogen production, industrial power conversion, and electrical infrastructure applications.
The INGECON H2 product line is designed to supply controlled DC power for hydrogen electrolyzers, converting medium-voltage AC power into the regulated DC electrical output required for electrolysis.
This 2023 Ingeteam INGECON H2 Power Station System includes two FSK E12000 power stations and four H2 E-lyzer IGBT rectifiers, configured for an 11.24 MW hydrogen electrolyzer installation.
Description
Available for sale is a used 2023 Ingeteam INGECON H2 industrial power conversion system, originally designed for an 11.24 MW hydrogen electrolyzer application.

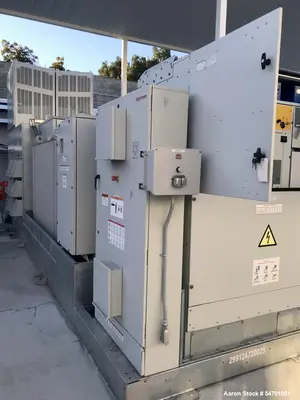

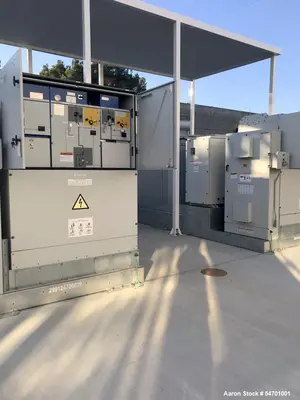

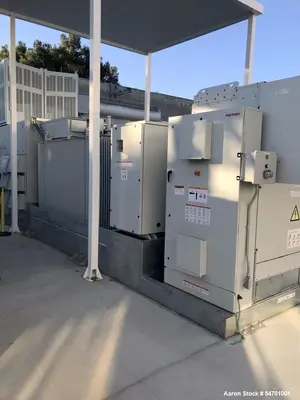

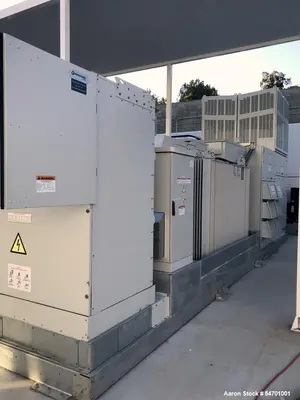

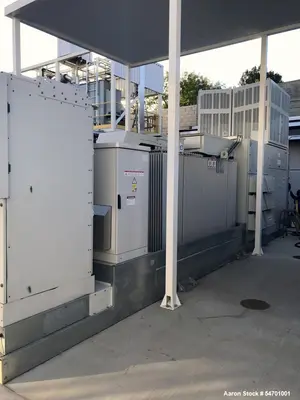

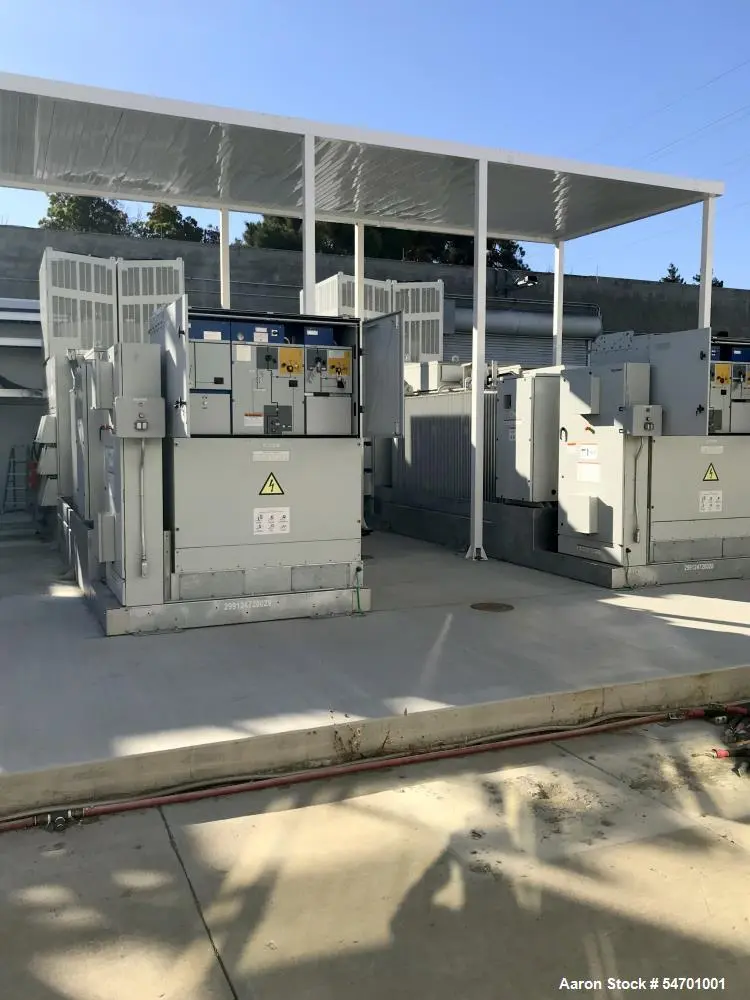

The system consists of two skid-mounted Ingeteam FSK E12000 power stations and four H2 E-lyzer IGBT rectifiers with integrated liquid cooling, providing a comprehensive medium-voltage AC-to-DC conversion solution for large-scale industrial electrolysis.

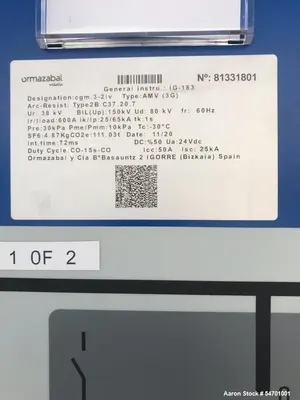

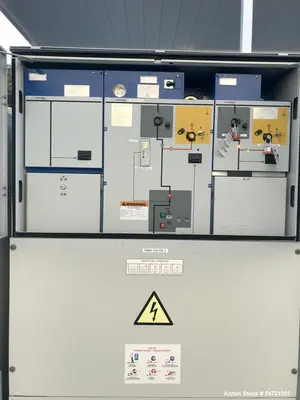

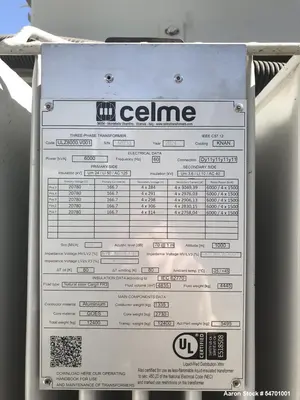

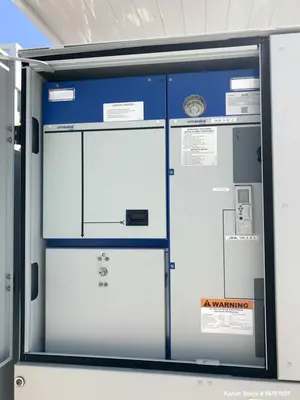

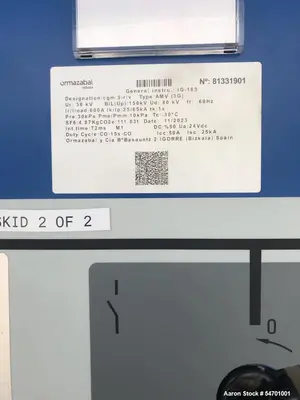

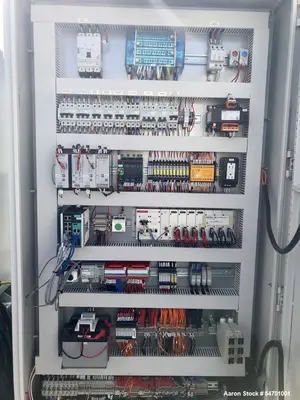

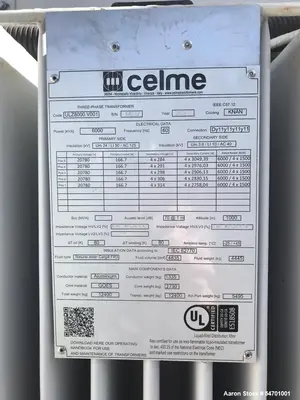

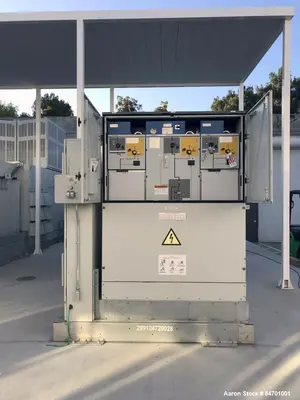

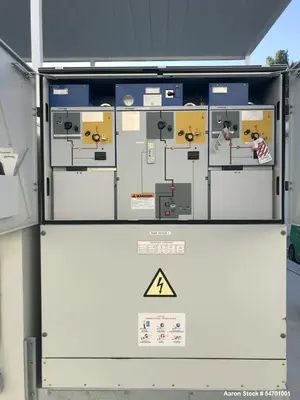

Each power station incorporates medium-voltage switchgear, a step-down transformer, an auxiliary transformer, a low-voltage panel, and integrated controls.
The equipment operates with a rated 20.78 kV medium-voltage input and is specified for 3,000 kVA AC input power per station. The DC conversion system features a maximum DC voltage of 1,300V, a nominal DC current of 4,400 amps, and a maximum DC current of 7,700 amps.
The IGBT rectifiers feature a stated 97% efficiency, adjustable power factor, and less than 3% harmonic distortion, supporting efficient power conversion and electrical integration.
Communications capabilities include Modbus/TCP or Profibus, allowing integration with compatible plant automation, supervisory control, and monitoring systems.

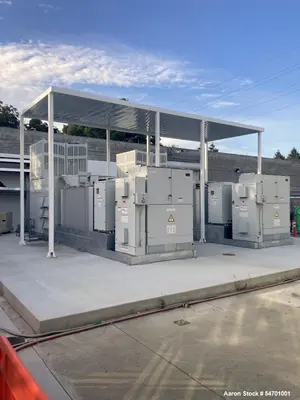

Designed for outdoor installation, the equipment has a specified operating temperature range of -20°C to +40°C.
Each power station measures approximately 37' 9" long x 6' 11" wide x 13' 11" high, making this a substantial industrial electrical system requiring specialized transportation and installation planning.
This equipment could be suitable for green hydrogen production, industrial electrolysis, renewable energy hydrogen projects, and other compatible high-capacity AC-to-DC power conversion applications.
Specifications

Specification

Details

Manufacturer

Ingeteam

Product Line

INGECON H2

Power Station Model

FSK E12000

Equipment Type

Hydrogen Electrolyzer Power Conversion System

Condition

Used

Year Built

2023

Designed Electrolyzer System Capacity

11.24 MW

Number of Power Stations

(2)

Number of Rectifiers

(4)

Rectifier Type

H2 E-lyzer IGBT

Rectifier Cooling

Integrated Liquid Cooling

AC Input Power

3,000 kVA Per Station

Rated Medium-Voltage Input

20.78 kV

Maximum DC Voltage

1,300V

Nominal DC Current

4,400 Amps

Maximum DC Current

7,700 Amps

Stated Rectifier Efficiency

97%

Power Factor

Adjustable

Harmonic Distortion

Less Than 3%

Communications

Modbus/TCP or Profibus

Installation Configuration

Outdoor-Rated

Operating Temperature

-20°C to +40°C

Station Length

Approx. 37' 9"

Station Width

Approx. 6' 11"

Station Height

Approx. 13' 11"

Mounting

Skid-Mounted

Included Equipment

(2) Ingeteam FSK E12000 power stations

(4) H2 E-lyzer IGBT rectifiers with integrated liquid cooling

Medium-voltage switchgear

Step-down transformers

Auxiliary transformers

Low-voltage electrical panels

Integrated control systems

Communication interfaces

The 11.24 MW figure describes the intended electrolyzer system. The supplied 3,000 kVA rating is stated per power station and should not be assumed to establish 11.24 MW of continuous AC input capacity for the two-station package. Rectifier-level versus station-level DC ratings, simultaneous operating limits, cooling requirements, and total system capacity should be verified against the original engineering documentation.
Typical Applications

Green hydrogen production

Industrial hydrogen electrolysis

PEM electrolyzer power supply

Alkaline electrolyzer power supply

Renewable energy hydrogen projects

Power-to-hydrogen installations

Industrial AC-to-DC power conversion

Hydrogen production pilot and commercial plants

Energy storage and conversion infrastructure

Industrial electrochemical processing

Renewable power integration

Large-scale DC power supply applications

Products and Processes This System Could Be Used For

Green hydrogen

Industrial-grade hydrogen

Hydrogen for ammonia production

Hydrogen for methanol production

Refinery hydrogen supply

Hydrogen for synthetic fuel production

Hydrogen for steelmaking processes

Hydrogen for fuel-cell applications

Hydrogen for energy storage projects

Renewable electricity-to-hydrogen conversion

Compatible industrial electrolysis processes

Other high-current industrial DC power applications

This is electrical power conversion equipment, not a complete hydrogen production plant. Electrolyzer stacks, hydrogen purification, compression, storage, and other process equipment are not identified as included. Application compatibility depends on electrolyzer technology, voltage/current requirements, cooling infrastructure, and electrical system design.
Frequently Asked Questions
- What is included in this Ingeteam INGECON H2 system? The package includes two FSK E12000 skid-mounted power stations and four H2 E-lyzer IGBT rectifiers, along with associated transformers, switchgear, electrical panels, and integrated controls.
- What size hydrogen electrolyzer system was this equipment designed for? The system was designed for an 11.24 MW hydrogen electrolyzer installation. Actual usable power capacity should be verified against the electrical ratings and system configuration.
- What are the electrical specifications? Each station has a stated 3,000 kVA AC input rating and 20.78 kV medium-voltage input. The supplied DC specifications include 1,300V maximum voltage, 4,400A nominal current, and 7,700A maximum current.
- Does the system include liquid-cooled rectifiers? Yes. The package includes four H2 E-lyzer IGBT rectifiers with integrated liquid cooling, with a stated rectifier efficiency of 97%.
- Can this equipment be installed outdoors? The stations are described as outdoor-rated, with an operating temperature range of -20°C to +40°C. Installation must be engineered for site-specific electrical, environmental, cooling, and safety requirements.
- Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with specialized rigging, loading coordination, oversized-load transportation, domestic and international freight, customs documentation, and logistics planning. Each station is approximately 37' 9" long and 13' 11" high, so transportation height, route clearances, equipment weights, and loading arrangements must be evaluated.
