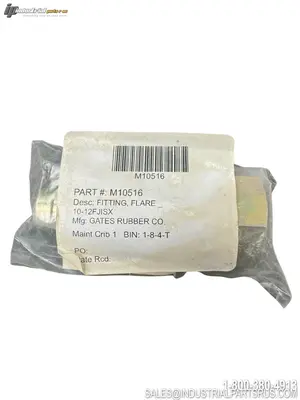

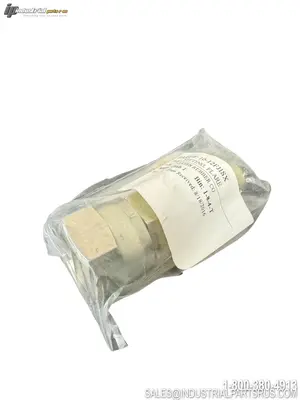

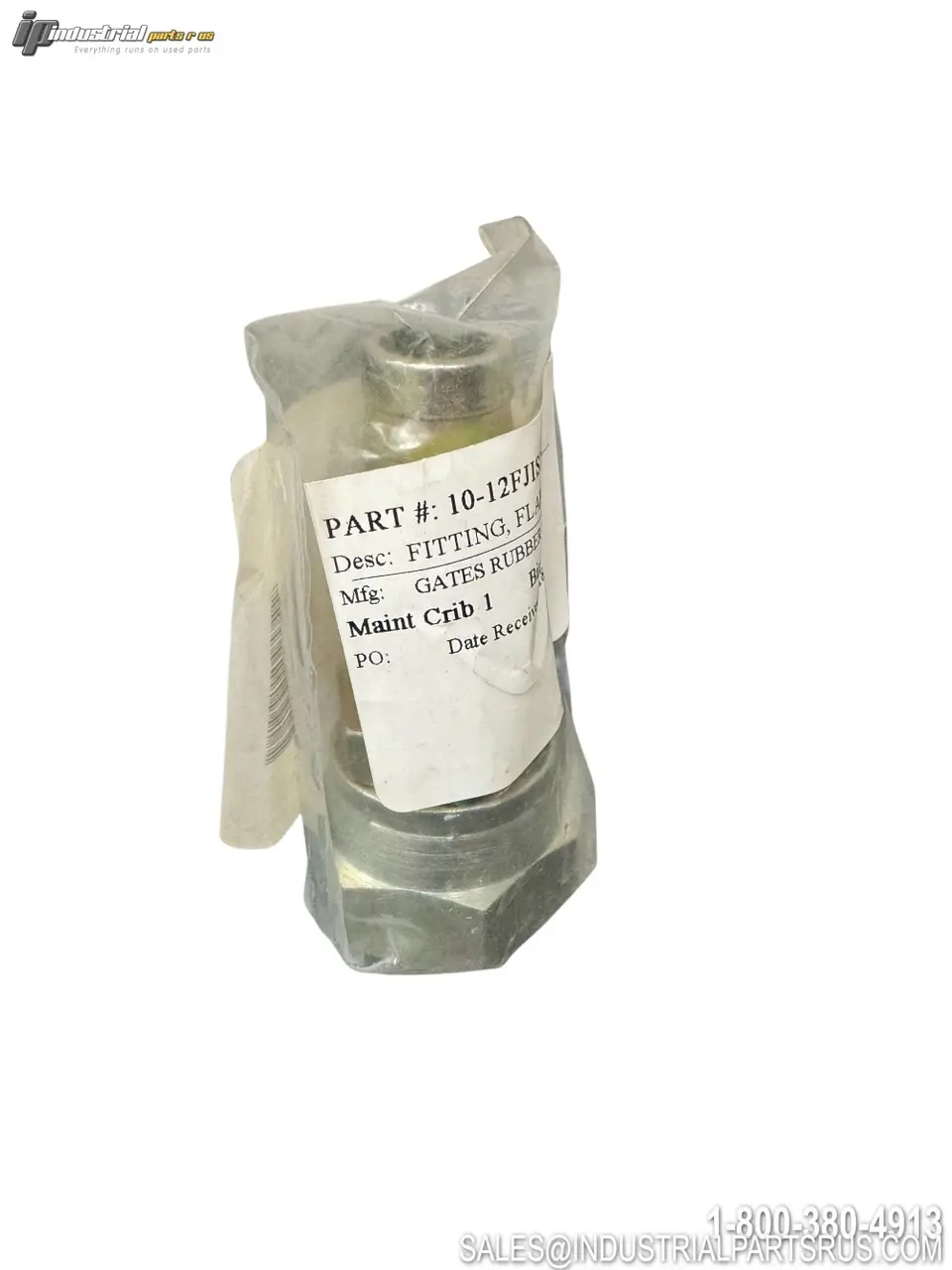

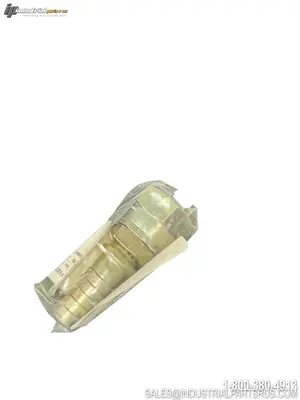

NEW GATES 10-12FJISX

The Gates 10-12FJISX is a MegaCrimp® series hydraulic crimp-on hose fitting featuring a Female Japanese Industrial Standard (JIS) 30° flare swivel end. It is designed for use with 5/8" inside diameter (dash-10) wire braid hydraulic hose and connects to equipment ports using a 3/4-14 BSP (British Standard Pipe Parallel) thread, conforming to JIS B 0202 thread form. The fitting uses Gates' patented "C" insert pre-assembled ferrule technology to evenly distribute crimping forces for a concentric, leak-free seal across various hose outside diameters on both 1-wire and 2-wire braid hydraulic hose.
Specification
Value
Brand
Gates
Model / Part Number
10-12FJISX
Product Series
MegaCrimp®
Fitting Type
Female Japanese Industrial Standard (JIS) 30° Flare Swivel
Fitting Shape / Configuration
Straight
Connection Type 1 (Hose End)
Crimp-On
Connection Type 2 (Port End)
Female JIS 30° Flare Swivel
Hose Dash Size
-10
Hose Inside Diameter
5/8 in (15.9 mm)
Terminal / Thread Dash Size
-12
Thread Size
3/4-14 BSP (JIS B 0202 Parallel)
Mating / Flare Angle
30°
Seal Type
Mated Angle (Metal-to-Metal 30° Cone Seat)
Swivel
Yes
Material
Steel
Finish / Coating
TuffCoat™
Standards Met
ASTM B-117, SAE, JIS B 0202
Compatible Hose Types
Various ODs on 1-Wire & 2-Wire Braid Hydraulic Hose
Fitting Connection Family
Crimp-On to JIS
Number of Ports
2
Port Gender
Female (both ports)
Manufacturer
Gates Corporation
We warranty all items for 30 days from date of purchase.
