USED NIKON V-12B

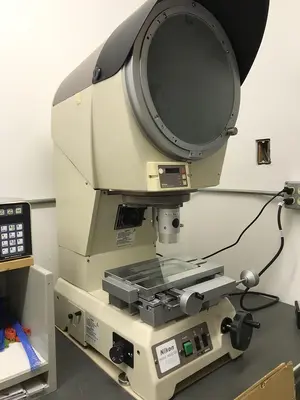

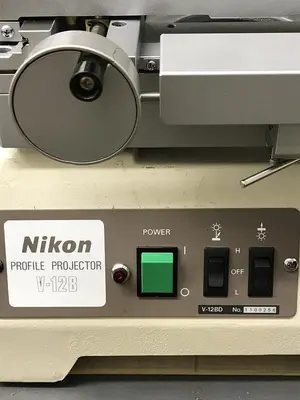

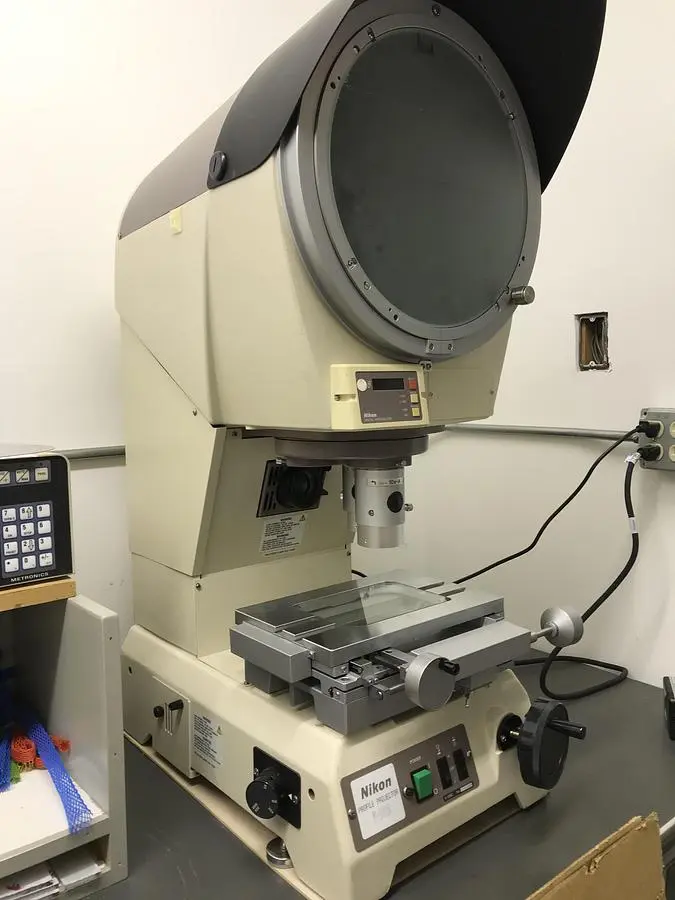

Nikon V-12B Vertical Projection Optical Comparator Measuring Machine w/DRO

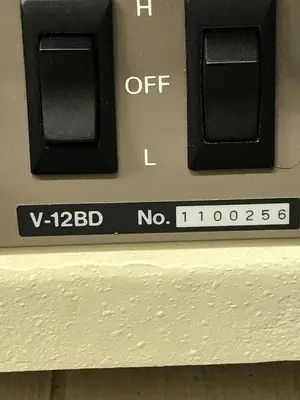

Bench model, S/N 1100256
Base Footprint: 13-1/2”w X 22-1/4”D
Overall Measurements: 14-3/4”w X 38-3/4”h X 27-1/2” d
General Specifications:

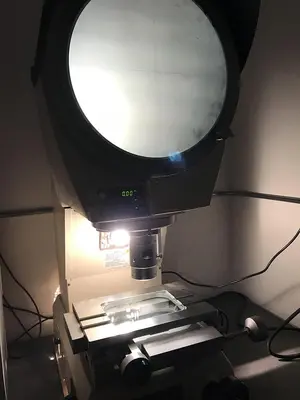

            Screen diameter 12” (11.8” usable)

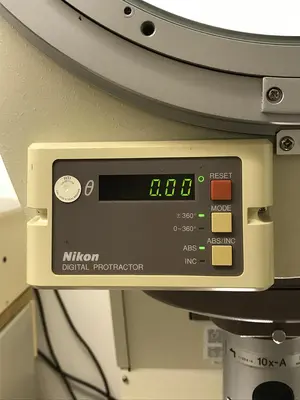

            360 degree rotating capacity w/ Nikon Digital Readout Protractor
            Staging Table Size: 11.2” x 7.5”

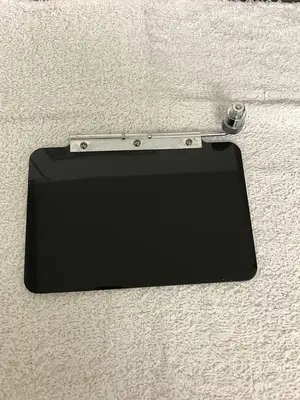

            Staging Table Glass Insert: 6.69” x 4.7”
            X-Axis Table Travel: 3.9”
            Y-Axis Table Travel: 1.9”
            Z-Axis Table Travel: 2.9”
Uses 24v-150w halogen lamps for both projection and Surface Illumination

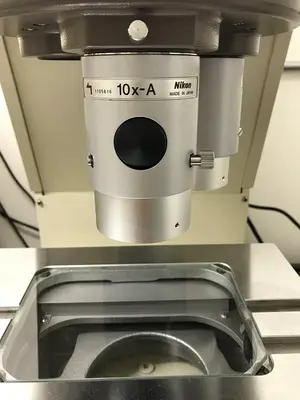

3-Position Manual Lens Turret

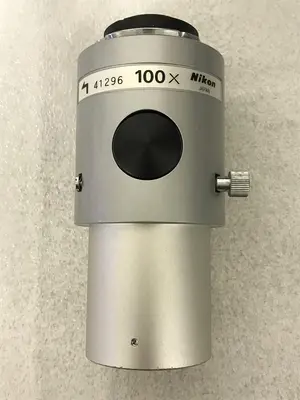

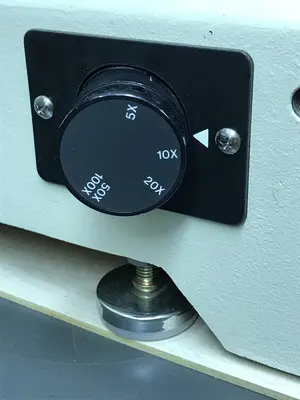

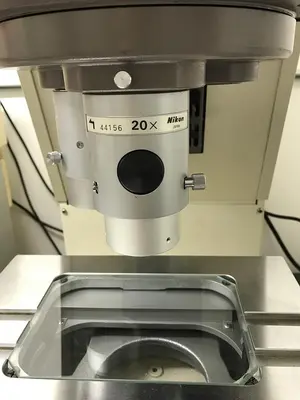

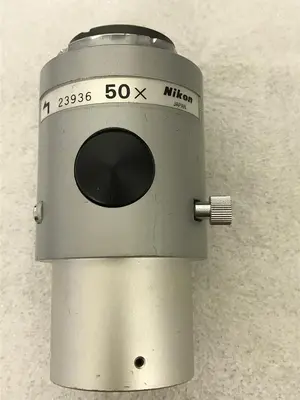

10x 20x 50x 100x lens included
Approximate Weight:  210 Lbs

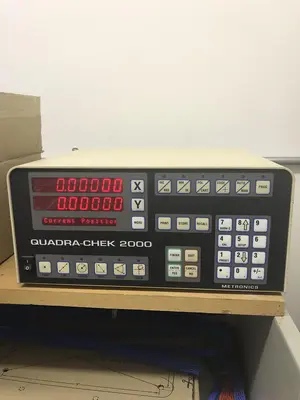

Quadra-Chek 2000 DRO by Metronics

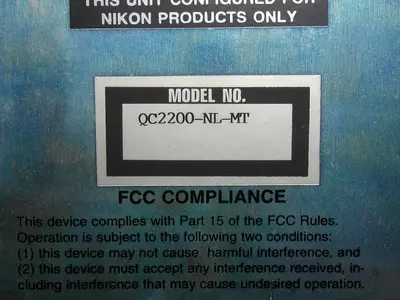

Model QC2200-NL-MT,  S/N 38889, copyright 1989-1995
2-Axis DRO Reads “X” and “Y” Axis
Measures: Distance, Points, Lines, Circles, Angles and Skew

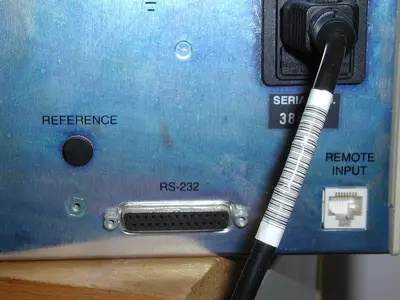

RS232 Port
Remote Input Port
Power cable included

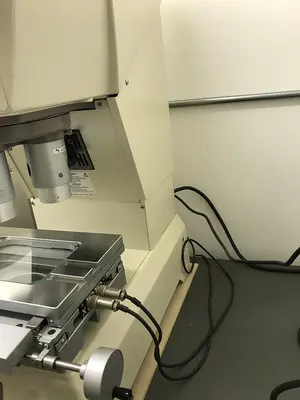

Encoder cables included
.5 Amp max input
43 Hz to 63 Hz
Fuse: 1 amp 250v Type T
Weights appx 176 lbs
Price: $5600
