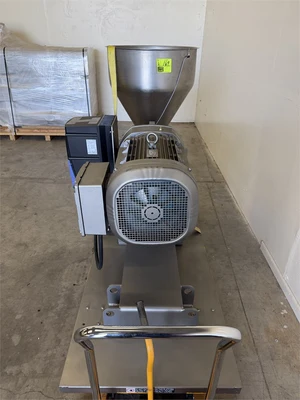

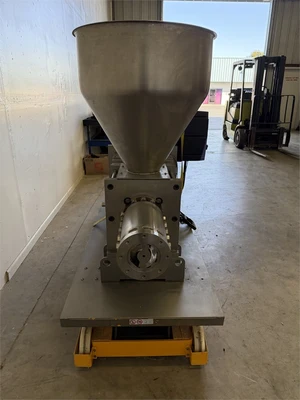

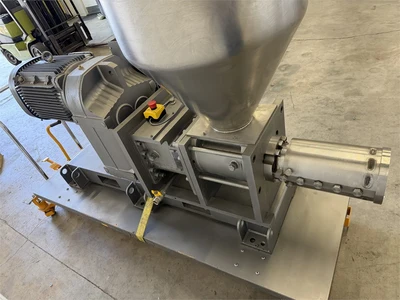

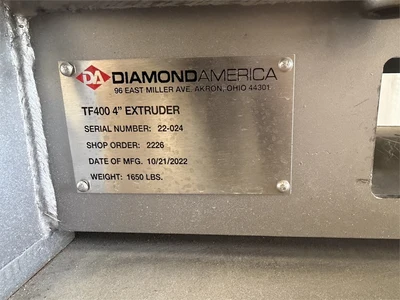

USED 2022 DIAMOND AMERICA TF400

Lot Closes:: 10/28/2026 11:15:00 AM PT
See attached sales brochure (for reference only, not all options necessarily apply)
4" Screw Diameter
2 Packing Screws
6x10 Hopper Size
33,000 Max Volume in/Hr
25 HP Motor
55 Max RPM
28,500 Torque Lbs/inch

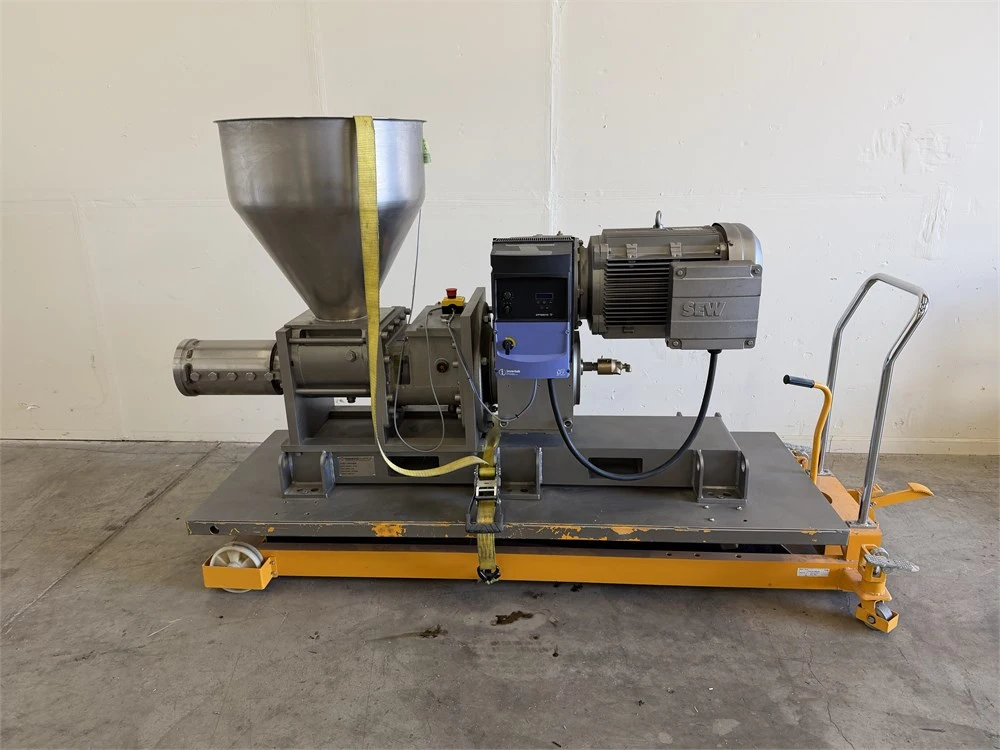

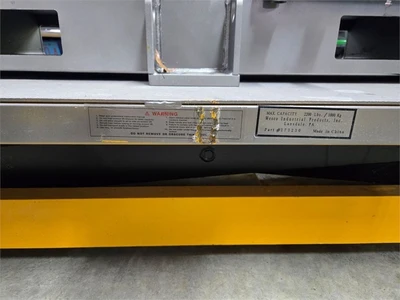

(1) Mobile Scissor Lift Table

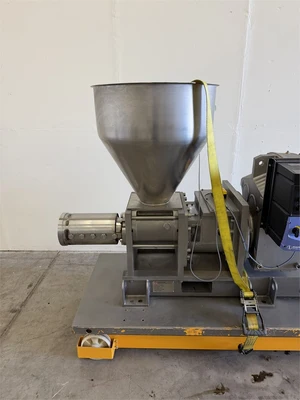

The Diamond America TF400 Cold Feed Extruders provide high performance that can deliver up to 33,000 in3/hr. The TF400 features a four-inch diameter barrel screw, simple controls, improved serviceability and twin counter-rotating packing screws to keep material moving into the system. Its optional mobile cart allows the TF400 to be positioned wherever needed for use and an open, maintenance-friendly design ensures maximum uptime.
High quality materials of construction and exceptional engineering with tight tolerances reduces wear, maintenance, and downtime.
High quality materials of construction and exceptional engineering with tight tolerances reduces wear, maintenance, and downtime.
»  Modular, open, hygienic design for easy cleaning.
»  Modular, open, hygienic design for easy cleaning.
»  High capacity bearings with increased pressure capability meet aggressive demands.
»  High capacity bearings with increased pressure capability meet aggressive demands.
»  Gear motors eliminate belt slippage for continuous performance
»  Gear motors eliminate belt slippage for continuous performance
»  All material contact components made from Food Grade Stainless Steel.

Extrusion Screw

4" diameter extrusion screw made from 17‐4PH H1150 stainless steel, hard-faced flight O.D. for increased life. Screws are available slotted or continuous based on the type of material to be processed. Screw can also be bored for cooling or heating.

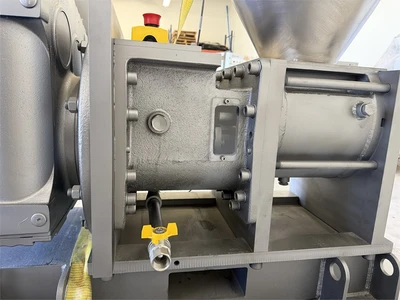

Extrusion Barrel

Available with serpentine flow channels or open jacket for liquid heating or cooling, and without jacket for electric band heating. Barrels are available with smooth or grooved, hardened Stainless Steel liners, with or without mixing pins. Barrels can also be manufactured to accept pressure/temperature probes.

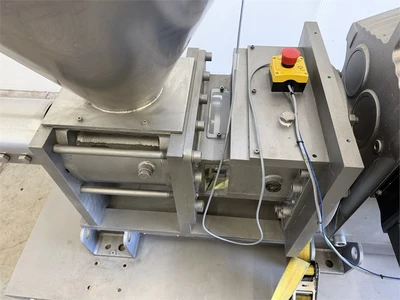

Packing Screws

Counter-Rotating Packing Screws provide a positive feed with a consistent flow of packed material, minimizing starvation and non-uniform extrudate. Packers allow one extruder to process a wider range of materials, eliminating added capital equipment cost.
»  All material contact components made from Food Grade Stainless Steel.
Extrusion Screw
4" diameter extrusion screw made from 17‐4PH H1150 stainless steel, hard-faced flight O.D. for increased life. Screws are available slotted or continuous based on the type of material to be processed. Screw can also be bored for cooling or heating.
Extrusion Barrel
Available with serpentine flow channels or open jacket for liquid heating or cooling, and without jacket for electric band heating. Barrels are available with smooth or grooved, hardened Stainless Steel liners, with or without mixing pins. Barrels can also be manufactured to accept pressure/temperature probes.
Packing Screws
Counter-Rotating Packing Screws provide a positive feed with a consistent flow of packed material, minimizing starvation and non-uniform extrudate. Packers allow one extruder to process a wider range of materials, eliminating added capital equipment cost.

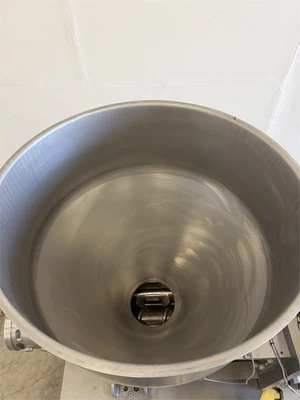

Hopper
17‐4 Stainless Steel with a 6" X 10" opening. Hopper is also machined to accept liquid cooling or heating.

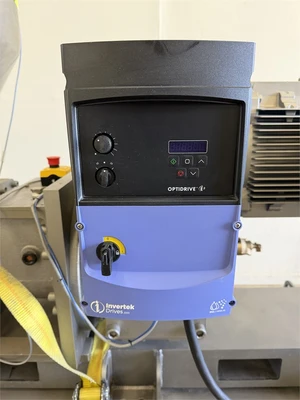

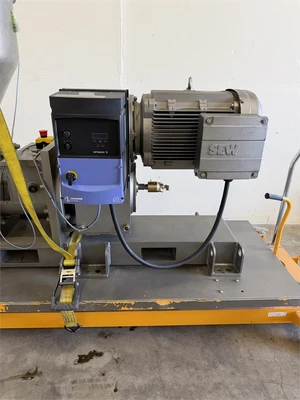

Drive Motor
Nidec uni-drive AC drive motor with bright, easy to read LED keypad and speed reference potentiometer.

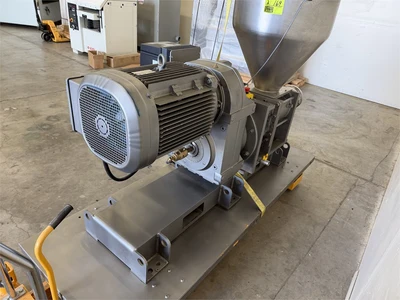

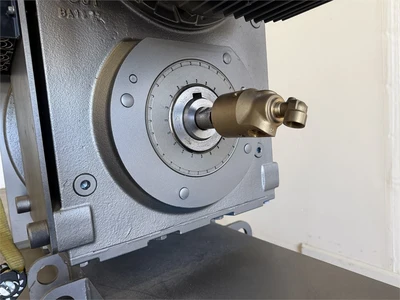

Gear Motor

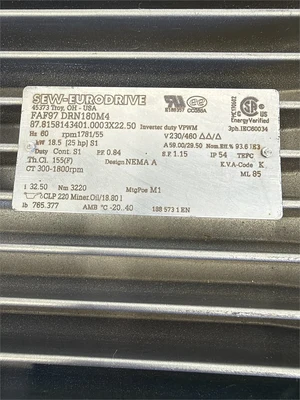

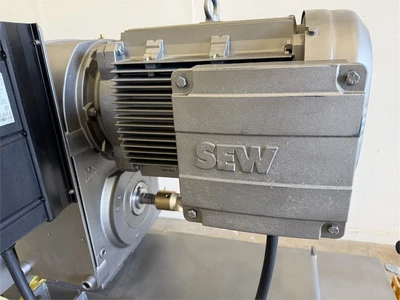

SEW‐Eurodrive 25HP AC gear motor with 55 RPM top speed and 28,500 pounds of torque per inch.
Controller
Custom built controllers with bright, easy to read LED keypad and a speed reference potentiometer.
