2020 Used TS-1200 / XKP-560 Tire Shredding & Grinding Line

TS-1200 / XKP-560 Tire Shredding & Grinding Line

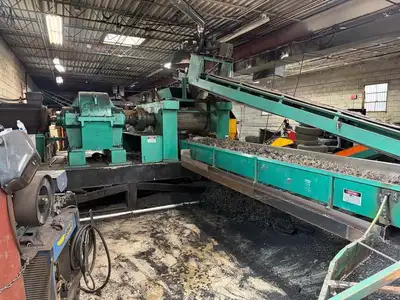

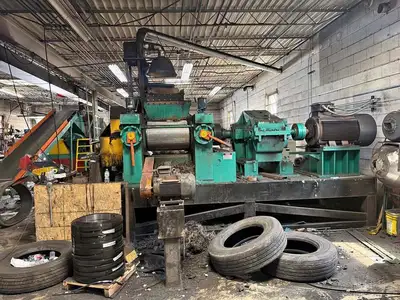

Rire processing line includes a TS-1200 tire shredder, XKP-560 rubber grinder, magnetic conveyors, vibrating screens, and material transfer conveyors.

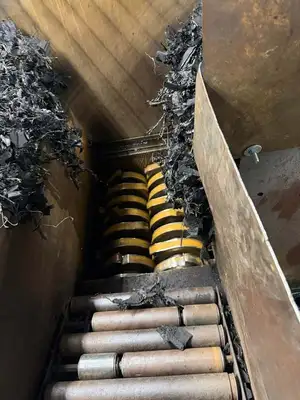

**TS-1200 Tire Shredder**

- Listed production capacity: 5 metric tons per hour
- Maximum tire feed size: 47.2" (1,200 mm) whole tires
- Listed shred size: ≤2.4" × 2.4" (60 × 60 mm)
- Knives: 18
- Motor power: (2) 75 kW motors plus (1) 5.5 kW motor
- Listed dimensions: 39.4' × 18.0' × 11.8' (12 × 5.5 × 3.6 m)
- Weight: 15.6 metric tons

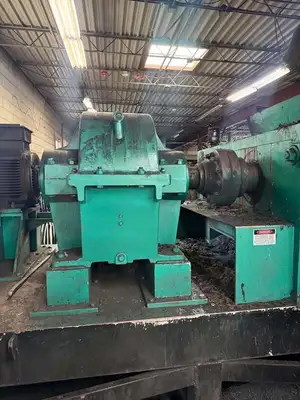

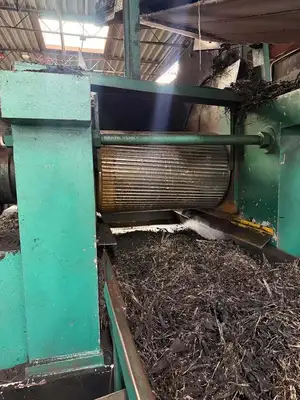

**XKP-560 Rubber Grinder**

- Roll diameter: 22.0" (560 mm)
- Roll length: 31.5" (800 mm)
- Front roll surface speed: 38.6 m/min
- Roll speed ratio: 1:2.5
- Maximum roller spacing: 0.31" (8 mm)
- Motor power: 110 kW (approximately 148 HP)

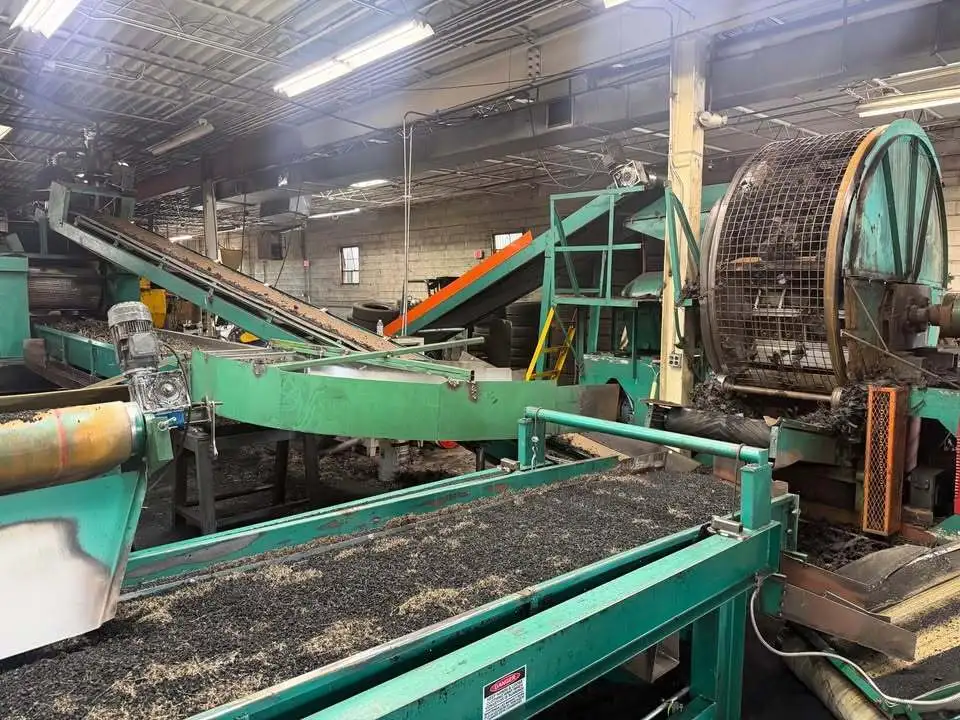

**Included Equipment**

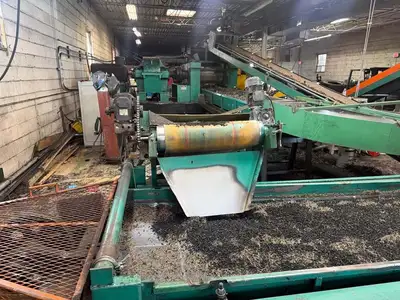

- (2) Magnetic conveyors
- (2) Vibrating screens
- (1) 5' conveyor
- (1) 20' conveyor
- (1) 25' conveyor with adjustable height

Specifications are based on the supplied model charts. Actual throughput and finished material size depend on feedstock, settings, and line configuration.
