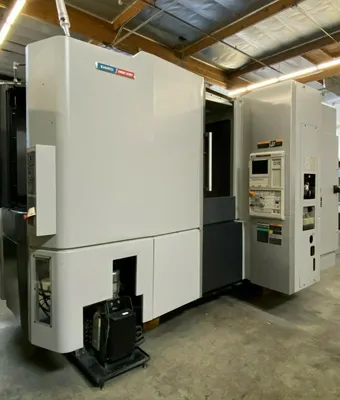

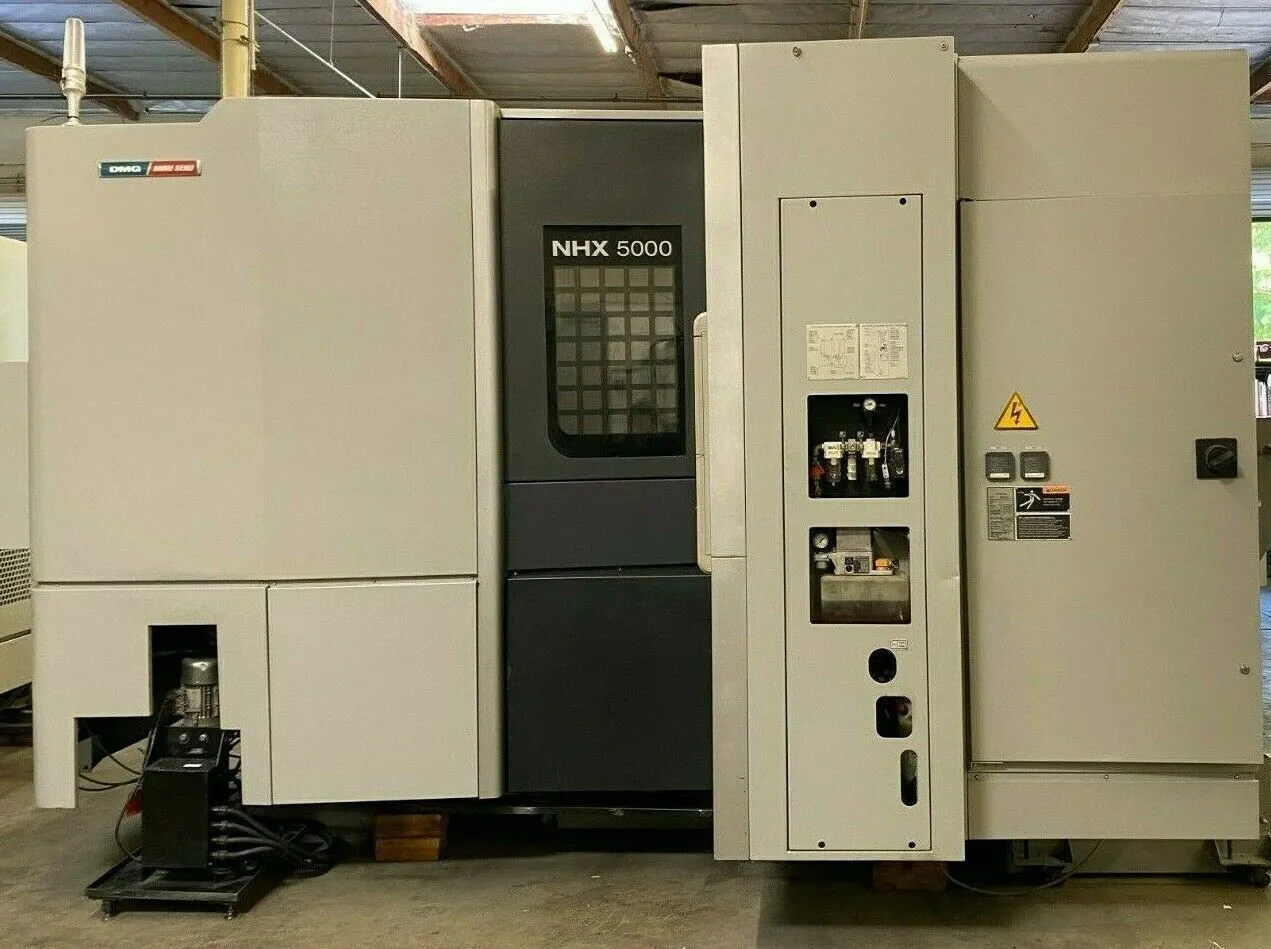

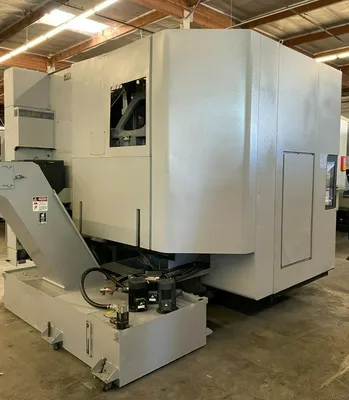

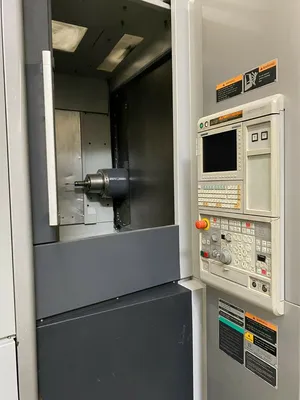

USED 2013 DMG MORI NHX-5000

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

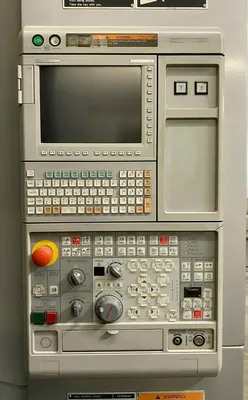

M730BM CNC Control with MAPPS
USB Ports
50 MB Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
48 Work Coordinate / offset System
200 Tool Coordinate / Offset
Fast Rapid Traverse Rate

Travels:
X Axis: 28.7″
Y Axis: 28.7″
Z Axis: 34.5″
B Axis: 0.001° ( Full 4th )

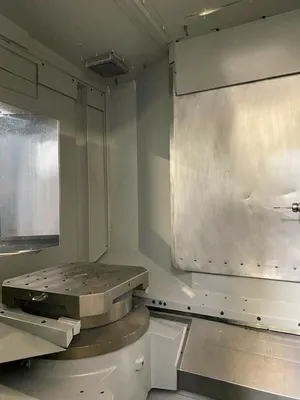

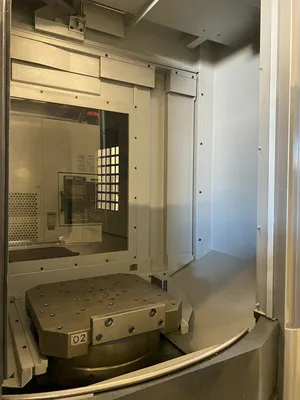

Table:
Length: 19.7″
Width: 19.7″
Max Weight on Table: 882 lbs
Max Workpiece Height: 35.4″
Index Time: 8 seconds

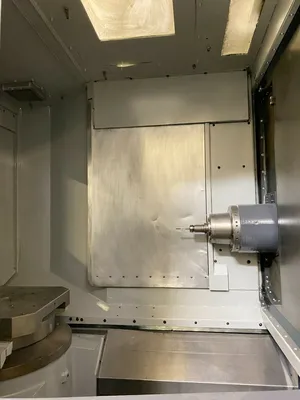

Spindle:
Taper Size: 40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs

Feed Rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute

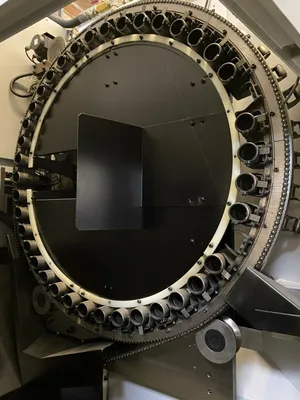

Tool Changer:
Capacity: 40 Tools
Max Tool Size: 6.6″
Max Tool Length: 17.7″
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second

General:
Air Required: 90 psi, 4 scfm

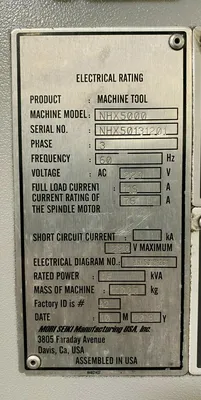

Power: 45kva / 205-220v / 3-Phase
Overall Dimensions: 165″ X 105″ x 100″ High
Weight: 22,000 lbs. approx.
