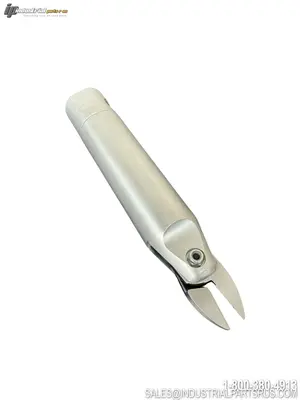

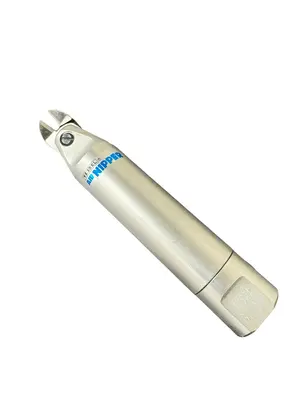

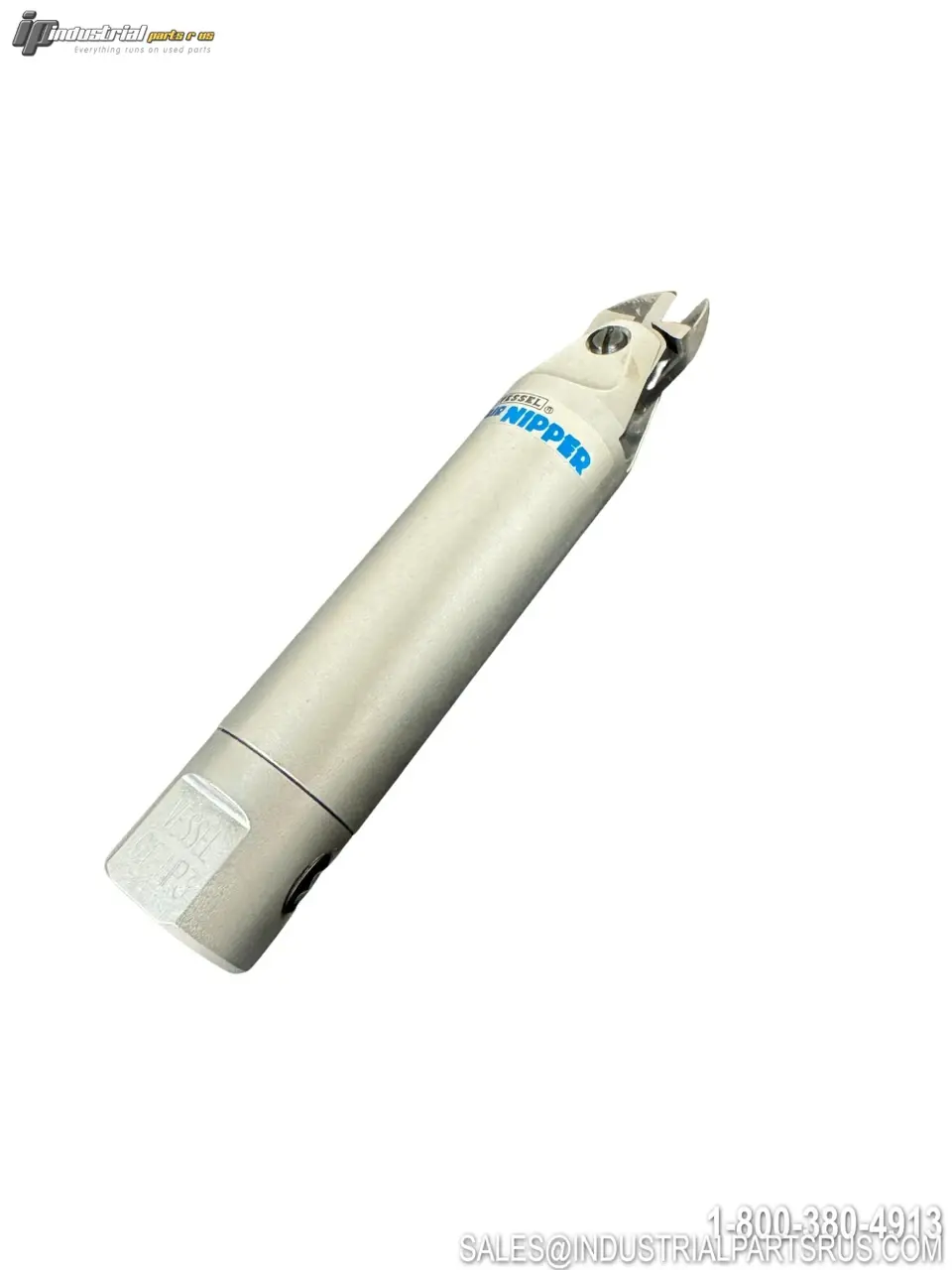

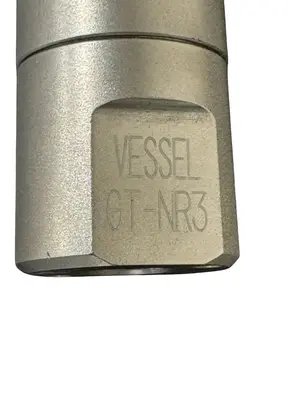

USED VESSEL GT-NR3

The Vessel GT-NR3 is a compact round type pneumatic air nipper body (without lever), Size 3, designed for stationary mounting in automated cutting and crimping applications. Its ø23mm aluminum cylindrical body is single-acting with a return spring, making it ideal for end-of-arm tooling (EOAT) on robotic arms, chuck plates, and cutting fixture stations. The unit accepts N3-series blades (sold separately) and features two air inlet ports with a 180°-rotatable end-cap for flexible installation in any orientation.
Specification
Value
Brand
Vessel
Model / Part Number
GT-NR3
EDP Number
360015
Product Series
GT-NR Series
Description
Round Air Nipper Body (without Lever), Size 3
Overall Length (OAL)
110 mm
Body Diameter
ø23 mm
Weight
70 g
Air Consumption
45 cm³/stroke
Operating Air Pressure
0.4 – 0.5 MPa (58 – 73 PSI)
Applied Force
294 N (66 lb)
Air Inlet Port (Hose Coupling)
Rc 1/8
Number of Air Inlet Ports
2
End-Cap Rotation
180°
Actuation Type
Single-acting with return spring
Body Material
Aluminum
Blade Material (compatible)
Special alloy steel (blades sold separately)
Cut Capacity – Soft Plastic (ø)
2.0 mm
Cut Capacity – Hard Plastic (ø)
— (not rated)
Cut Capacity – Copper Wire (ø)
1.0 mm
Cut Capacity – Steel (ø, non-heat treated)
0.5 mm
Cut Capacity – Piano Wire (ø, HV320 or below)
0.2 mm
Compatible Blade Series
N3-type (e.g., N3BJ, N3AE, N3AJ, N3AP)
Mounting
Mounting holes on bottom of housing; optional clamps/brackets available
Typical Applications
EOAT robotic arm, chuck plate, cutting fixture stations, gate cutting, wire cutting, crimping
We warranty all items for 30 days from date of purchase.
