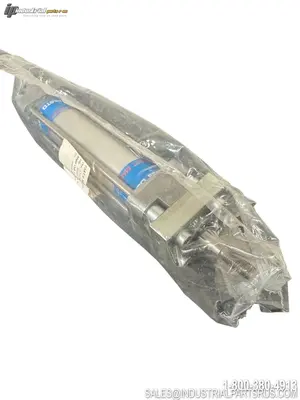

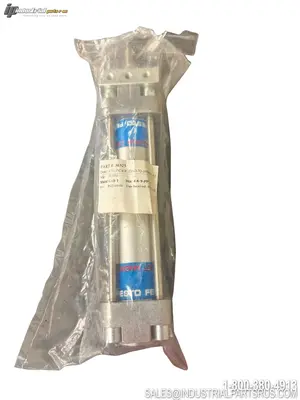

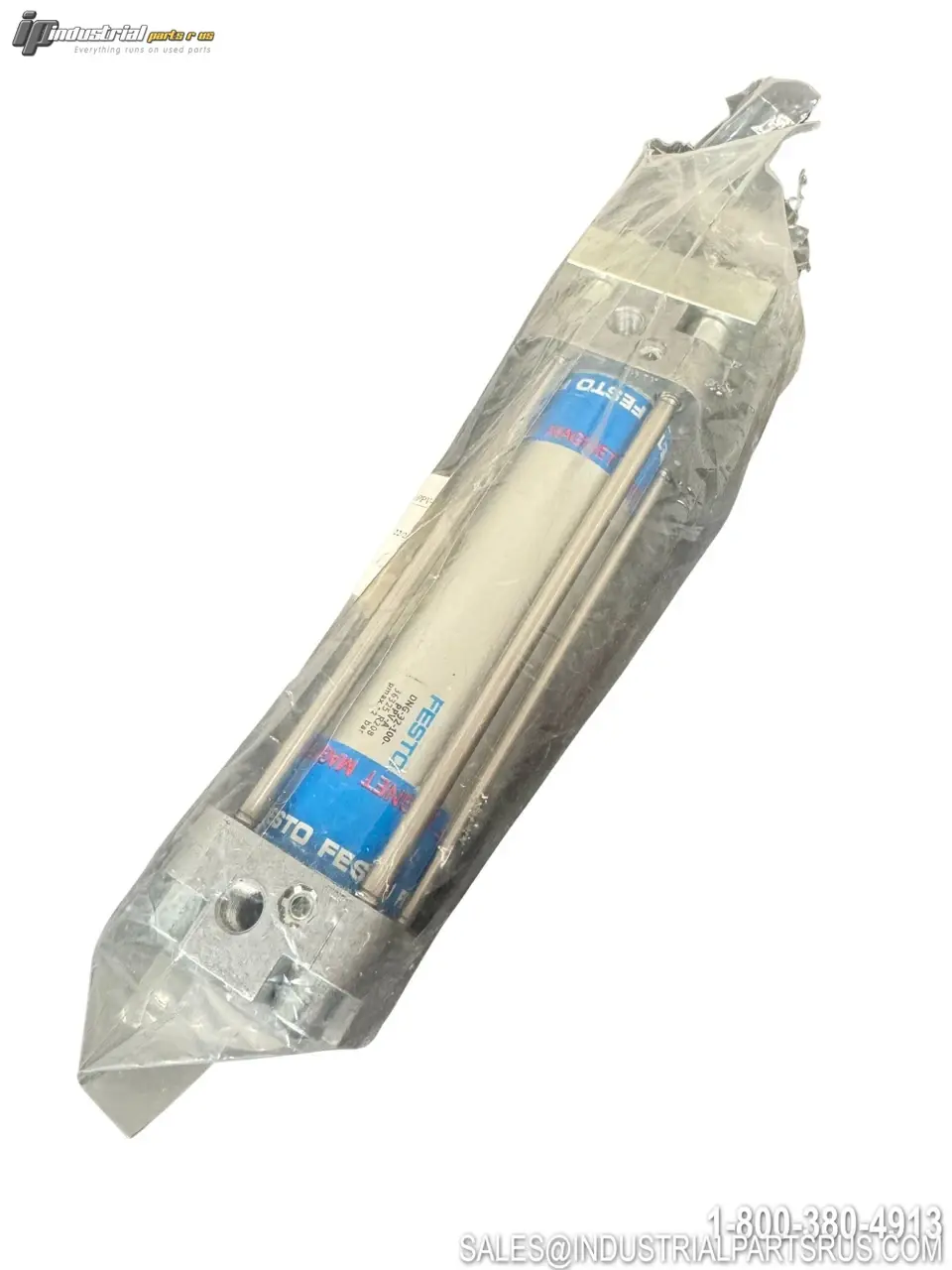

NEW FESTO DNG-32-100-PPV-A

The Festo DNG-32-100-PPV-A (part number 36325) is a double-acting tie-rod standard cylinder conforming to ISO 15552 (formerly ISO 6431 and VDMA 24562). It features a 32mm bore, 100mm stroke, adjustable pneumatic cushioning at both ends (PPV), and a built-in magnetic piston for position sensing via proximity switch. This cylinder is designed for flexible industrial automation applications and accepts a comprehensive range of Festo mounting accessories.
Specification
Value
Brand
Festo
Model / Part Number
DNG-32-100-PPV-A
Festo Part No.
36325
Product Series
DNG (Tie-Rod Standard Cylinder)
Cylinder Type
Double-Acting, Tie-Rod Design
Bore Diameter
32 mm (1.26 in)
Stroke Length
100 mm (3.94 in)
Cushioning
PPV – Pneumatic, adjustable at both ends
Position Sensing
Via proximity switch (magnetic piston)
Operating Pressure
0.6 – 12 bar (8.7 – 174 psi)
Operating Medium
Compressed air per ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M10x1.25 (male)
Pneumatic Port Size
G1/8
Mounting Position
Any
Ambient Temperature
-20°C to +80°C (-4°F to +176°F)
Conforms to Standard
ISO 15552 (formerly ISO 6431, VDMA 24562)
Theoretical Force at 6 bar – Advance
483 N
Theoretical Force at 6 bar – Return
415 N
Cushioning Length (PPV)
20 mm
Cylinder Barrel Material
Wrought aluminium alloy
End Cap / Bearing Cap Material
Aluminium (die-cast)
Piston Rod Material
High-alloy steel
Seal Material
Polyurethane / Nitrile rubber
Lubrication
Lubricated operation possible (once lubricated, always required)
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
