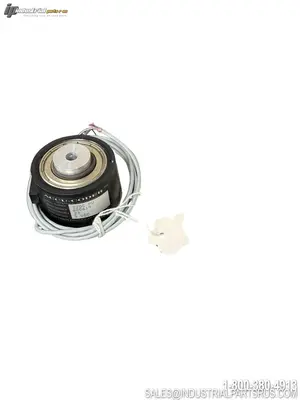

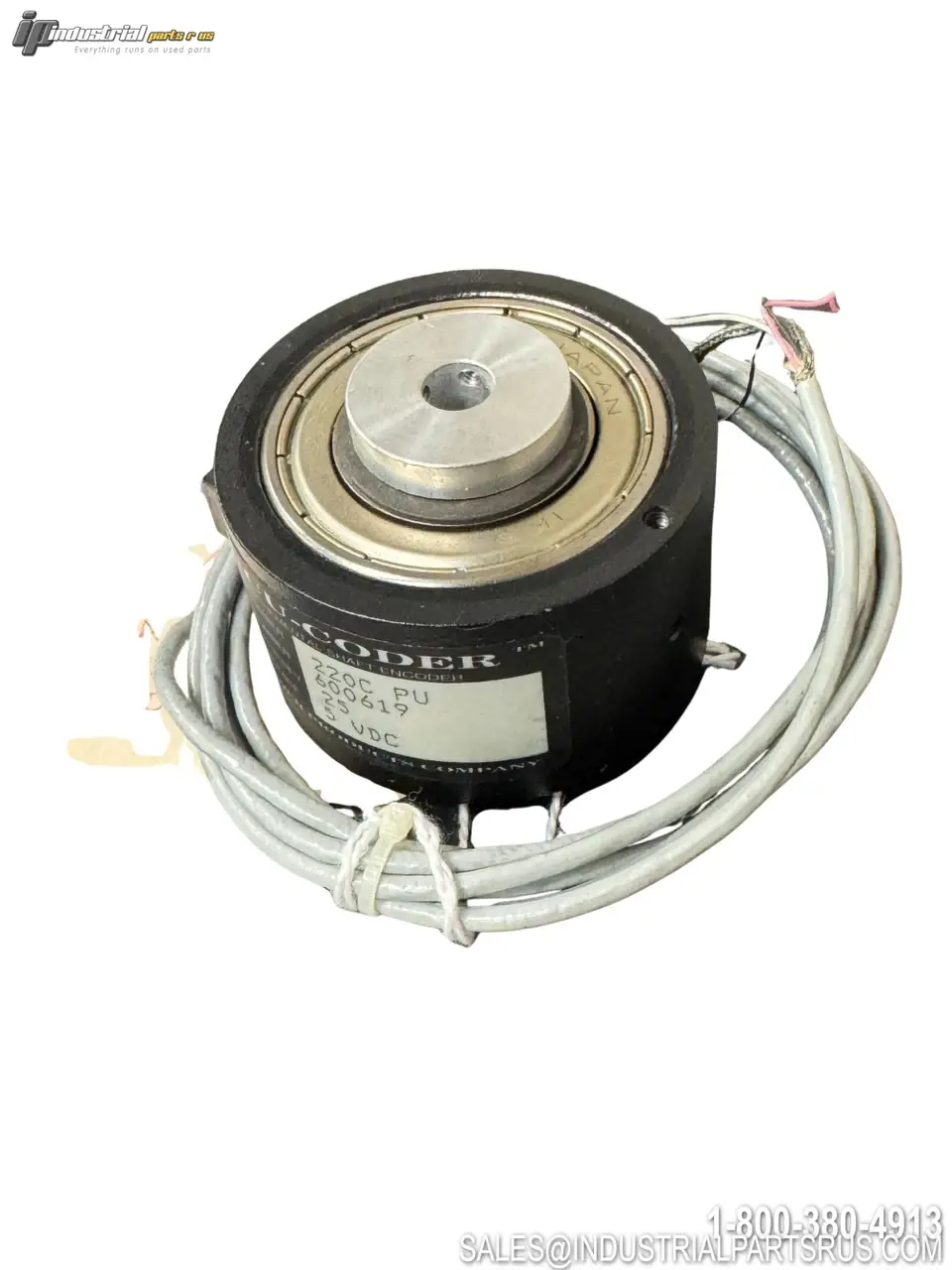

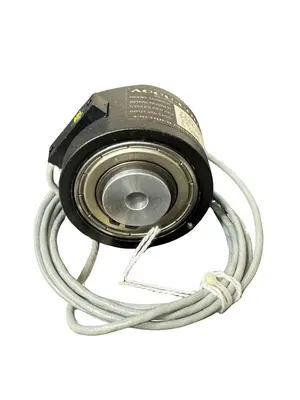

USED ACCU-CODER 220C PU

The ACCU-Coder Model 220C PU is an incremental shaft encoder manufactured by Encoder Products Company (EPC) under the Accu-Coder® brand. It operates on a 15VDC supply and provides 60 cycles per revolution (CPR) of incremental position feedback via a pull-up resistor (PU) output type. This optical rotary encoder features a shielded cable termination and NPN open-collector output with internal pull-up resistor. This model has been discontinued by the manufacturer and is sought as a replacement or spare part for legacy industrial motion control, positioning, and speed-sensing applications.
Specification
Value
Brand
ACCU-Coder
Model / Part Number
220C PU
Manufacturer
Encoder Products Company (EPC)
Encoder Type
Incremental Shaft Encoder
Input Voltage
15VDC
Resolution (CPR)
60 CPR (Cycles Per Revolution)
Output Type
PU – Pull-Up Resistor (internal pull-up to supply voltage)
Pull-Up Resistor Value
Typically 1,500–2,200 Ω internal
Max Output Current (Sink)
20 mA per channel
Output Signal
Square Wave (Incremental Quadrature A & B)
Rise Time
1 µsec
Housing Diameter
2.25" (57.2 mm)
Housing Material
Aluminum
Bearing Type
Sealed Ball Bearings
Mounting Type
Shaft Mount
Manufacturer Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
