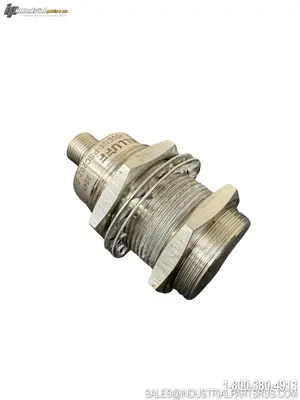

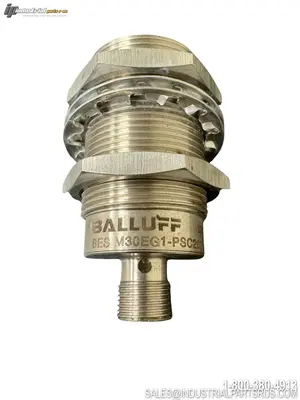

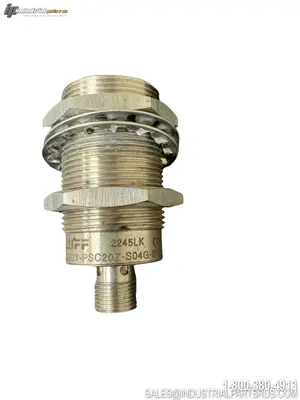

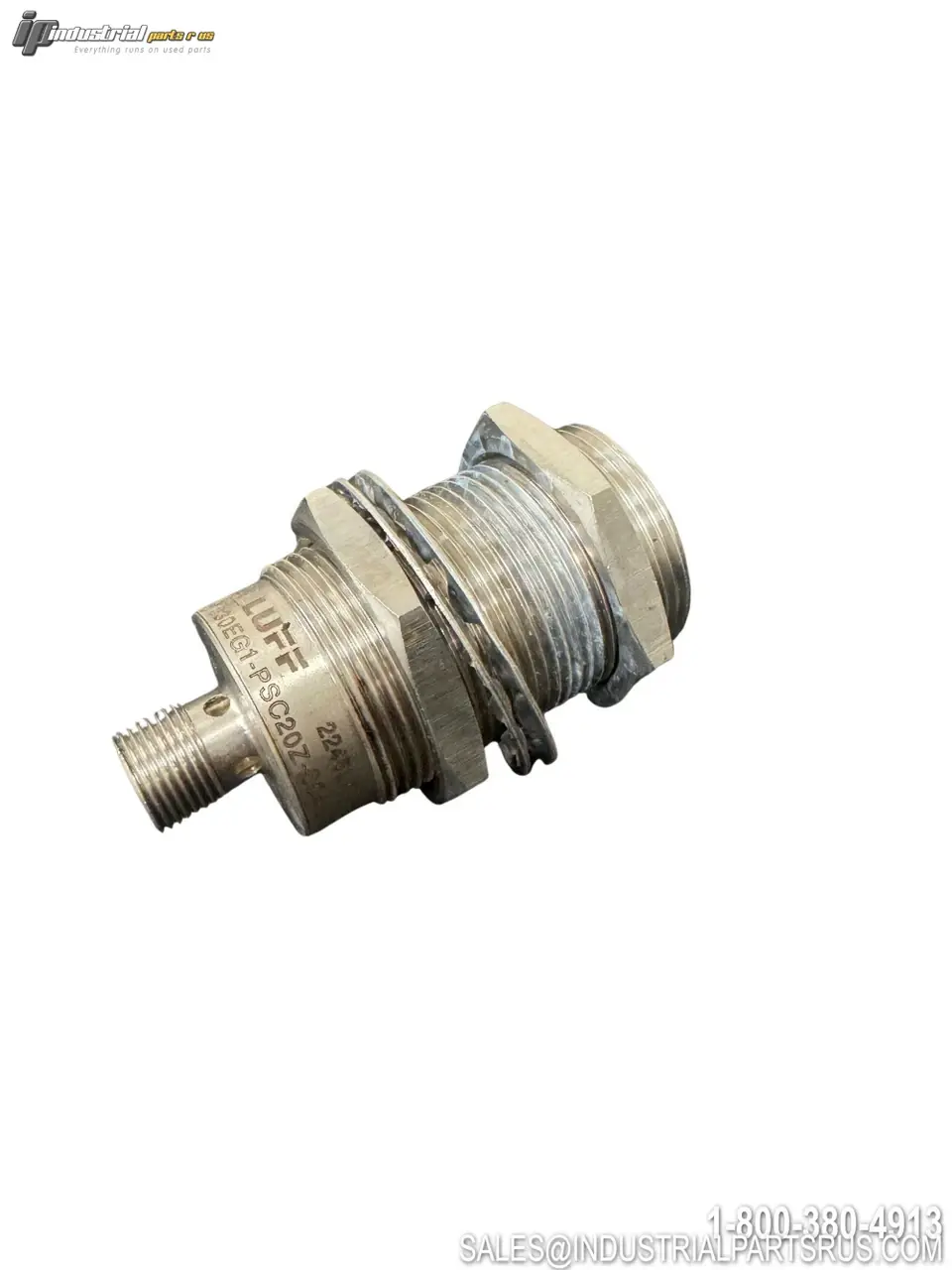

USED BALLUFF BES M30EG1-PSC20Z-S04G-S11

The Balluff BES M30EG1-PSC20Z-S04G-S11 (order code BES02YF) is a cylindrical, flush-mount, pressure-rated inductive proximity sensor designed for demanding industrial environments including hydraulic and high-pressure applications. Housed in a stainless steel M30x1.5 threaded body, it features a 20 mm rated sensing range with a PNP normally open (NO) switching output. The sensor connects via a standard M12x1 4-pin male connector and is rated for operating pressures up to 40 bar, making it suitable for position monitoring on hydraulic cylinders and valve assemblies.
Specification
Value
Brand
Balluff
Model / Part Number
BES M30EG1-PSC20Z-S04G-S11
Order Code
BES02YF
Product Family
BES Series – Pressure-Rated Inductive Sensors
Sensor Type
Inductive Proximity Sensor
Housing Style / Thread
M30x1.5 Cylindrical
Dimensions
Ø 30 x 63.5 mm
Installation Type
Flush Mount
Sensing Range (Sn)
20 mm
Switching Output
PNP, Normally Open (NO)
Output Wiring
3-Wire DC
Operating Voltage (Ub)
10...30 VDC
Rated Operating Current (Ie)
200 mA
Switching Frequency
100 Hz
Connection Type
Connector, M12x1 Male, 4-Pin
Housing Material
Stainless Steel
Sensing Surface Material
1.4305 Stainless Steel
Max. Pressure Rating
40 bar
IP Rating
IP67
Ambient Temperature
-25...70 °C
Approvals / Conformity
CE, cULus, WEEE
We warranty all items for 30 days from date of purchase.
