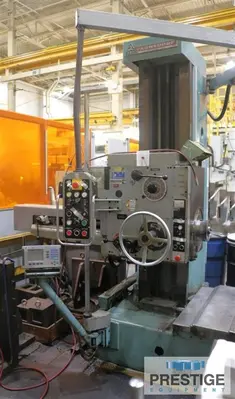

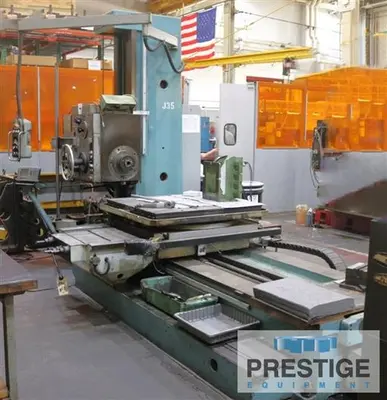

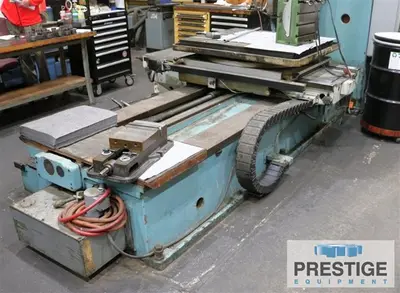

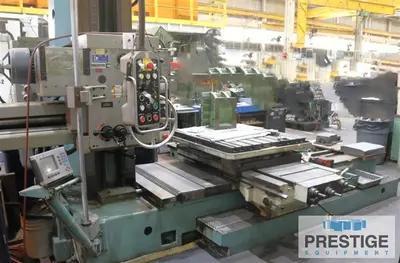

USED 1986 TOS W9A

SPECIFICATIONS:
Spindle Diameter: 3.5"
Spindle Taper: #40
X-Axis, Table Travel: 49"
Y-Axis, Headstock Vertical Travel...... 44": 44"
W-Axis, Saddle Travel: 55"
Z-Axis, Spindle Travel: 30"
Spindle Speed: 28-1400 RPM
Built-In Power Feeding Rotary Table: 39" x 44"
Rotary Table, Optical Positioning: 4 x 90 Degree
Rapid Feed Rotary Table: 2.6 RPM
Rapid Traverse, All Axes: 94 IPM
Range of Boring Feeds: .0006 to .03 IPR
Number of Boring Feeds: 18
Range of Milling Feeds: .5-24 IPM
Number of Milling Feeds: 18
Threads Per Inch, 24 Step: 2-120 TPI
Spindle Motor: 10 HP
Weight of Workpiece: 6,600 LBS
Approx. Machine Footprint: 210" x 100"
Approx. Machine Height: 114"
Approx. Machine Weight: 24,300 Lbs

Equipped With:
Operator Pendant Control
Acu-Rite Digital Readouts
Power Draw Bar
39" x 44" Built-In Power Rotary Table

NOTE:
Machine on the Way to Our Philadelphia Warehouse.

Features:
Operator Pendant Control
Acu-Rite Digital Readout
Power Draw Bar
39" x 44" Built-In Rotary Table
