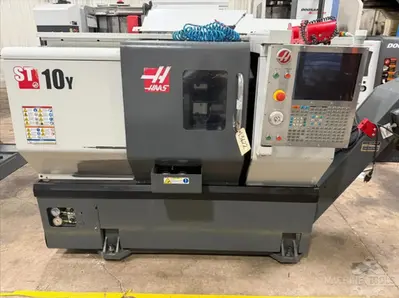

USED 2016 HAAS ST-10Y

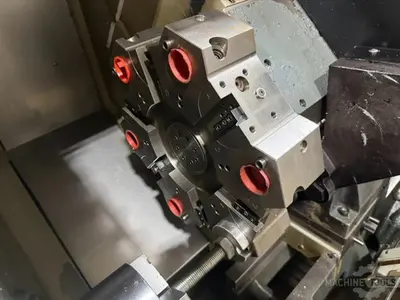

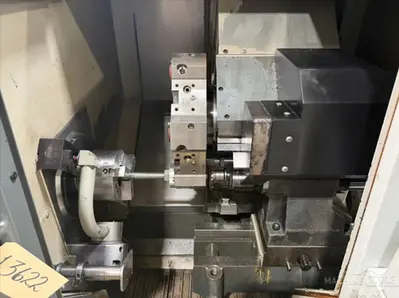

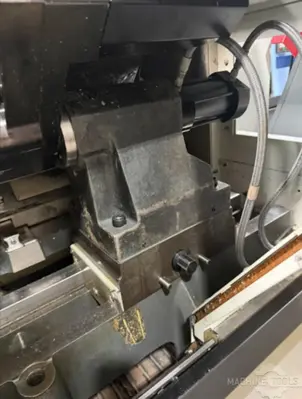

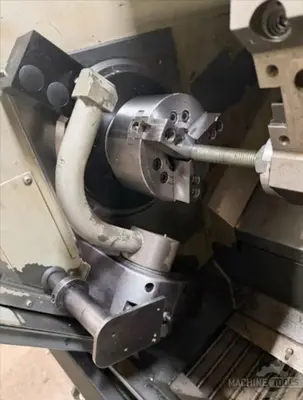

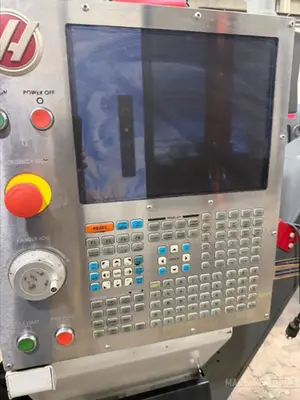

12” X 14” CNC Turning Center with Haas CNC Control, C - Axis, Y - Axis, 24 Position VDI Turret with Live Tooling, 6,000 RPM Live Tooling on Turret, Collet Chuck, Remote Jog Handle, Rigid Tapping, Spindle Orientation, Automatic Tool Presetter, Belt Type Chip Conveyor, Tailstock with Hydraulic Quill, Parts Catcher, Ethernet Connection and 750 Megabit Expanded Memory.GENERAL SPECIFICATIONS Swing Over Front Apron:                        25.5”Swing Over Cross Slide:                        16.25”Swing Over Tailstock:                        23.5”Chuck Size:                                6.5”Max. Cutting Diameter:                        12”Max. Cutting Length:                        14”Bar Capacity:                                1.75”X - Axis Travel:                            7.88”Y - Axis Travel:                            ±2”Z - Axis Travel:                            14”Rapids on X:                                472 in / MinRapids on Y:                                472 in / MinRapids on Z:                                12000 in / MinMax. Thrust X:                            2,400 LbsMax. Thrust Y:                            2,300  LbsMax. Thrust Z:                            3,700 LbsSpindle Max. Rating:                        15 HPMax. Spindle Speed:                            6,000 RPMMax. Torque:                                75 ft-lb @ 1,300 RPMSpindle Nose:                            A2-5Spindle Bore:                                2.31”Draw Tube Bore:                            1.81”Main Spindle C - Axis Max. Rating:                5 HPBrake Clamp Force:                            1,000 LbsBrake Diameter:                            14.4”# of Tool Stations:                            24Boring Bar Rear Clearance (From Back of Turret):        0.75”Air Required:                                4SCFM, 100 PSICoolant Capacity:                            15 Gal.INCLUDES: Haas CNC Control, C - Axis, Y - Axis, 24 Position VDI Turret with Live Tooling, 6,000 RPM Live Tooling on Turret, Collet Chuck, Remote Jog Handle, Rigid Tapping, Spindle Orientation, Automatic Tool Presetter, Belt Type Chip Conveyor, Tailstock with Hydraulic Quill, Parts Catcher, Ethernet Connection and 750 Megabit Expanded Memory.
