USED 2006 TOYODA FA-800 4-AXIS

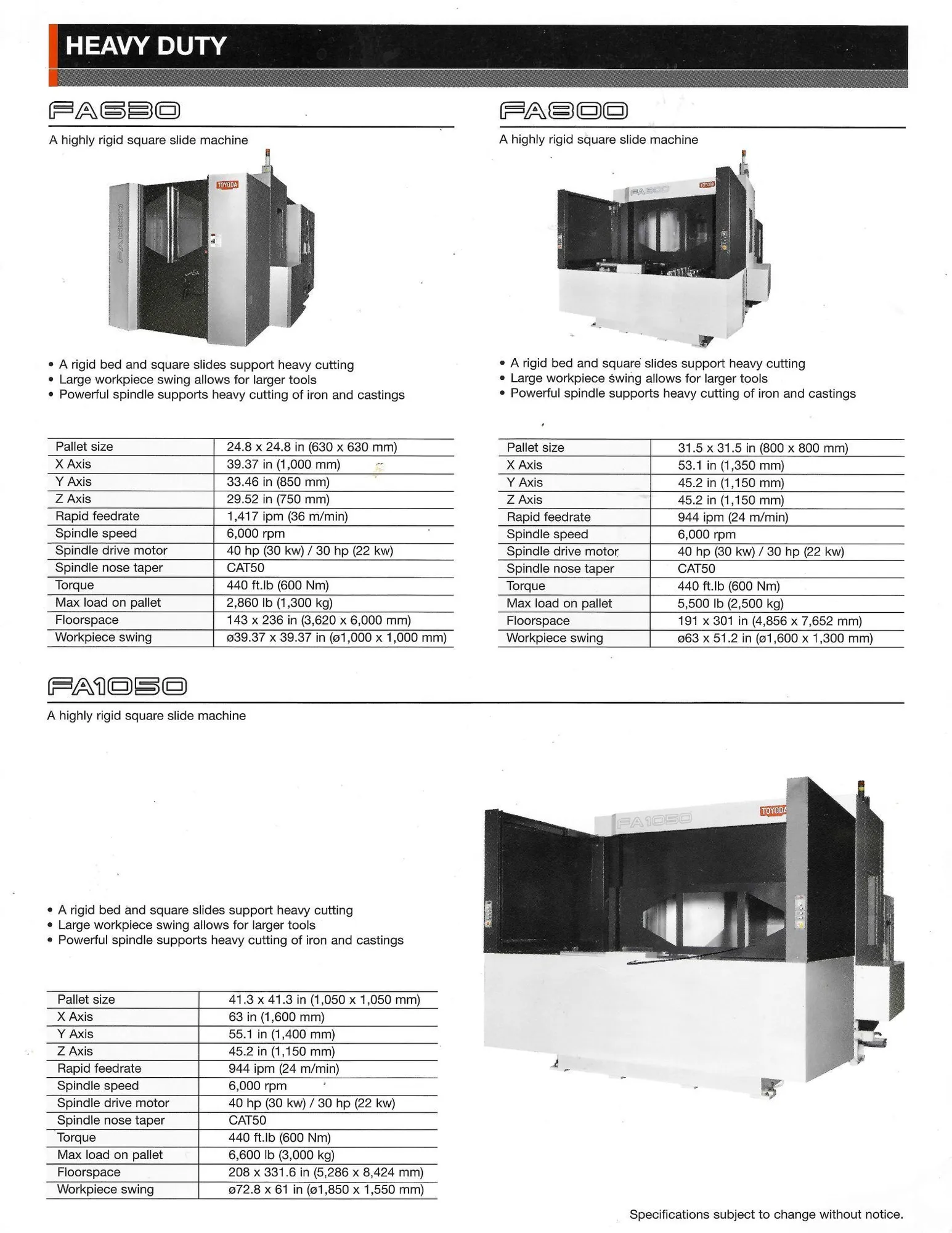

2006 Toyoda FA-800 CNC Horizontal Machining Center
with Fanuc 18i-MB Control and all Options.

* Special Pricing as Need Floorspace New Project!

Main Specifications:
(2) 31.5" Pallets
Fanuc 18i-MB Control
High Pressure Coolant through the spindle
Coolant Tank system
Lift Up Heavy-Duty Chip conveyor
Pallet Size: 31.5” X 31.5”
Max. Pallet Weight: 5511 Lbs.
Axis Travels X/Y/Z: 53.1” x 45.2” x 45.2”
Rapid Feedrate (X/Y/Z): 944 I.P.M.
Pallet rotation in loading station: 1°
Spindle Motor (HP): 40 H.P.
Spindle RPM: 35-6000
Spindle Taper: Cat 50
Number of Tools in ATC: 60
Max Part Size Swing Diameter: 51.18”

* Full Photo Set & Operational Videos in Process
* Please Email More Photos on Interest * New Listing!
