USED 2019 KSI TCM 32S
Overview

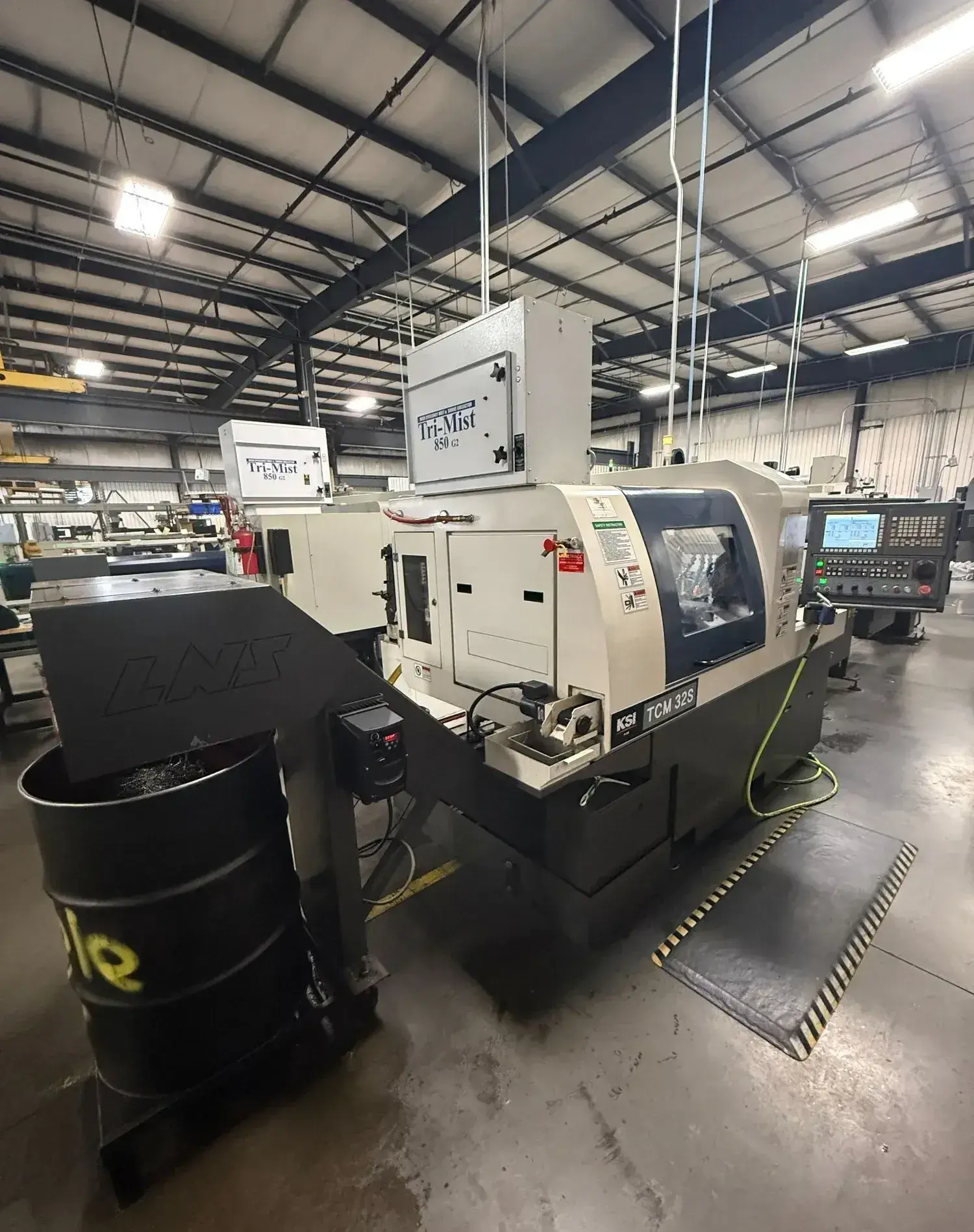

This 2019 KSI TCM 32S Swiss type CNC lathe runs 7 axes with a sub spindle, 26 tool stations including 9 live tools, and an LNS Vito B-Loader 12' bar feeder. It handles up to a 1.26" diameter with a 10 HP, 8,000 RPM main spindle, and has approximately 1,700 cutting hours
Specs
Number of Axes: 7
Max Turning Diameter: 1.26"
Main Spindle Bore: 1.69"
Main Spindle Power: 10 HP
Main Spindle Speed: 8,000 RPM
Sub Spindle Bore: 1.26"
Sub Spindle Power: 3 HP
Sub Spindle Speed: 8,000 RPM
C-Axis Positioning (Main and Sub): 0.001 Degrees
Cross and Back End Live Tool Speed: 5,000 RPM
Cross Drill/Mill Motor: 1.5 HP
Back End Motor: 1.5 HP
Z1-Axis Stroke: 11.81"
Z2-Axis Stroke: 11.81"
X1-Axis Stroke: 2.76"
X2-Axis Stroke: 15.87"
Y1-Axis Stroke: 15.65"
Tool Stations: 26 Total (17 Fixed, 9 Live)
Main Spindle Drill/Tap: 0.98" / M8
Cross Spindle Drill/Tap: 0.39" / M6
Back Working Drill/Tap: 0.39" / M8
Stick Tool Shank Size: 0.63"
Headstock Collet: TF44
Guide Bushing: TD32S
Sub Spindle Collet: TF37
Coolant Tank Capacity: 52.8 gal
Approximately 1,700 Cutting Hours
Approximately 6,700 Run Hours
Approximate Weight: 7,716 lbs
Approximate Dimensions: 119" x 64" x 69"
Equipped With
Fanuc Control
LNS Vito B-Loader 12' Bar Feeder
MP Systems High Pressure Coolant
Trace Fire Suppression System
Mist Collector
Chip Conveyor
Parts Conveyor
Driven Rotary Guide Bushing
Sub Spindle Work Ejector
LM Guide Ways
Tool Life Management System
Collision Prevention System
Software Tool Breakage Detection
Automatic Way Lube
