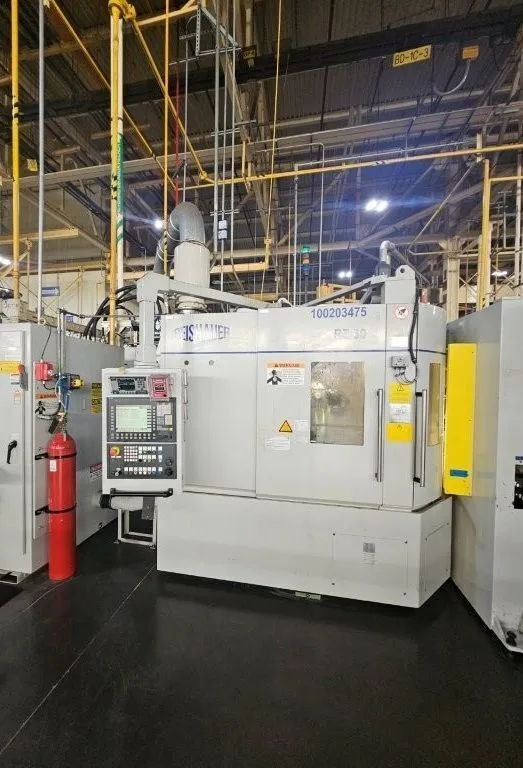

USED 2015 REISHAUER RZ60
Overview
The Reishauer RZ 60 is a high-speed, high-precision continuous generating gear grinding machine. It is explicitly designed for the mass production of small gears and planetary pinions. The machine features a two-workspindle design to eliminate non-productive loading times and maximize throughput. Accuracy, Volume; profitability!
Specs
Specifications:
Gear Outside Diameter: 0 – 94 mm
Module: 1 – 4 mm
Swivel Angle (grinding head): +/– 48°
Maximum Grinding Stroke: 180 mm
Maximum Shaft Length: 490 mm
Maximum Work Spindle Speed: 3000 min-1
Maximum Workpiece Weight (incl. fixture): 30 kg
Maximum Grinding Speed: 100 m/s
Maximum Grinding Wheel Outside Diameter: 275 mm
Maximum Face Width of Grinding Wheel: 125 / 160 mm
Diameter of Dressing Tool: 123 / 140 mm
Equipped With
Auto Loader

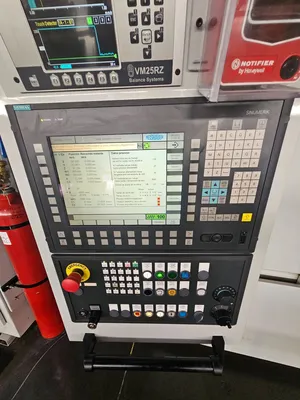

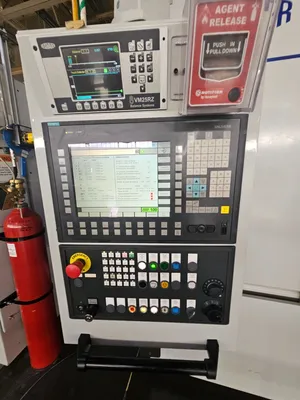

Siemens 840D CNC Control

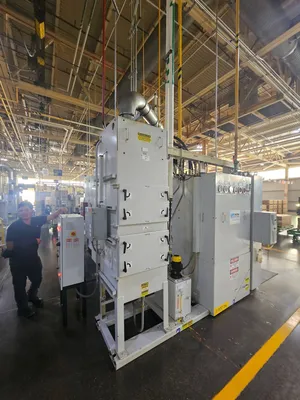

Mist Collector
Exchangeable Tooling

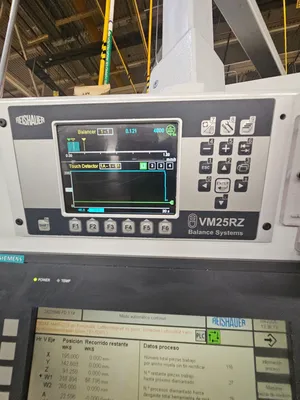

Automatic Balancing
Adaptive Control
Two-WorkSpindle Design
Two Meshing Sensors
Extra Wide Grinding Wheels
Rotary Dresser
CNC Tailstocks (W1 & W2 Axis)
Fire Suppression
Filtra Skid Boost Filter
