USED 2007 HAAS VF-3B

Wisconsin, United States
105Listings|66Followers
Overview
Vertical Machining Centers

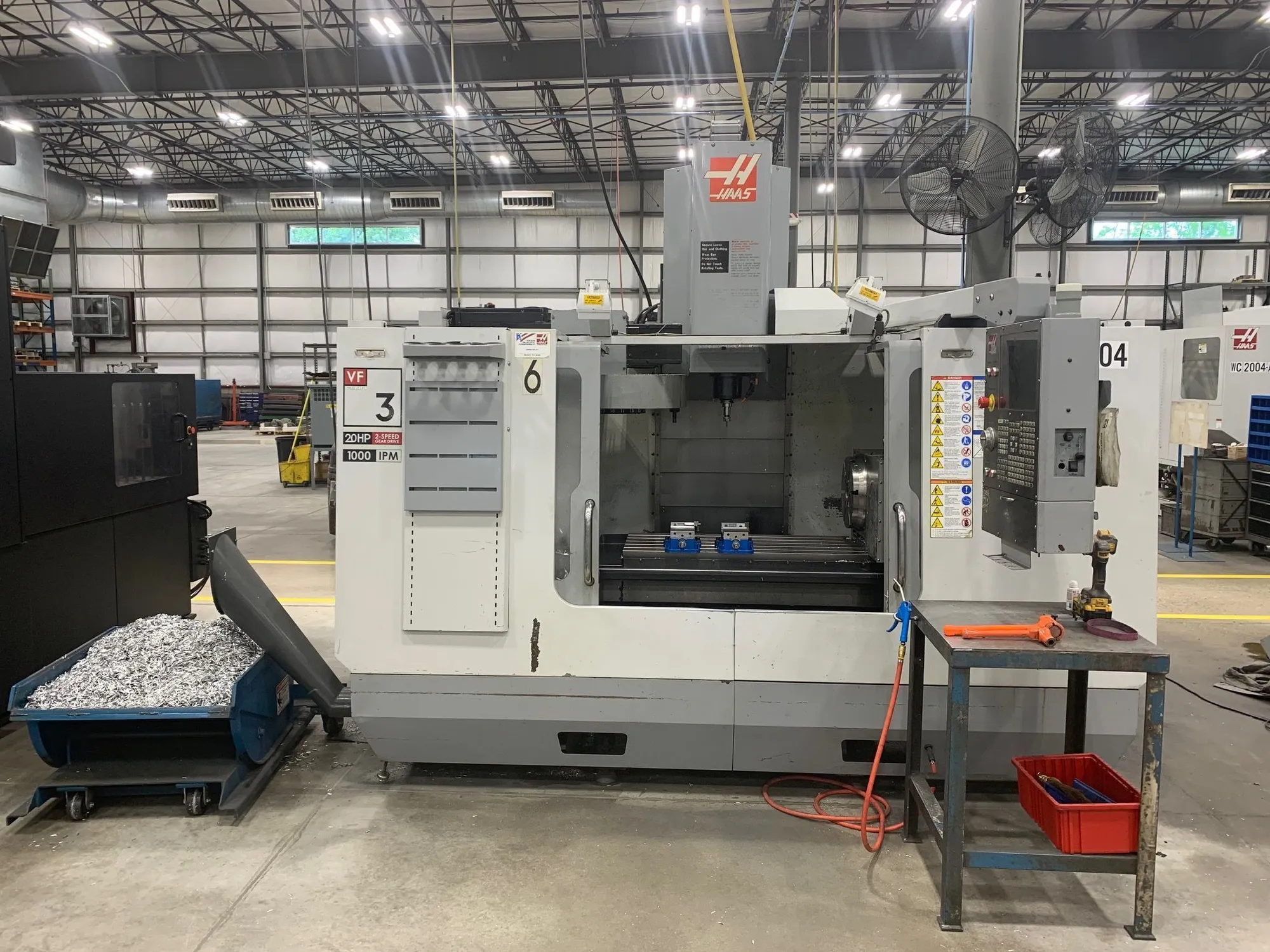

2007 HAAS VF-3B CNC vertical machining center with HRT-210 4th axis. Features 40" X, 20" Y, 25" Z travel, 20 hp, 7,500 RPM, 24-tool ATC, CAT 40 taper and 18" x 48" table. Kurt vises and tooling not included.

Specs
X
40"
1,016 mm
Y
20"
508 mm
Z
25"
635 mm
Power
20 hp
14.9 kW
RPM
7,500 RPM
7,500 RPM
# ATC
24
24
Taper
40
40
Table-W
18"
457.2 mm
Table-L
48"
1,219.2 mm
Equipped With

Standard 1MB of memory, has new Tool Changer Carousel, Arm, Proxy Switches, Sensors and the Front Y-Axis way cover, holds accuracy, backlash and repeatability within .0001”.
The HRT-210 4th Axis is included, but the Kurt vices and no other tooling is included.
