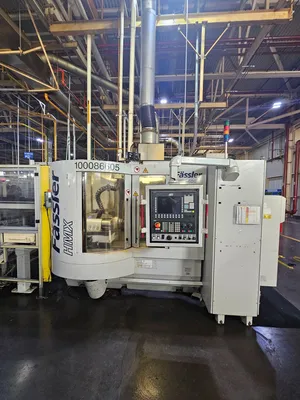

USED 2008 FASSLER HMX-400
Overview

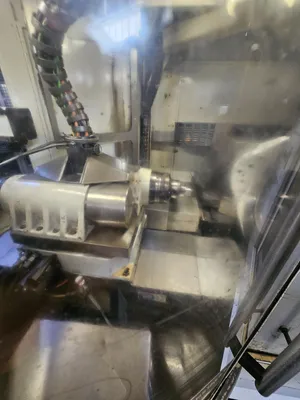

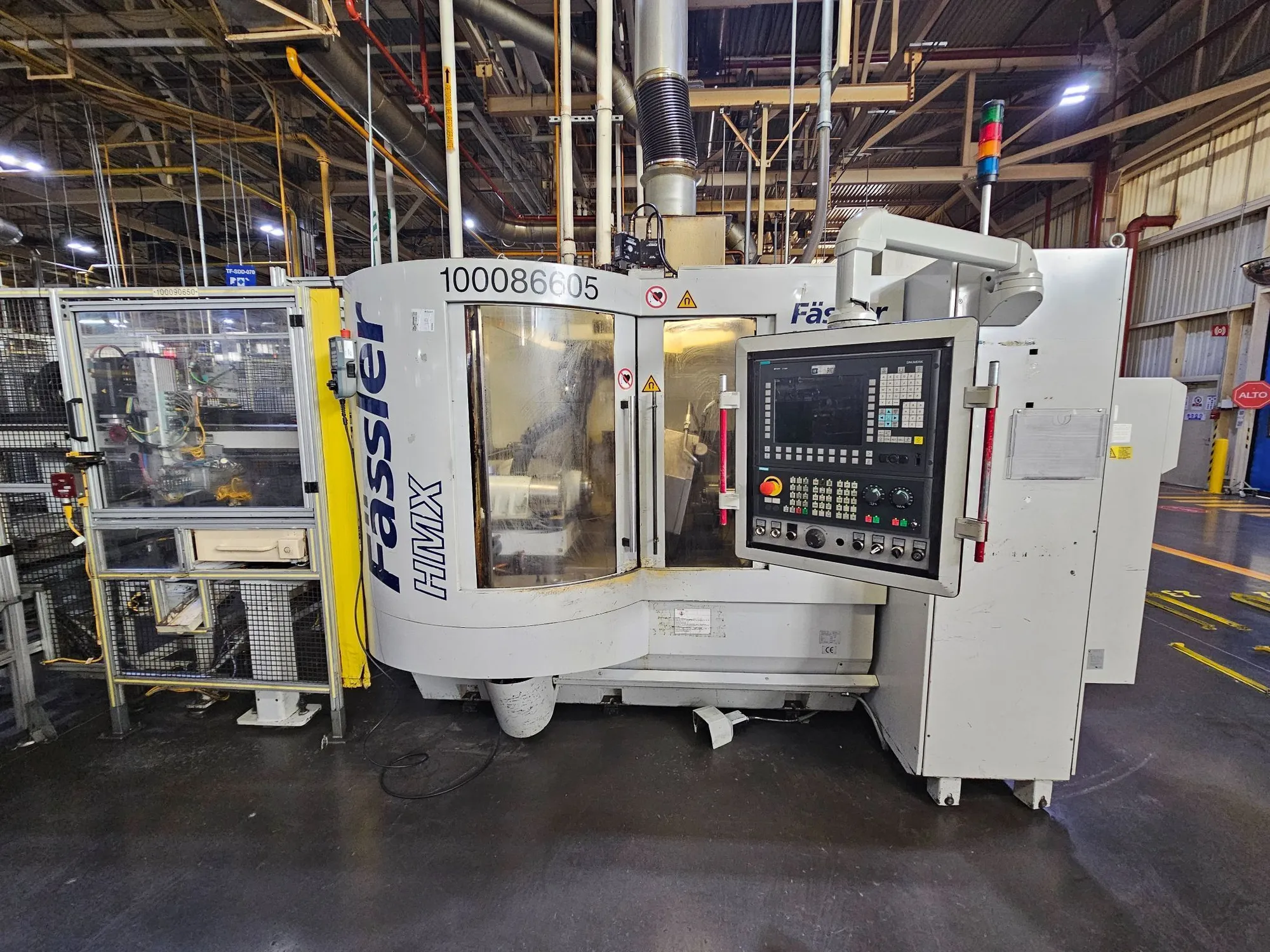

Fässler HMX 400 is an advanced CNC gear honing machine designed for the high-precision fine machining of hard and soft tooth flanks on external and internal gears.
Specs
Specifications:
Workpiece (c2-and c3-Axis) RPM, Stepless: 0-9000 1/min
Machinable Workpiece Diameter (External Honing): 20-320 mm
Machinable Workpiece Diameter (Internal Honing): 50-350 mm
Maximum Workpiece-Shaft Length: 400 mm
Maximum Speed, Honing Stone Drive: 1500 1/min
Maximum Honing Force (Max. Process Load): 1000 n

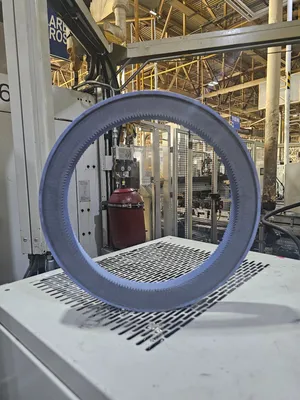

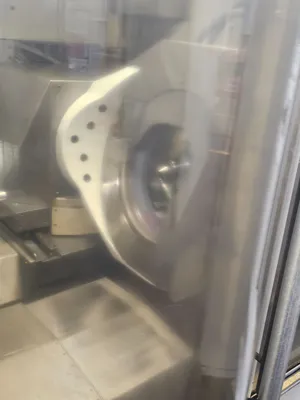

Honing-Stone Diameter: 400 mm
Swivel Drive (A-Axis) Speed: 0-112 Degree/S
Swivel Range A-Axis" +/- 45 Degrees
Swivel Drive (B1-Axis) Speed: 0-12 Degrees/s
Slewing Range B-Axis: +/- 10 Degrees
Cross Slide (X-Axis) Infeed Travel: -180/+5 mm
Cross Slide (X-Axis) Speed: 0-7500 mm/min
Longitudinal Slide (Z1-Axis) Travel: -400/+100 mm
Longitudinal Slide (Z1-Axis) Speed: 0-8000 mm/min
Longitudinal Slide (Z2-Axis) Travel: -627/-87 mm
Longitudinal Slide (Z2-Axis) Speed: 0-50000 mm/min
Equipped With

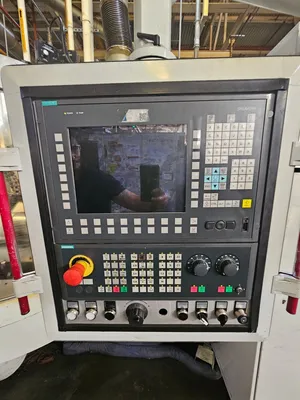

Siemens 840D Control
Gantry Loader
Load Table
Safety Gate

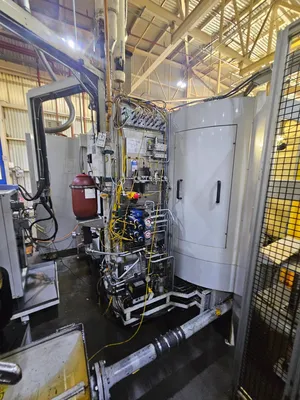

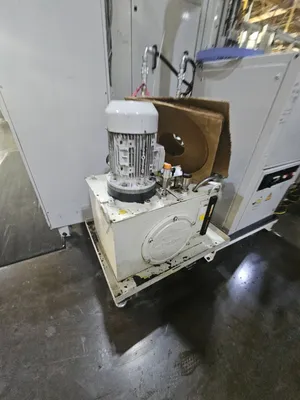

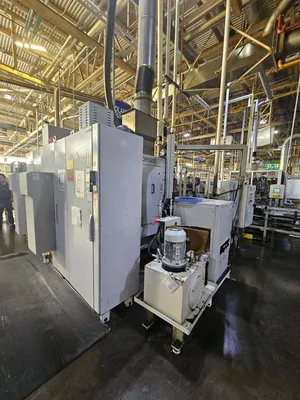

Hydraulic System
Chiller
Mist Collector

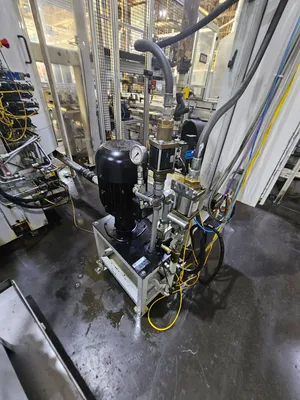

Filtra Coolant Tank & Pump
Stack Light
