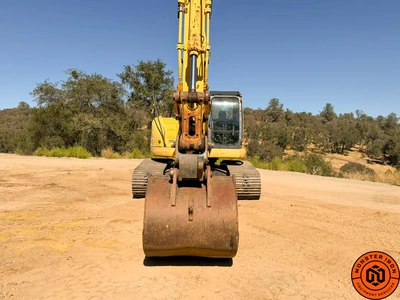

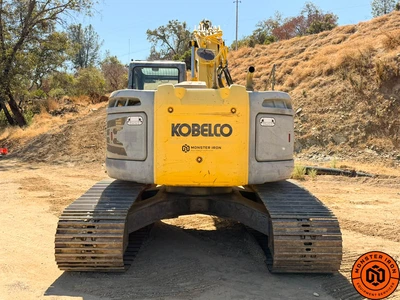

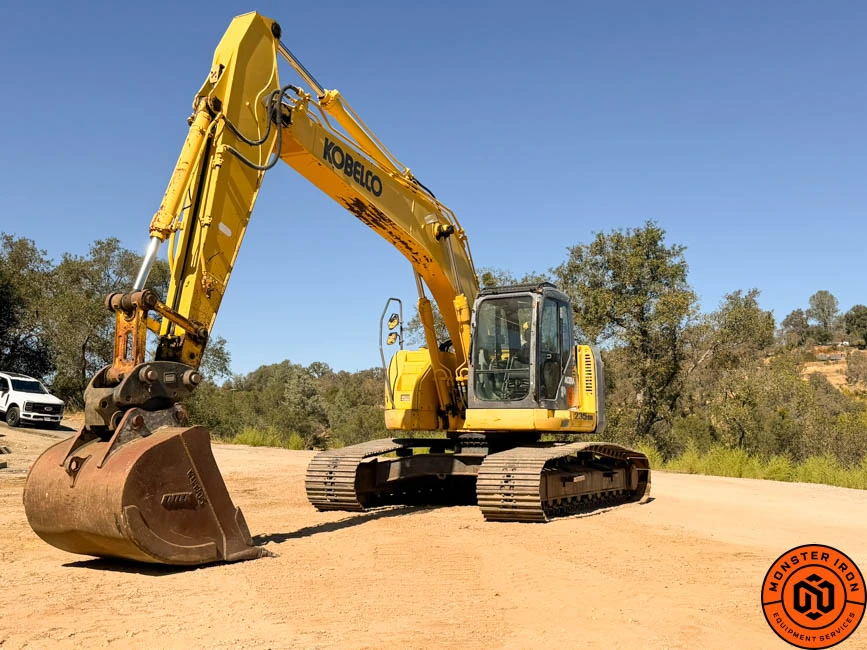

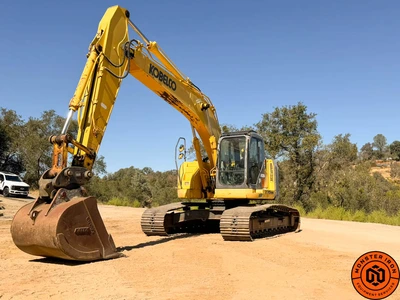

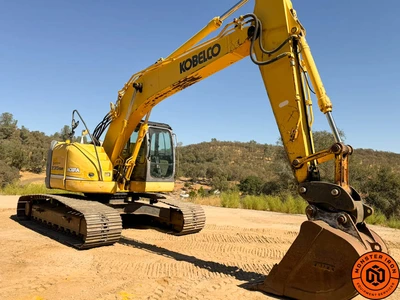

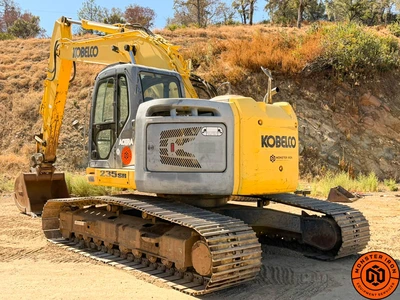

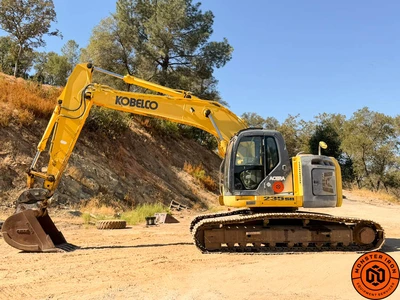

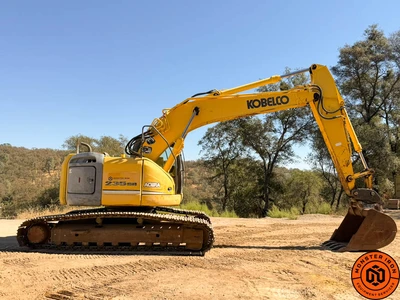

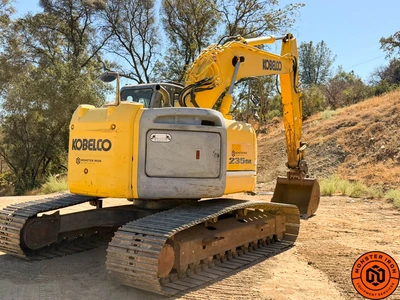

USED 2008 KOBELCO SK235SR

[Overview]
Machine: Kobelco SK235SR-2 / SK235SRLC-2 Hydraulic Excavator
Bucket Capacity: 0.67–1.22 yd³ ISO heaped
Engine Power: 158 hp @ 2,000 rpm
Operating Weight – SK235SR: 53,131 lb
Operating Weight – SK235SRLC: 54,454 lb
Emissions: US EPA Tier III / EU Stage IIIA / Japanese regulations
[Engine]
Model: HINO J05E
Type: Direct-injection, water-cooled, 4-cycle diesel engine with turbocharger and intercooler
Cylinders: 4
Bore x Stroke: 4.4 in × 5.1 in
Displacement: 312.6 in³
Rated Power Output: 158 hp @ 2,000 rpm
Rated Power Output: 153 hp @ 2,000 rpm
Maximum Torque: 437 lb-ft @ 1,600 rpm
Maximum Torque: 422 lb-ft @ 1,600 rpm
[Hydraulic System]

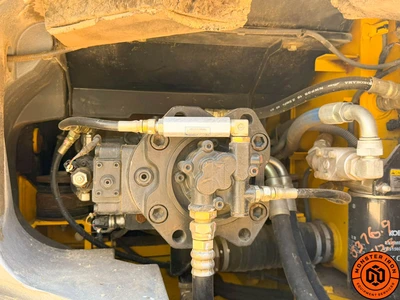

Pump Type: Two variable displacement pumps + one gear pump
Maximum Discharge Flow: 2 × 58.1 gpm + 5.3 gpm
Relief Valve – Boom, Arm and Bucket: 4,975 psi
Relief Valve – Power Boost: 5,468 psi
Relief Valve – Travel Circuit: 4,975 psi
Relief Valve – Swing Circuit: 4,134 psi
Relief Valve – Control Circuit: 725 psi
Pilot Control Pump: Gear type

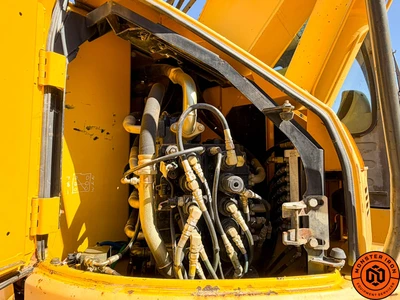

Main Control Valves: 8-spool
Oil Cooler: Air-cooled type

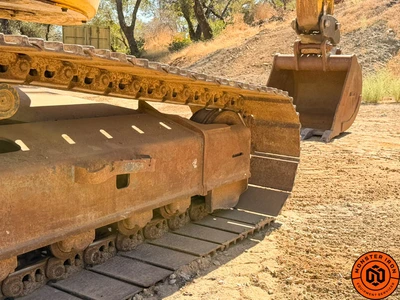

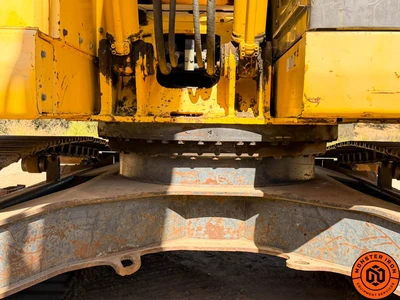

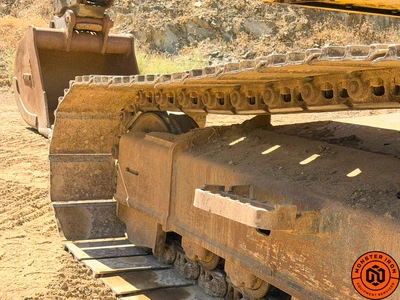

[Swing and Travel System]
Swing Motor: Axial piston motor
Swing Brake: Hydraulic; automatically locks when swing lever is neutral
Parking Brake: Hydraulic brake
Swing Speed: 11.8 rpm
Tail Swing Radius: 5 ft 8.1 in
Minimum Front Swing Radius: 6 ft 4.0 in

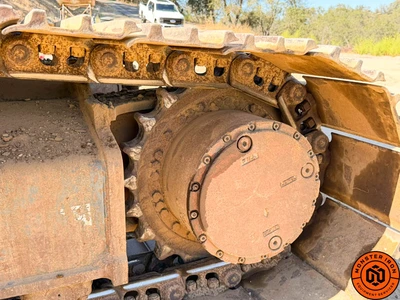

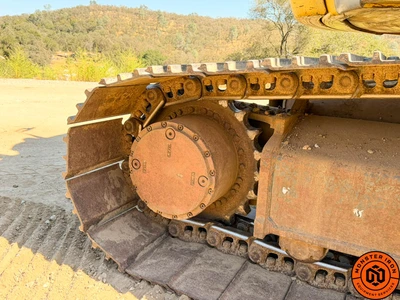

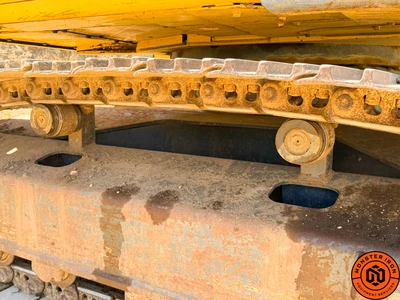

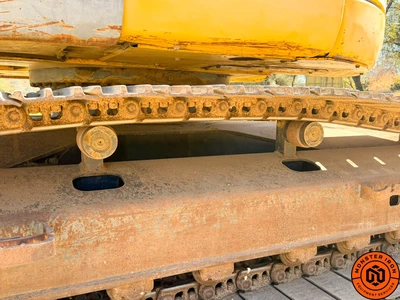

Travel Motors: 2 × axial-piston, two-step motors
Travel Brakes: Hydraulic brake per motor
Parking Brakes: Oil disc brake per motor
Travel Shoes: 47 each side – SK235SR / 51 each side – SK235SRLC
Travel Speed: 3.4 / 2.1 mph
Drawbar Pulling Force: 54,674 lbf
Gradeability: 70% / 35°

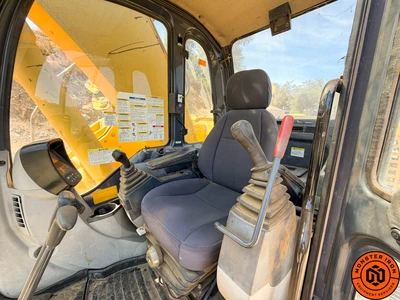

[Cab and Controls]
Cab: All-weather, sound-suppressed steel cab on silicon-sealed viscous mounts with heavy insulated floor mat
Travel Controls: Two hand levers and two foot pedals
Excavating and Swing Controls: Two hand levers
Engine Throttle: Electric rotary type
In-Cab Noise Reduction: Reduced by 4 dB compared with previous SK235SR
Monitor Display: Maintenance information, self-diagnostics, breakdown history and 16 language choices

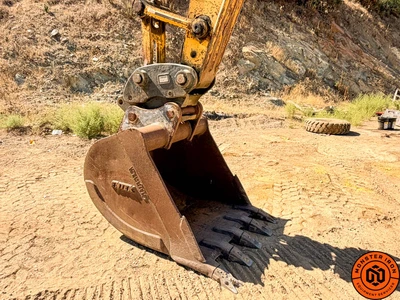

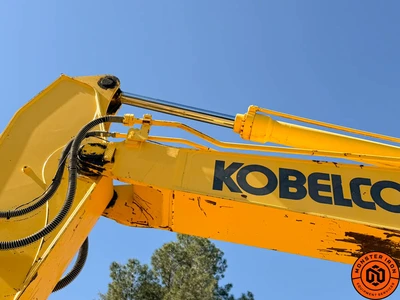

[Boom, Arm and Bucket]

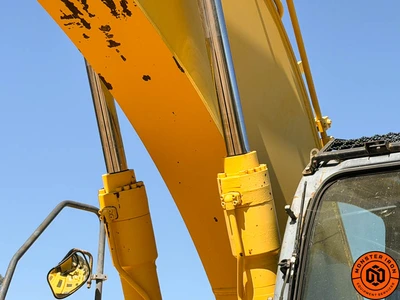

Boom Cylinder: 4.9 in × 52.0 in
Arm Cylinder: 5.3 in × 62.5 in
Bucket Cylinder: 4.7 in × 42.5 in
Bucket Capacity Range: 0.67–1.22 yd³ ISO heaped
Standard Bucket Capacity: 1.05 yd³ ISO heaped
[Refill Capacities]
Fuel Tank: 87.2 gal
Cooling System: 5.8 gal
Engine Oil: 5.4 gal
Travel Reduction Gear: 2 × 1.2 gal
Swing Reduction Gear: 1.8 gal
Hydraulic Oil Tank: 30.1 gal tank oil level
Hydraulic System: 60.8 gal hydraulic system
[Working Ranges – 5.65 m Boom]
Maximum Digging Reach – Short Arm: 30 ft 8.9 in
Maximum Digging Reach – Standard Arm: 32 ft 3.8 in
Maximum Digging Reach – Long Arm: 33 ft 7.1 in
Maximum Digging Reach at Ground – Short Arm: 30 ft 1.4 in
Maximum Digging Reach at Ground – Standard Arm: 31 ft 9.1 in
Maximum Digging Reach at Ground – Long Arm: 33 ft 0.5 in
Maximum Digging Depth – Short Arm: 20 ft 0.6 in
Maximum Digging Depth – Standard Arm: 21 ft 9.8 in
Maximum Digging Depth – Long Arm: 23 ft 1.2 in
Maximum Digging Height – Short Arm: 35 ft 6.0 in
Maximum Digging Height – Standard Arm: 36 ft 9.3 in
Maximum Digging Height – Long Arm: 37 ft 10.7 in
Maximum Dumping Clearance – Short Arm: 26 ft 0.6 in
Maximum Dumping Clearance – Standard Arm: 27 ft 4.0 in
Maximum Dumping Clearance – Long Arm: 28 ft 5.3 in
Minimum Swing Radius – Standard Arm: 6 ft 4.0 in
[Digging Forces]
Bucket Digging Force: 32,810 lbf
Bucket Digging Force with Power Boost: 35,295 lbf
Arm Crowding Force – Short Arm: 27,202 lbf
Arm Crowding Force – Standard Arm: 22,930 lbf
Arm Crowding Force – Long Arm: 21,490 lbf
Arm Crowding Force with Power Boost – Short Arm: 29,900 lbf
Arm Crowding Force with Power Boost – Standard Arm: 25,179 lbf
Arm Crowding Force with Power Boost – Long Arm: 23,674 lbf
[Dimensions]
Overall Length – SK235SR, Standard Arm: 28 ft 10.1 in
Overall Length – SK235SRLC, Standard Arm: 29 ft 5.5 in
Overall Height to Top of Boom – Standard Arm: 10 ft 4.4 in
Overall Width of Crawler – SK235SR: 9 ft 9.7 in
Overall Width of Crawler – SK235SRLC: 10 ft 5.6 in
Overall Height to Top of Cab: 10 ft 4.4 in
Rear-End Ground Clearance: 3 ft 5.3 in
Ground Clearance: 17.9 in
Tail Swing Radius: 5 ft 8.1 in
Tumbler Distance – SK235SR: 11 ft 4.6 in
Tumbler Distance – SK235SRLC: 12 ft 7.6 in
Overall Crawler Length – SK235SR: 13 ft 11.7 in
Overall Crawler Length – SK235SRLC: 15 ft 2.7 in
Track Gauge – SK235SR: 7 ft 10.1 in
Track Gauge – SK235SRLC: 8 ft 6.0 in
Shoe Width: 23.6 / 27.6 / 31.5 in
Upperstructure Width: 9 ft 10.1 in
[Operating Weight and Ground Pressure]
SK235SR with 600 mm Shoes: 53,131 lb / 7.7 psi
SK235SRLC with 600 mm Shoes: 54,454 lb / 7.1 psi
SK235SR with 700 mm Shoes: 53,572 lb / 6.5 psi
SK235SRLC with 700 mm Shoes: 55,116 lb / 6.1 psi
SK235SR with 800 mm Shoes: 54,234 lb / 5.8 psi
SK235SRLC with 800 mm Shoes: 55,777 lb / 5.5 psi
