USED Siemens HF363

ITEM SPECIFICS
Brand: Siemens
Model / Catalog No.: HF363
Product Type: Heavy Duty Fusible Safety Switch / Disconnect
Series: VBII Heavy Duty
Current Rating: 100A
Maximum Voltage: 600V AC / 600V DC
Poles: 3
Wires: 3
Fuse Type: Fusible
Enclosure: NEMA Type 1 / Indoor
Included Fuses: Littelfuse POWR-GARD FLSR100
Fuse Rating: 100A
Fuse Class: UL Class RK5
Fuse Type: Dual-element, time-delay, current-limiting
Fuse Voltage: 600VAC / 300VDC
Condition: Pre-Owned
MANUFACTURER / TECHNICAL SPECIFICATIONS
The Siemens HF363 is a heavy-duty, 3-pole, 3-wire fusible safety switch rated for 100A and up to 600V. Siemens documentation for the HF363 family confirms the 100A, 600V configuration.
Switch Specifications:
100A maximum rating
600VAC maximum
600VDC maximum
3-pole / 3-wire
Fusible design
Heavy-duty safety switch
NEMA Type 1 indoor enclosure
Visible-blade disconnect design
Suitable for commercial and industrial disconnect applications
Siemens documentation shows horsepower ratings depend upon voltage, phase and whether standard or time-delay fuses are installed. With time-delay fuses, the 100A platform can support ratings up to 75 HP at 600VAC three-phase, subject to the exact installation and applicable electrical requirements.
Included Littelfuse FLSR100 Specifications:
Manufacturer: Littelfuse
Series: POWR-GARD FLSR
Part Number: FLSR100
Amp Rating: 100A
Fuse Class: UL Class RK5
Type: Dual-element time-delay
AC Voltage Rating: 600VAC
DC Voltage Rating: 300VDC
AC Interrupting Rating: 200kA RMS symmetrical
DC Interrupting Rating: 20kA
Current Limiting: Yes
Typical Applications: service entrance switches, transformers, switchboard mains/feeders, motor circuits and general-purpose circuits.
CONDITION DESCRIPTION

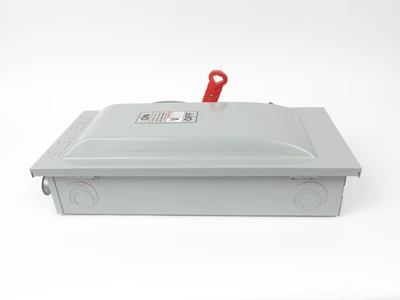

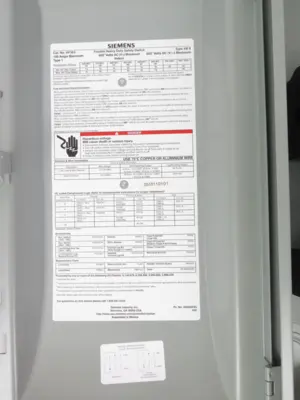

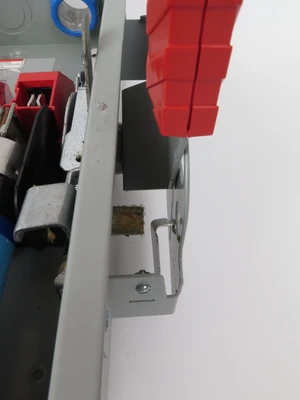

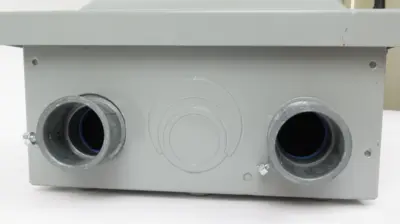

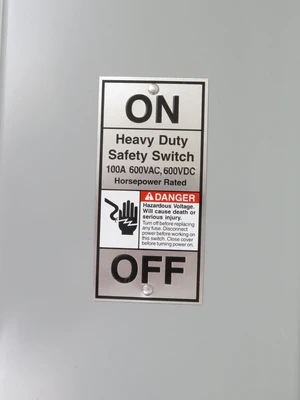

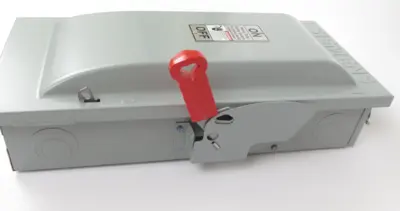

Pre-owned Siemens HF363 heavy-duty fusible safety switch in good used condition with light signs of previous installation and use. Unit includes Littelfuse POWR-GARD FLSR100 100A fuses installed as shown. Exterior and components may show light cosmetic marks, scuffs, dust, or other evidence of prior use. No operational testing has been stated, so this unit is not being represented as tested working. Please review all photos carefully for exact cosmetic condition, configuration, labels, fuses, and included components.
LISTING DESCRIPTION

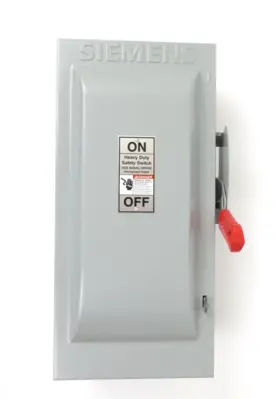

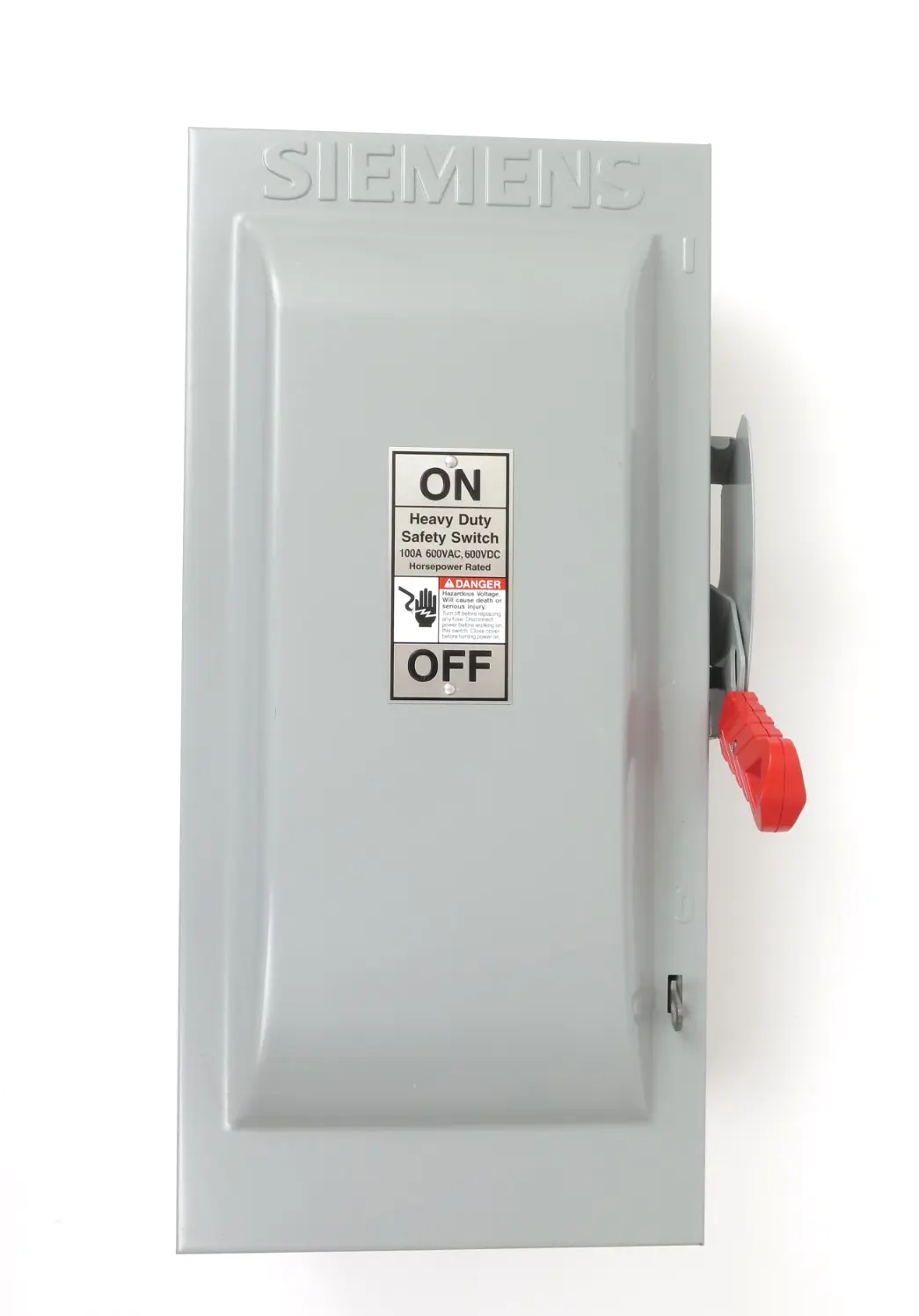

Siemens HF363 Heavy Duty Fusible Safety Switch, designed for commercial and industrial electrical disconnect and circuit-protection applications.
The HF363 is a 100-amp, 600-volt, 3-pole / 3-wire fusible safety switch housed in a NEMA Type 1 indoor enclosure. Siemens' heavy-duty safety switches are intended for demanding applications requiring a manually operated disconnect combined with fuse-based overcurrent protection.

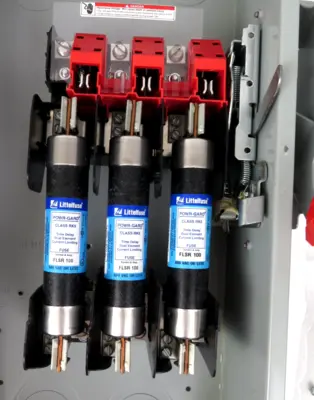

This unit is equipped with Littelfuse POWR-GARD FLSR100 fuses. These are 100A, 600VAC UL Class RK5 dual-element time-delay, current-limiting fuses designed for applications including service equipment, feeders, transformers and motor circuits. Littelfuse
The switch was previously used and shows light signs of installation and use. No operational testing has been stated.
KEY FEATURES
Siemens HF363
Heavy-duty fusible safety/disconnect switch
100A rating
Up to 600V
3-pole / 3-wire
NEMA Type 1 indoor enclosure
Industrial/commercial application
Includes Littelfuse FLSR100 fuses
100A Class RK5 fuses
Dual-element time-delay fuse design
Current-limiting fuses
Pre-owned with light signs of use
INCLUDED

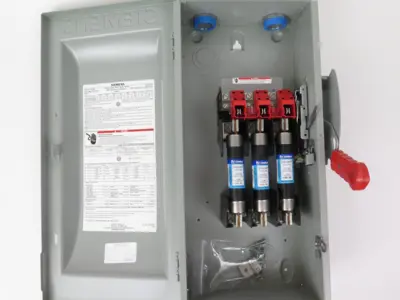

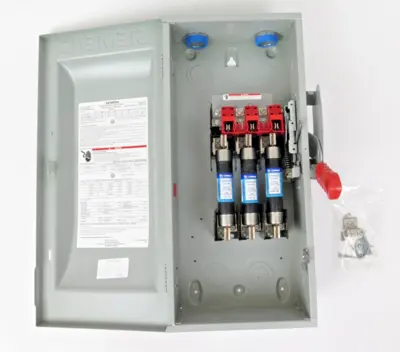

Siemens HF363 heavy-duty fusible safety switch with Littelfuse POWR-GARD FLSR100 100A fuses installed, as pictured. Only items shown in photos are included.
