USED McBain McBain ZIII

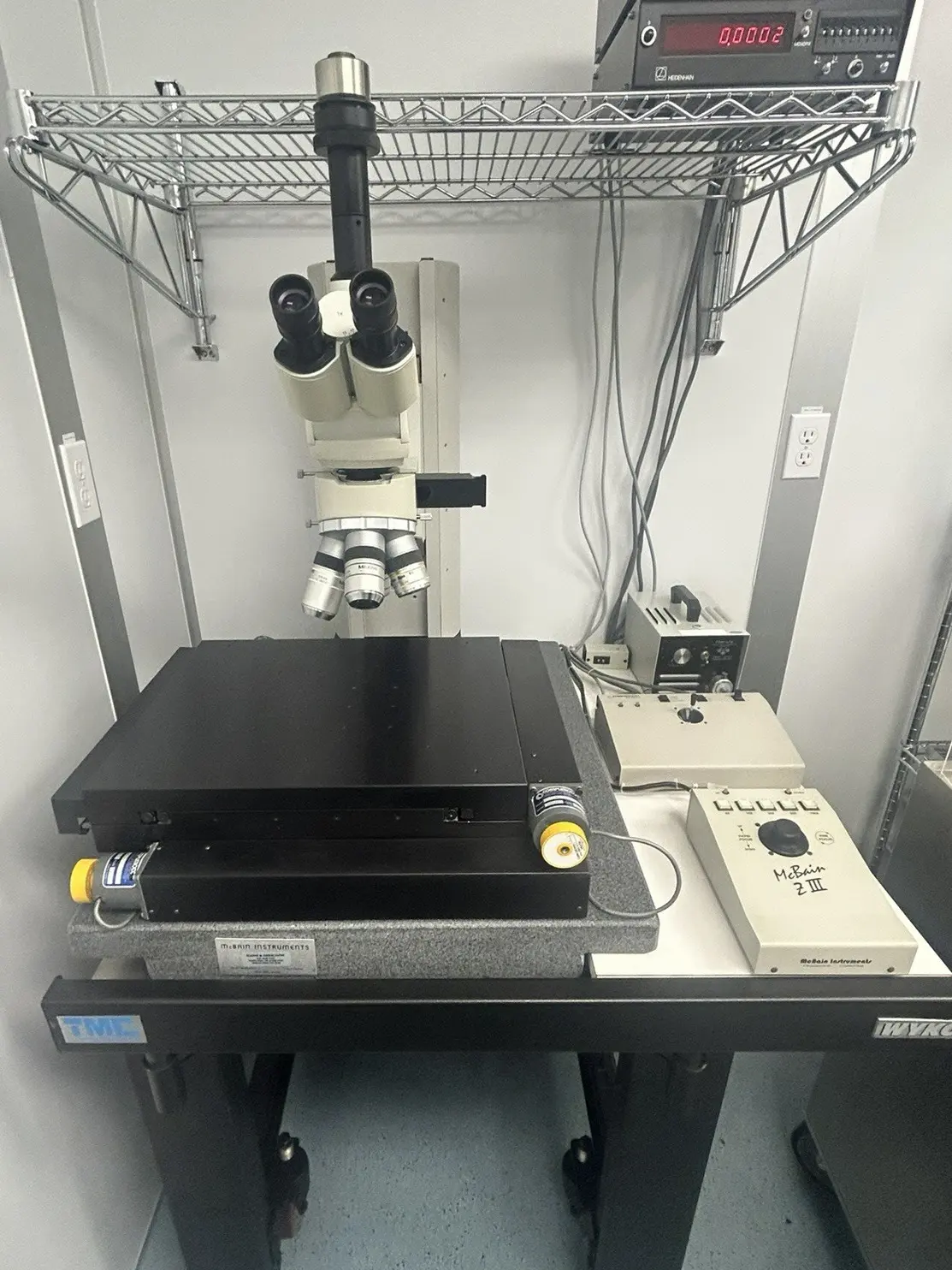

McBain ZIII w/ Motorized XYZ Metrology Microscope TMC Isolation Heidenhain DRO
Complete precision optical inspection and metrology workstation with motorized XYZ positioning, three-axis digital position readout, powered microscope focus control, fiber-optic illumination, precision stone base, and TMC vibration-isolation table.
Designed for high-precision non-contact inspection, dimensional measurement, semiconductor and wafer inspection, die inspection, tooling inspection, failure analysis, and other laboratory or industrial metrology applications.
Specifications
Brand: McBain Systems
Model: ZIII / Z III
Type: Precision Optical Inspection / Metrology Workstation

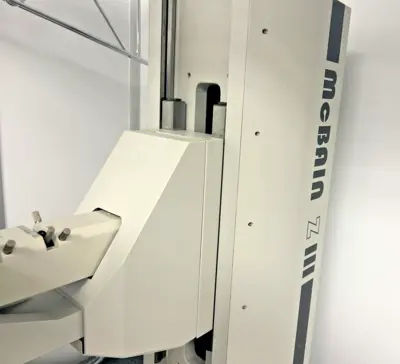

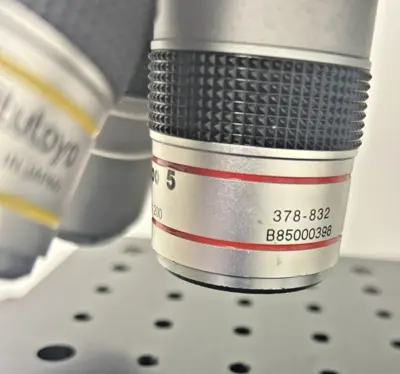

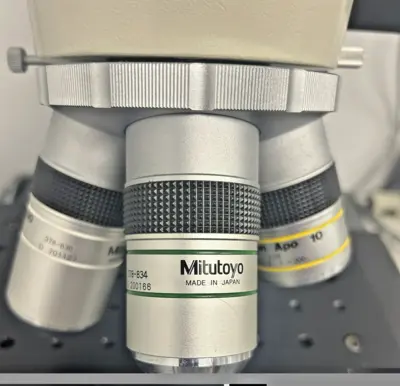

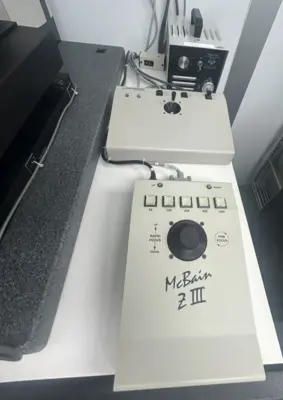

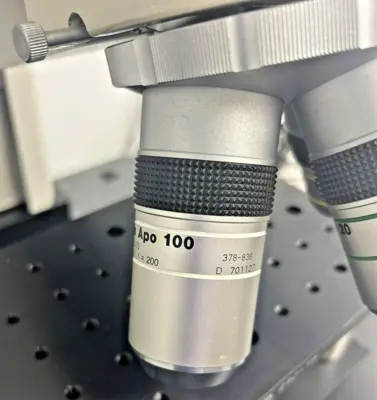

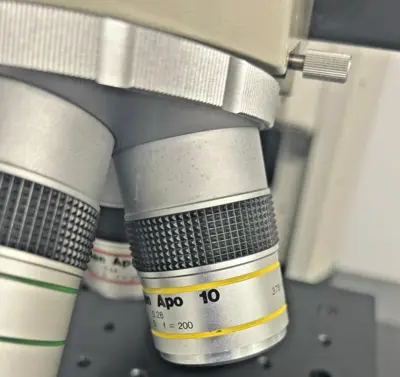

Microscope: McBain ZIII microscope assembly - Powered microscope focus controller - Controller includes focus buttons and fine-focus adjustment knob - 4 objectives included: 5x, 10x, 20x, 100x

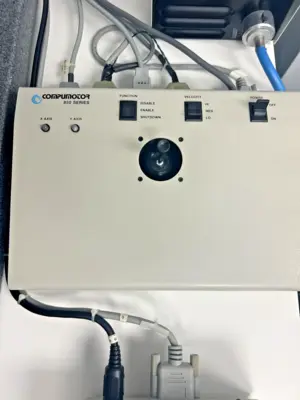

Positioning System: Motorized XYZ precision positioning stage - Compumotor 850-Series motion-control hardware - Smooth powered X, Y, and Z axis movement - Precision positioning table mounted above stone base

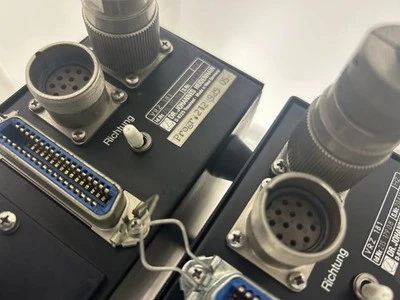

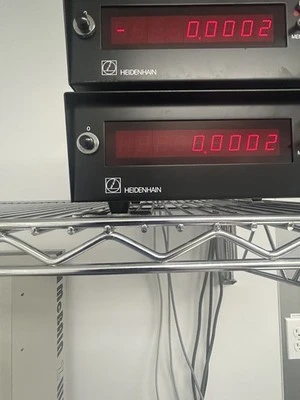

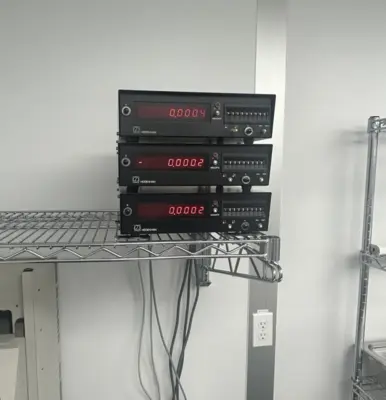

Position Readout: 3x Heidenhain VRZ 181 digital position readouts - Dedicated readout for three-axis positioning - Live position values verified during stage movement

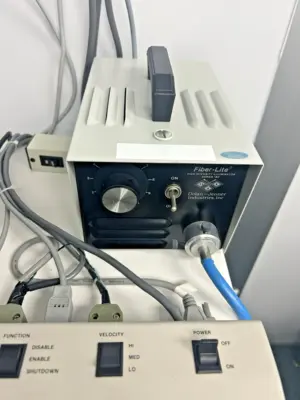

Illumination: - Fiber-Lite Model 180 fiber-optic illuminator - 150 W quartz-halogen light source - Variable illumination intensity - Designed for low noise and vibration near high-magnification microscope applications

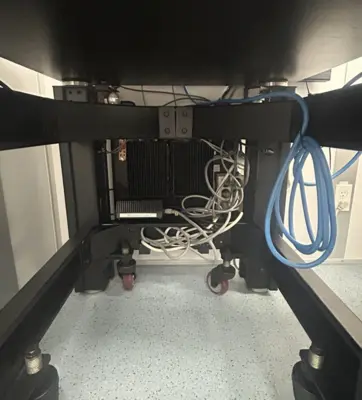

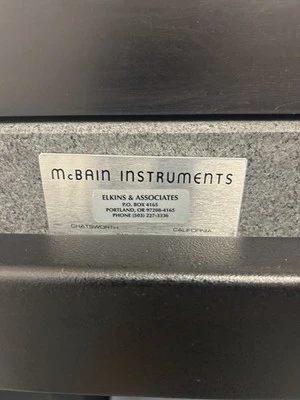

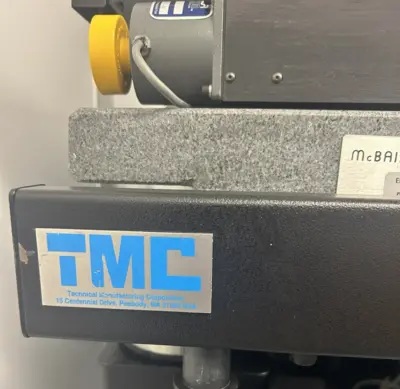

Support / Isolation: McBain precision marble / stone metrology base - TMC vibration-isolation table supporting complete workstation
Dimensions
60.0" x 40.0" x 80.0" (700 lbs)
Comes from a professional working environment. Pulled from a operational clean room in perfect working condition. Pre-owned complete system in good working condition with little to no cosmetic wear. This system has been functionally tested in its assembled configuration. The motorized XYZ positioning stage operates smoothly through the installed motion controls. All three Heidenhain VRZ 181 position readouts power on and display live changing position values as the respective axes are moved. The McBain microscope system is functional, including the powered focus controls and fine-focus adjustment. The included Fiber-Lite 180 illuminator operates properly and provides illumination to the microscope system. See pictures. See description for full specs.
