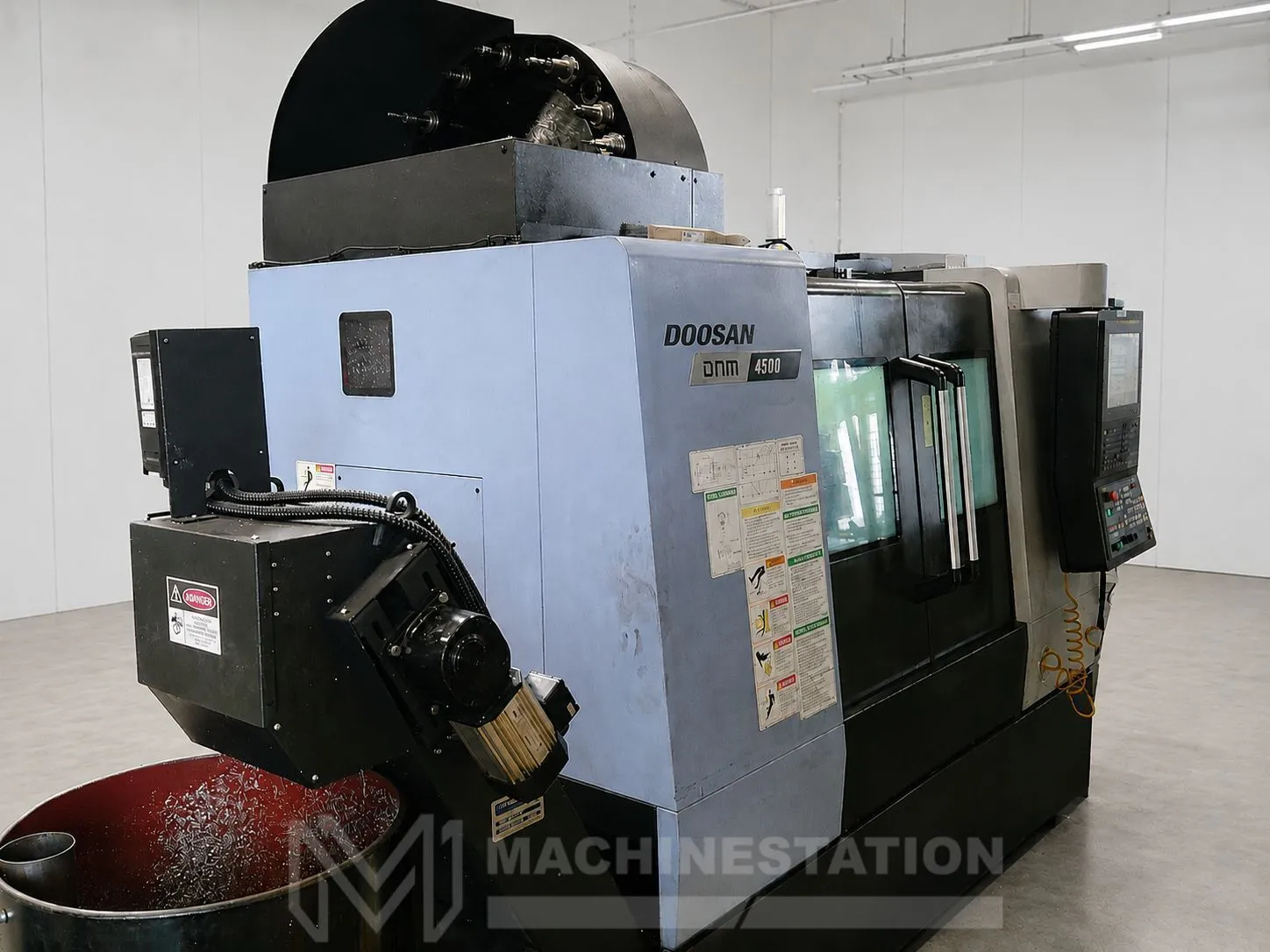

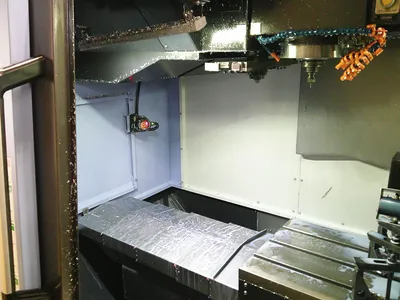

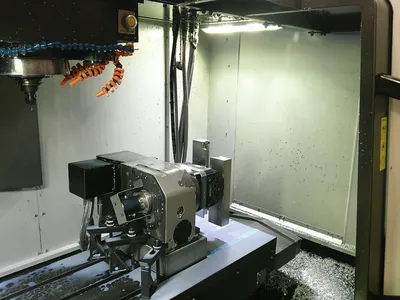

USED 2021 DOOSAN DNM 4500

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

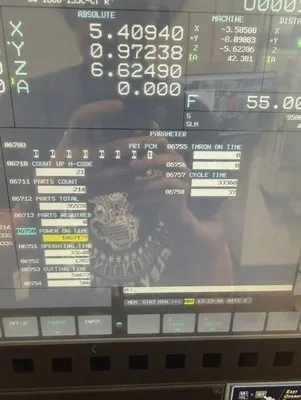

Doosan-Fanuc CNC Control
1417 IPM Fast Rapids Traverse Rate
Coolant Tank

Travels:
X-Axis: 31.5″
Y-Axis: 17.7″
Z-Axis: 20.1″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″

Table:
Length: 39.4″
Width: 17.7″
Number of Std T-Slots: 3
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 1322 lbs

Spindle:
Taper Size: 40
Speed Range: 8000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.2 Seconds

General:

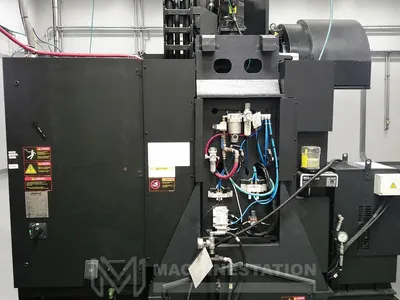

Air Required: 80 psi, 4 scfm

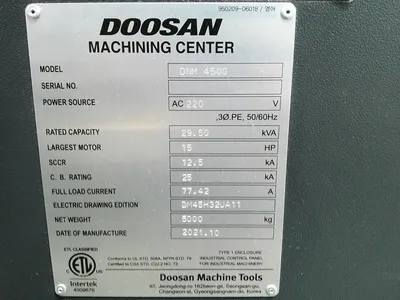

Power: 220v / 29.5 kva / 3-Phase
Overall Dimensions: 103″ x 85″ x 117.5″ High
Weight: 11,023 lbs
