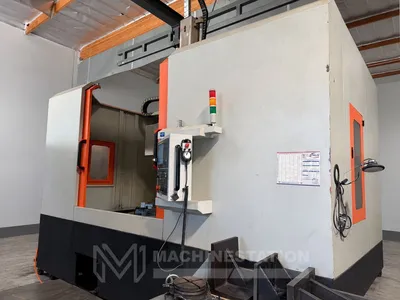

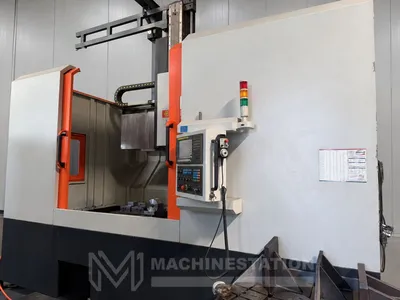

USED 2020 DMTC CGK5112JD

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

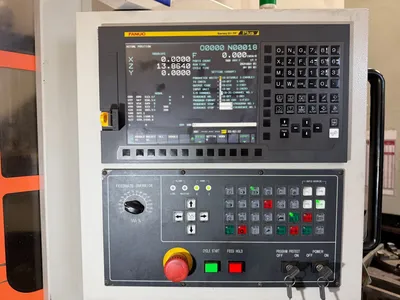

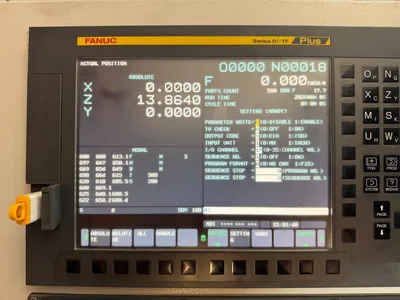

Fanuc Series 0i-TF Plus CNC Control

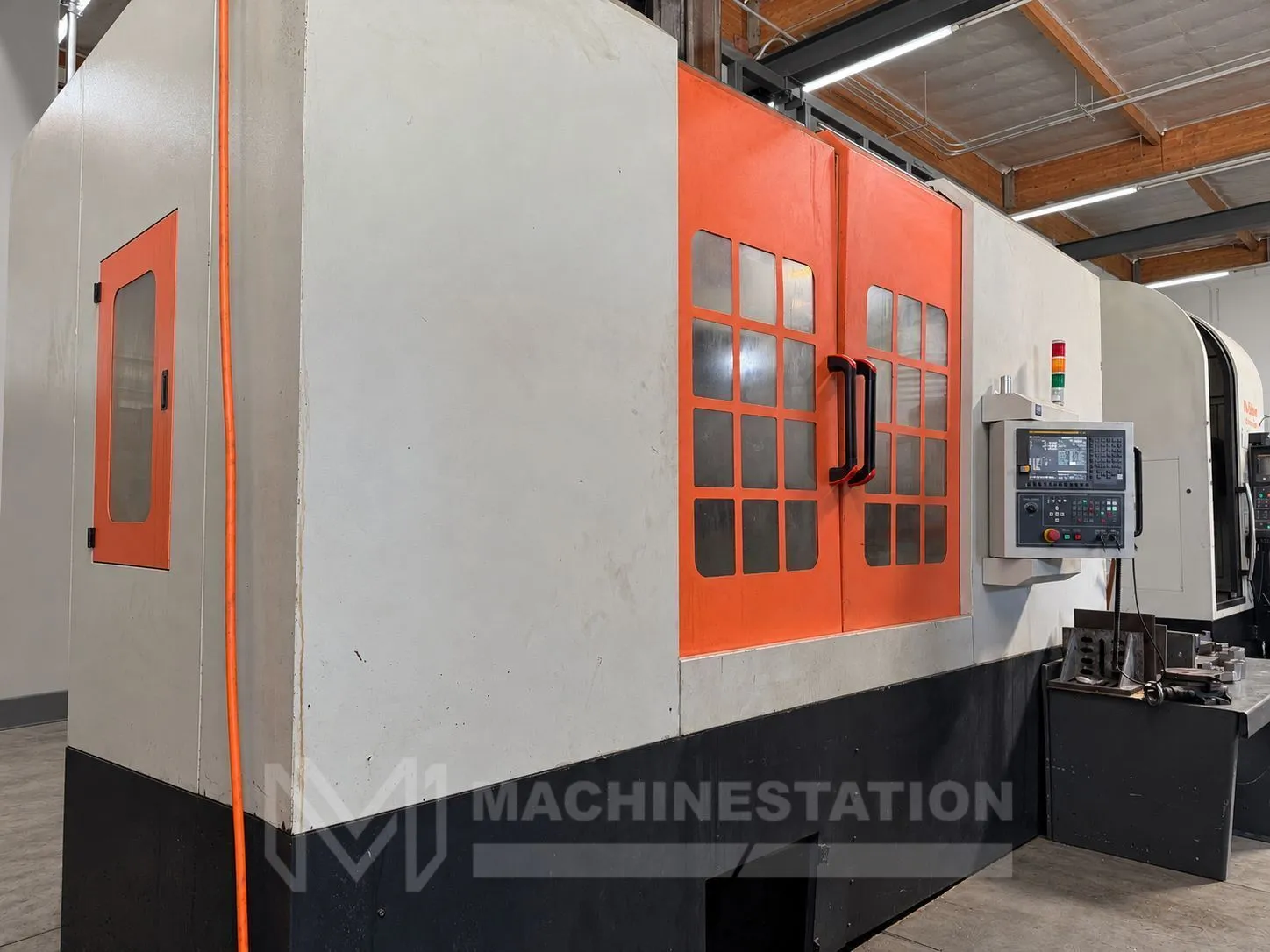

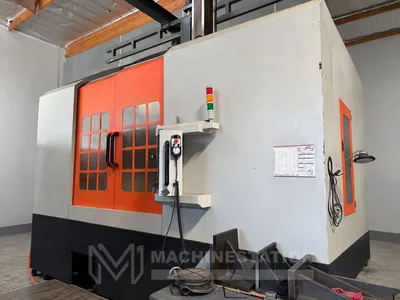

Heavy-duty vertical turning lathe design
Automatic Lubrication Unit

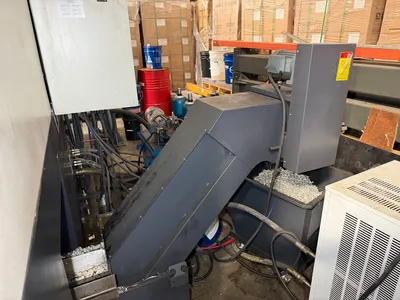

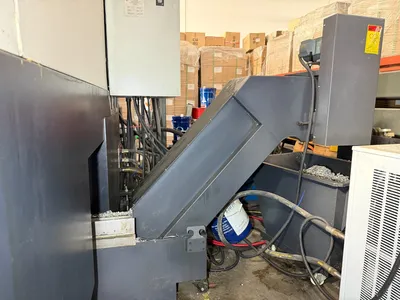

Coolant Tank

Capacity:
Maximum Machining Diameter: 47.24″
Maximum Machining Height: 39.37″
Maximum Swing Diameter: 47.24″
Maximum Workpiece Weight: 11,023 lbs

Travels:
X-Axis Travel: 27.55″
Z-Axis Travel: 31.49″
Rapid Traverse (X/Z): ~196.85 IPM
Cutting Feedrate: 0.0039 - 78.74 IPM

Table:

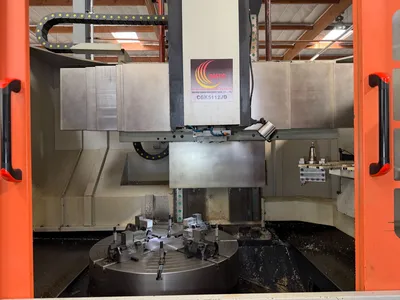

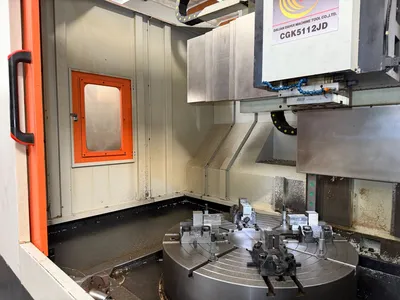

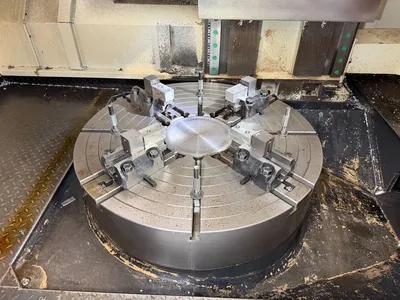

Chuck Diameter: 39.37″
Max Torque: 30,000 N.m
Max Weight on Table: 11,023 lbs

Spindle:
Spindle Speed: 400 RPM
Spindle Motor: 29.5 HP
Spindle Type: Gear Driven (Two Gears, Stepless)

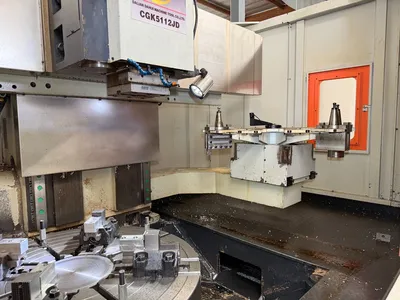

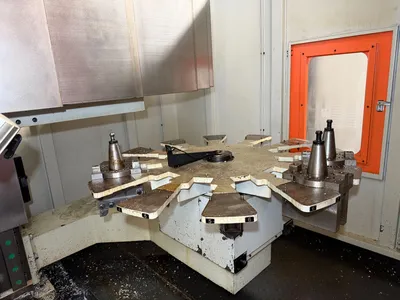

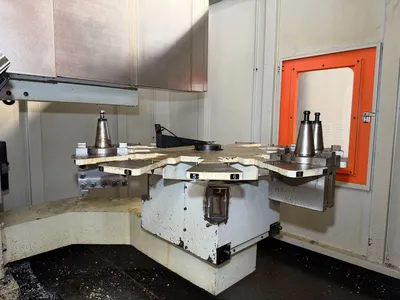

Automatic Tool Changer:
Capacity: 8 Stations

General:
Power: 220V / 3-Phase / 60Hz
Floor Dimensions: L 156″ x W 156″
Weight: 24,251 lbs. Approx.
