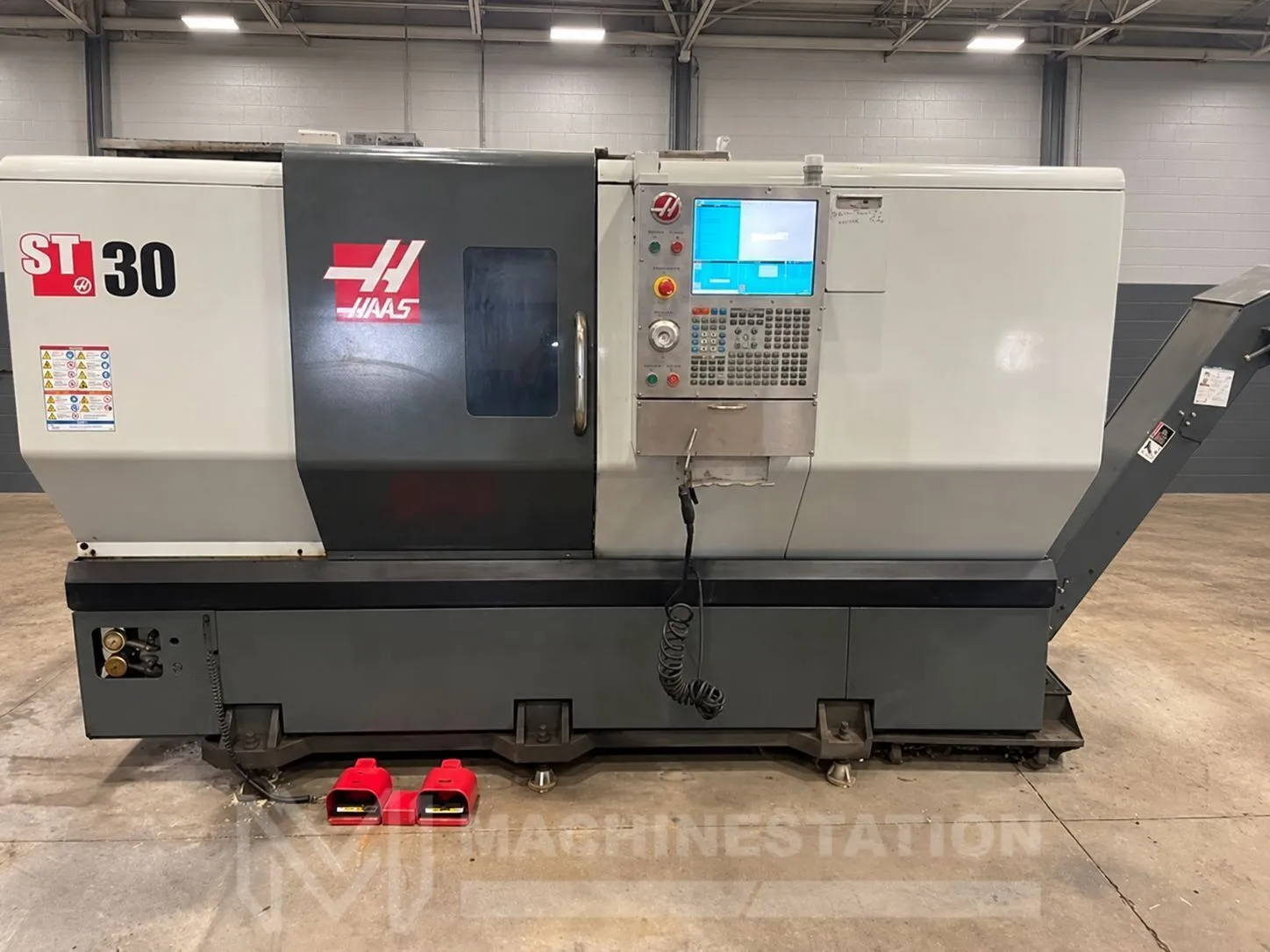

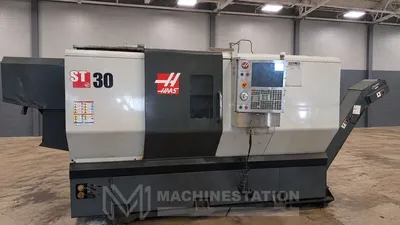

USED 2013 HAAS ST-30

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

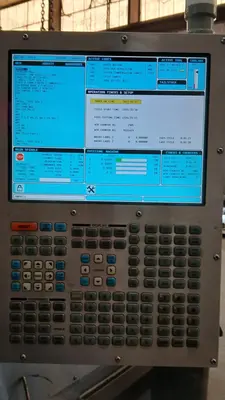

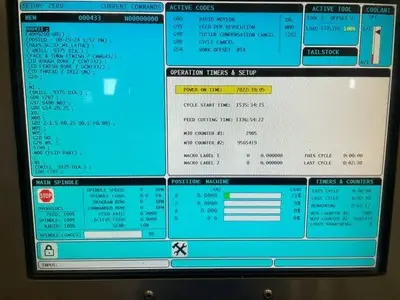

Haas CNC Control
12 Station Automatic Turret
A2-6 Spindle, 3200 RPM Spindle
3.5 inch Big Bore Spindle
Rigid Tapping

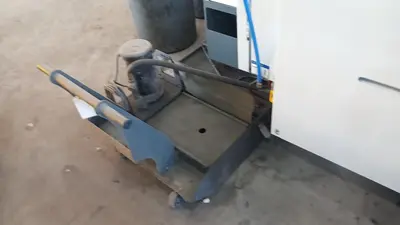

Coolant Tank

Capacity:
Max Turning Diameter : 15.0 inch
Max Swing Over Bed : 21.0 inch
Max Turning Length: 32.5 inch
Max Bar Capacity : 3.0 inch
Distance Between Centers : 32.5 inch

Travels:
X Axis Travel : 9.4 inch
Z Axis Travel : 32.5 inch
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5 inch
Spindle Speed: 3200 RPM
Spindle Motor: 30 HP

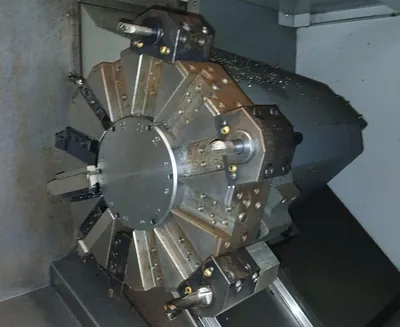

Turret:
Turret Capacity: 12 Stations
Turret Type: Bolt-On Tool Turret

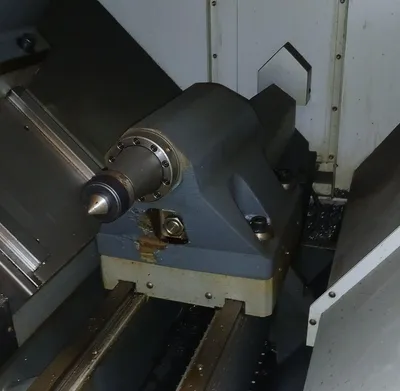

Tailstock:
Tailstock Taper: MT-4
Tailstock Type: Programmable

General:
Air Required: 100 psi 4 scfm

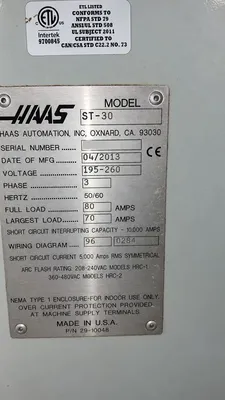

Power Source: AC 195v-260v / 3-Phase / 60 Hz
Machine Dimensions: 170 inch x 90 inch x 98 inch High Approx.
Machine Weight: 10,900 lbs Approx.
